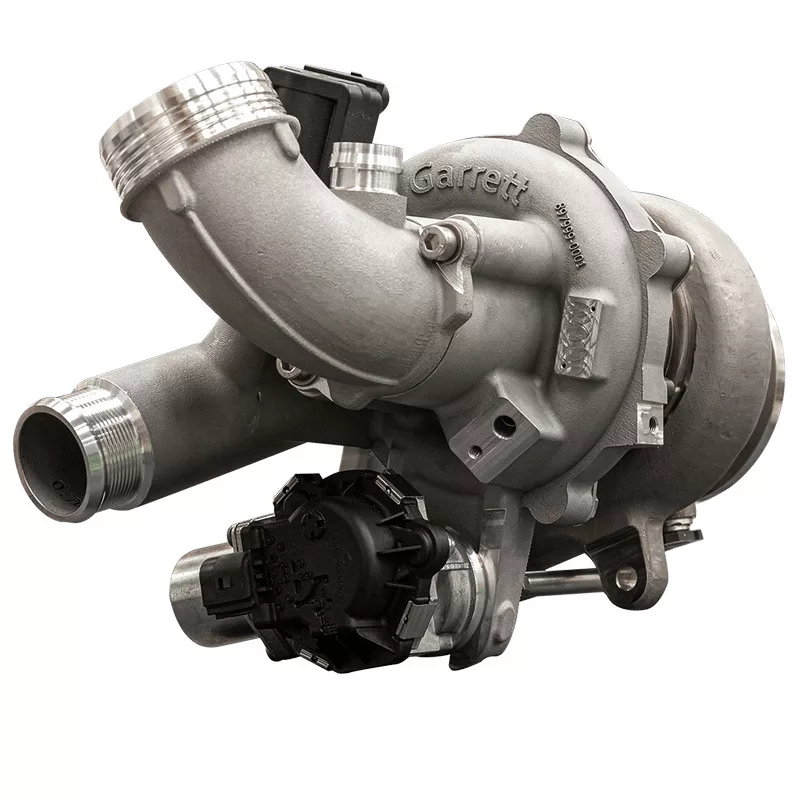

Key Features & Benefits – Garrett GT2260S PowerMax Stage 1 turbocharger for EA888 Gen.3 MQB 1.8 TSI / 2.0 TSI

The Garrett GT2260S PowerMax Stage 1 turbocharger for EA888 Gen.3 MQB 1.8 TSI / 2.0 TSI engines is a bolt-on solution designed to retain OEM-style connection points. It is intended for MQB EA888 Gen.3 applications, and fitment should be confirmed by engine and platform layout.

The assembly includes a calibrated electronic wastegate actuator, a machined speed sensor port, a GTX Gen II milled, forged compressor wheel, and a MAR-M turbine wheel. The stated targets include +17% flow vs a standard IS38, with a stainless turbine housing rated to 1,050 °C.

When is this useful?

This is useful when you want an MQB EA888 Gen.3 turbo upgrade that stays close to the factory installation layout while adding airflow headroom. Stage 1 target capability is up to 485 hp with appropriate supporting hardware and tuning.

Technical specs

• Brand: Garrett
• Series: PowerMax
• Turbine family: GT2260S
• Configuration: Stage 1, bolt-on turbocharger
• Engine platform: EA888 Gen.3 (MQB), 1.8 TSI / 2.0 TSI
• Target capability: up to 485 hp
• Flow: +17% vs a standard IS38
• Compressor wheel: GTX Gen II, milled & forged
• Turbine wheel material: MAR-M alloy
• Turbine housing: stainless steel, 1,050 °C rating
• Actuator: calibrated electronic wastegate actuator
• Bearing system: journal bearing, 360° thrust bearing
• Max turbo speed: 185,000 rpm
• Rotation: reverse (left)
• Extra port: speed sensor port
• Compatible applications (examples, EA888 Gen.3 MQB):
  Audi
  – TT (8S) 2.0 TFSI – OE turbo: IS20
  – A3 (8V) 2.0 TFSI – OE turbo: IS20
  – S3 (8V) 2.0 TFSI – OE turbo: IS38
  – TTS (8S) 2.0 TFSI – OE turbo: IS38
  Volkswagen
  – Golf VII 1.8 TSI – OE turbo: IS12
  – Golf VII Alltrack 1.8 TSI – OE turbo: IS12
  – Golf VII GTI 2.0 TSI – OE turbo: IS20
  – Golf VII R 2.0 TSI – OE turbo: IS38
  Skoda
  – Octavia RS (5E) EA888 Gen.3 MQB (compatible application)
  Seat
  – Leon Cupra (5F) EA888 Gen.3 MQB (compatible application)

Selection & installation tips

• Engine & platform: confirm EA888 Gen.3 and MQB layout (1.8 TSI / 2.0 TSI) before ordering.
• Current turbo ID: if your car is based on IS12/IS20/IS38, verify your current turbo code and connection layout for a clean match.
• Connection points: compare inlet, downpipe side, and hose/pipe interfaces to your existing setup before final assembly.
• Actuator wiring: verify the electronic actuator connector and keep the harness routed away from heat sources.
• Oil & coolant circuits: inspect lines, seals, and lubrication cleanliness during installation.

To ensure correct fit, always verify engine/platform match, connection points, and available space against the technical specs above and your vehicle’s current turbo and piping interfaces.
