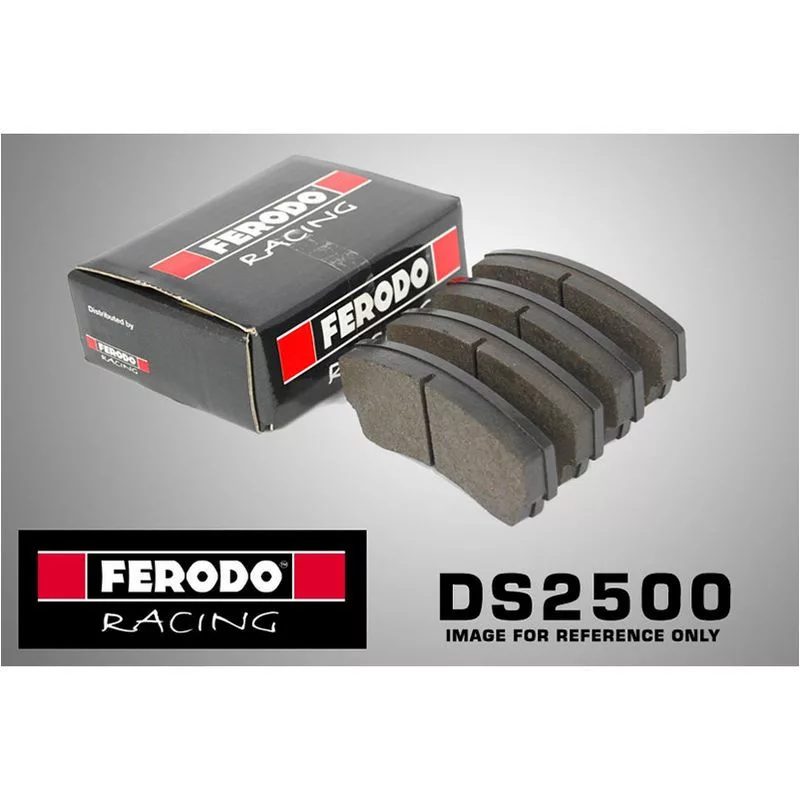

Ferodo DS2500 rear brake pad set for Honda Civic Type-R EP3 01-06

Key Features & Benefits – Ferodo DS2500 rear brake pads

Ferodo DS2500 rear brake pads are a pad set developed for repeatable pedal feel and controllable braking under higher load. This kit is for the rear axle and uses the FCP956 pad shape.

Applications include Honda Civic Type-R EP3 01-06, plus Acura Legend, Acura RDX, Acura RL, Fiat Sedici, Honda Accord, Honda Civic, Honda CR-V, Honda CR-Z, Honda Crosstour, Honda Element, Honda FR-V, Honda Insight, Honda Integra, Honda Jazz, Honda Legend, Honda Odyssey, Honda Prelude, Honda S2000, Honda Shuttle, Honda Stepwgn, Honda Stream, MG ZR, MG ZS, Mitsubishi L, Rover 600, Suzuki Kizashi, Suzuki Swift, Suzuki SX4.

When is this useful?

Rear axle balance benefits from predictable modulation, especially when the system sees repeated stops and rising temperatures. Ferodo DS2500 rear brake pads deliver their intended feel when disc condition, fluid choice and bedding-in are aligned with the intended use.

Technical specs

• Brand: Ferodo
• Compound: DS2500
• Axle position: Rear

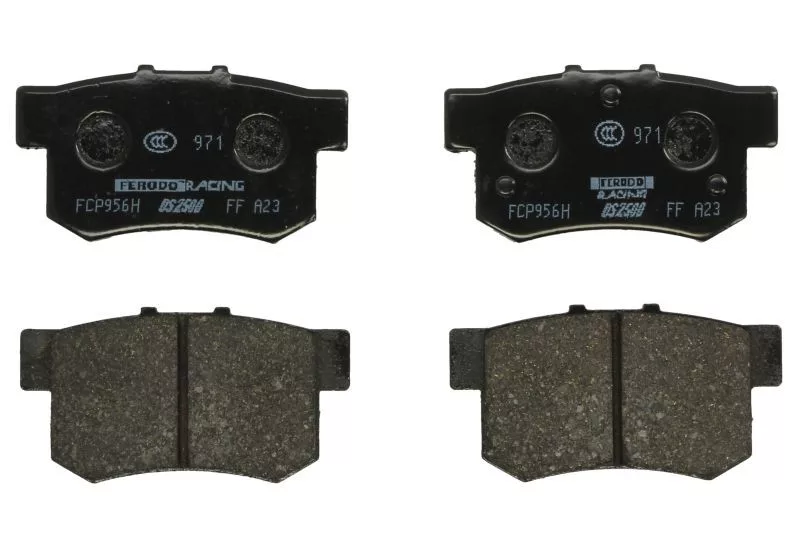

• Pad shape (family shape): FCP956
• Width: 88.8 mm
• Height: 47.5 mm
• Thickness: 14.4 mm
• Use: Track day use
• Packaging: Box
• Part number: FCP956H

Selection & installation tips

• Position check: confirm you are selecting the rear axle pad set.
• Pad shape: match the removed pad outline to the FCP956 shape, focusing on tabs and retaining points.
• Dimensions: measure your old pads and compare to 88.8 × 47.5 × 14.4 mm.
• Hardware condition: inspect sliders, shims and springs so the pads can move freely without sticking.
• Bedding-in: build load progressively during initial use to establish an even transfer layer.

Before ordering and fitting, verify axle position, pad shape, dimensions and the retention design on your caliper, then compare them to the technical specs above to confirm correct fit.
