Key Features & Benefits – EV1–EV6 electrical connector adapter

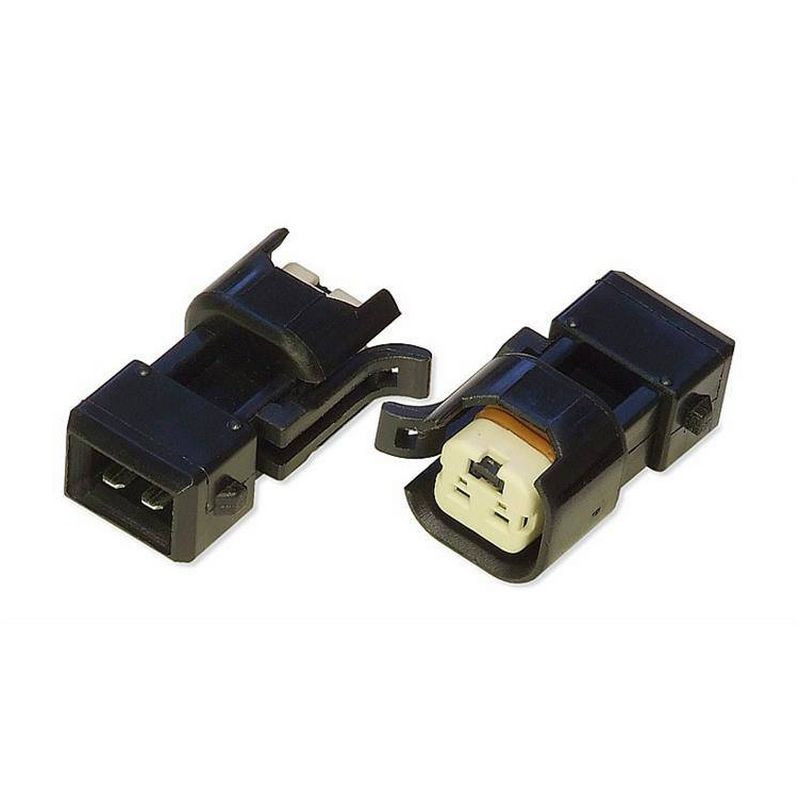

The EV1–EV6 electrical connector adapter is a Bosch conversion piece for electrical interfacing between EV1 and EV6 injector connectors. It is useful when connector types differ, and you want to bridge the harness side and injector side with an adapter.
For reliable use, the focus is on mechanical fit and positive locking, so the connection stays secure under vibration and heat exposure.
When is this useful?
It is useful during injector swaps or wiring changes when you need an EV1–EV6 connector transition and prefer an adapter solution instead of replacing the connectors directly.
Technical specs
- Type: EV1–EV6 electrical connector adapter
- Application: injector connector conversion
Selection & installation tips
- Connector identification: confirm the injector-side and harness-side connector types (EV1 vs EV6) by shape and keying.
- Side orientation: verify which end mates with the harness and which mates with the injector, then confirm by a dry fit.
- Lock engagement: fully seat the latch and check by hand that the connection cannot loosen.
- Strain relief: ensure the wiring is not pulled tight and secure it so it cannot rub or snag.
- Polarity check: after installation, confirm correct wiring polarity using your system’s test points.
Before final installation, verify connector type, keying, and locking on both sides, then match those points to your injector and harness interfaces for proper fitment.
