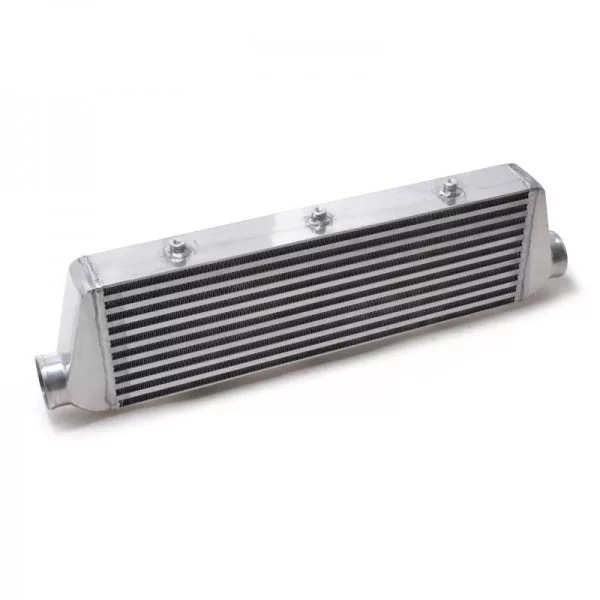

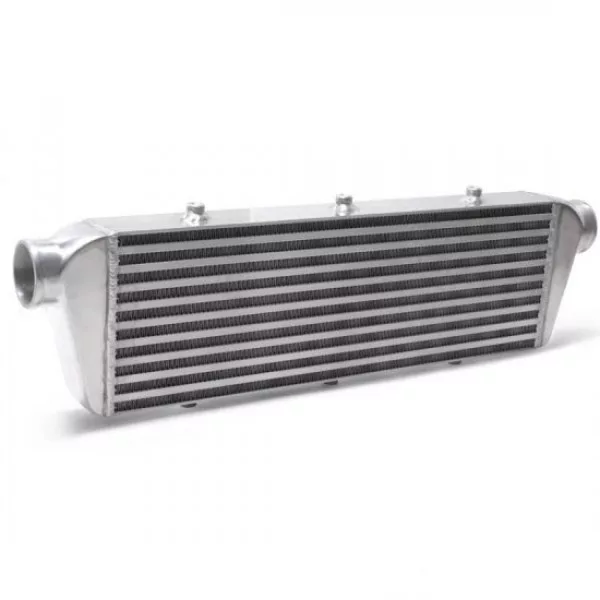

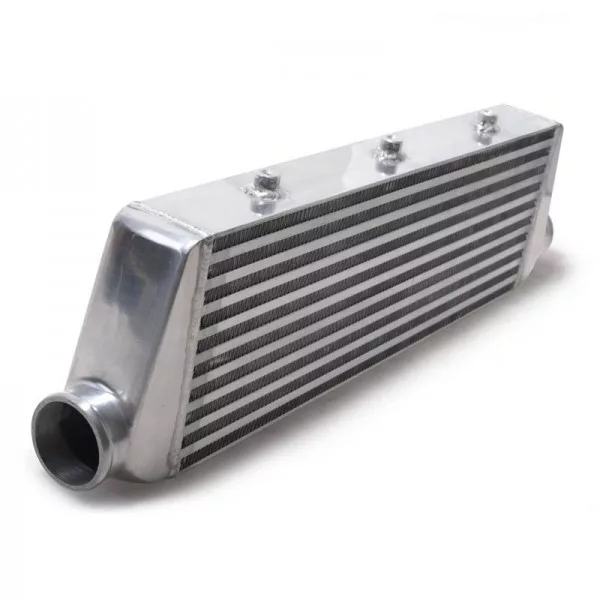

Key Features & Benefits – EPMAN Universal Front Mount Intercooler (550×180×65 mm, 63 mm)
The EPMAN Universal Front Mount Intercooler (550×180×65 mm, 63 mm) is a bar & plate air-to-air intercooler intended for custom turbo setups where mounting and charge piping are fabricated to suit the vehicle.
Its 63 mm (2.5") connections and listed core size make it a practical option when you need a front-mounted cooler and you’re planning the layout around available space, airflow, and piping routes.
When is this useful?
It’s useful when you want to lower charge-air temperature in a turbo system, helping the setup stay more consistent under load with proper ducting, mounting, and leak-free piping.
Technical specs
- Core type: Bar & Plate
- Material: T-6061 aluminum

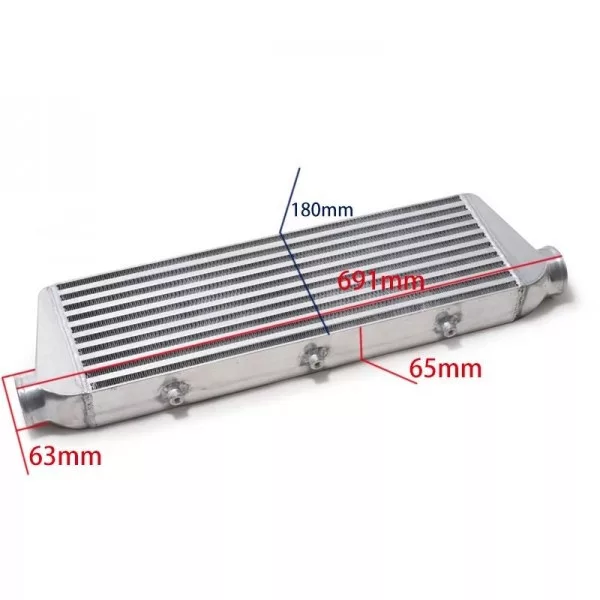

- Core size: 550 × 180 × 65 mm
- Inlet/Outlet: Φ63 mm (2.5")
- Mounting hole thread: M8 × 1.25
- Placement: Front
- Color: Silver
- Weight: 6 kg
- In the box: 1× intercooler (as pictured)
Identifier (P/N): TK-INT005
Selection & installation tips
- Measure space carefully: allow room not only for the 550×180×65 mm core, but also end tanks and inlet/outlet routing.
- Confirm your charge piping matches 63 mm (2.5") connections and choose suitable couplers and clamps.
- Mount the intercooler so it isn’t supported by the pipes; keep safe clearance to bumper supports, radiators, and body panels.
- Prioritize airflow: avoid blocking the core and make sure hot air can exit the area behind it.
- After installation, pressure-test the charge system for leaks (couplers, clamps, fabricated joints).
Before ordering, measure your mounting points and the key installation dimensions (for example hole spacing), then compare them to the product details to ensure correct fitment.
