Key Features & Benefits – EPMAN universal fan mounting kit
The EPMAN universal fan mounting kit is designed for electric radiator fans and transmission coolers. It has a universal layout and is listed as compatible with 7", 9", 10", 12", 14" and 16" fans.

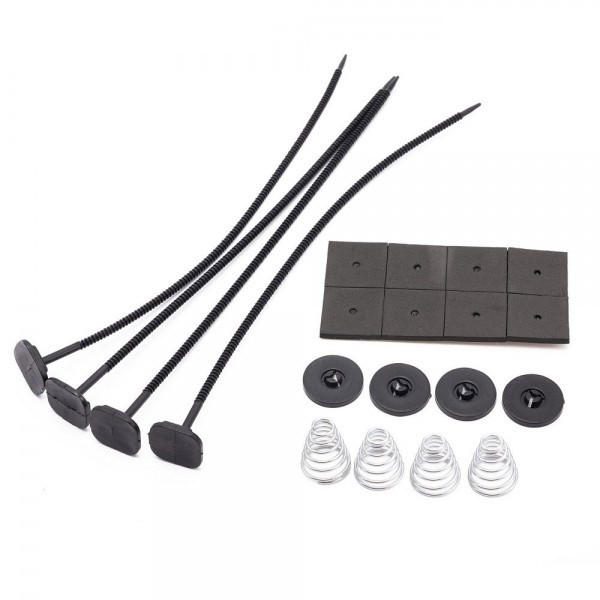

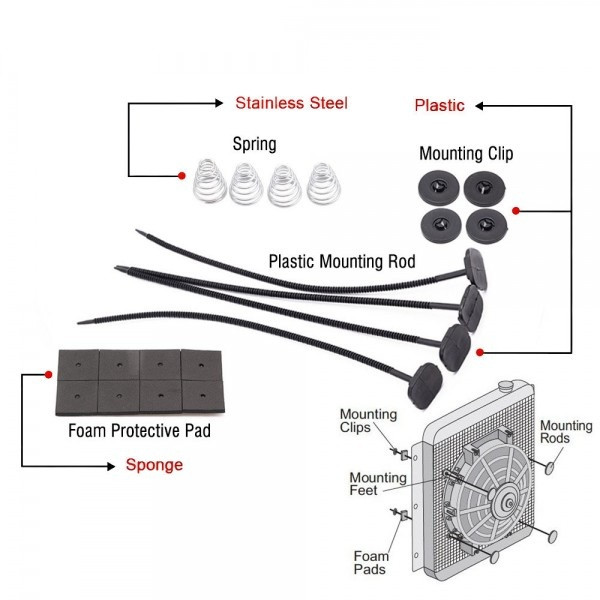

The kit uses plastic push-through mounting hardware, and the package includes mounting rods, foam protective pads, springs and retaining clips. This layout is useful when the fan or cooling accessory needs to be mounted directly to the radiator core in a compact installation area.
When is this useful?
The EPMAN universal fan mounting kit is useful for electric fan conversions, slim fan installations or other setups where the fan and cooling unit need a direct and compact mounting method.
Technical specs
- Product type: universal fan mounting kit
- Application: electric radiator fans and transmission coolers
- Compatibility: listed for 7", 9", 10", 12", 14" and 16" fans
- Mounting method: plastic push-through hardware with foam protective pads and clip retention
- Material: plastic main mounting components
- Package: 1 set

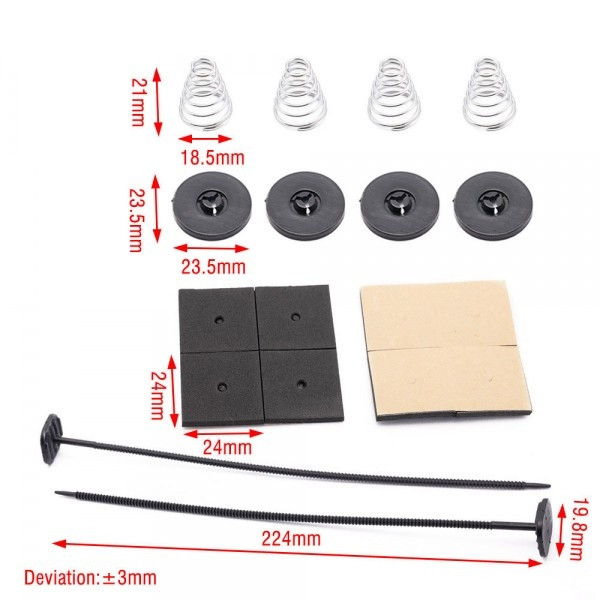

- Contents: mounting rods, foam protective pads, springs, retaining clips
Selection & installation tips
- Fan size: confirm that the fan falls within the listed 7" to 16" size range.
- Mounting path: check that the rods can pass through the radiator core safely without stressing sensitive areas.
- Foam pad placement: position the foam pads so the load is spread at the contact points.
- Rod length: trim the excess length only after the final fan position is confirmed.
- Clearance: verify the available space around the fan, radiator and nearby components, especially in tight engine bays.
Before installation, verify the fan size, radiator core layout and mounting path, then compare them with the listed technical details.
