Key Features & Benefits – U-Nut and Spire Clip Kit M4/M5/M6/M8
The EPMAN 50pc U-Nut and Spire Clip Kit M4/M5/M6/M8 is a panel fastener kit for creating threaded fixing points on panel and sheet edges. Functionally, it can be used for motorcycle fairings, body panels and other panel sections where the fixing requires M4, M5, M6 or M8 hardware and the fastener clips onto the panel edge.
The kit contains 50 pieces, and the listed material is 65 manganese steel. The mixed size layout is useful when one job involves different fixing sizes or when you want replacement pieces for several panel fastening points in one pack.
When is this useful?
It works well when there is no separate nut behind the panel but you still need a threaded fixing point for a fairing, cover or another panel-mounted part.
Technical specs

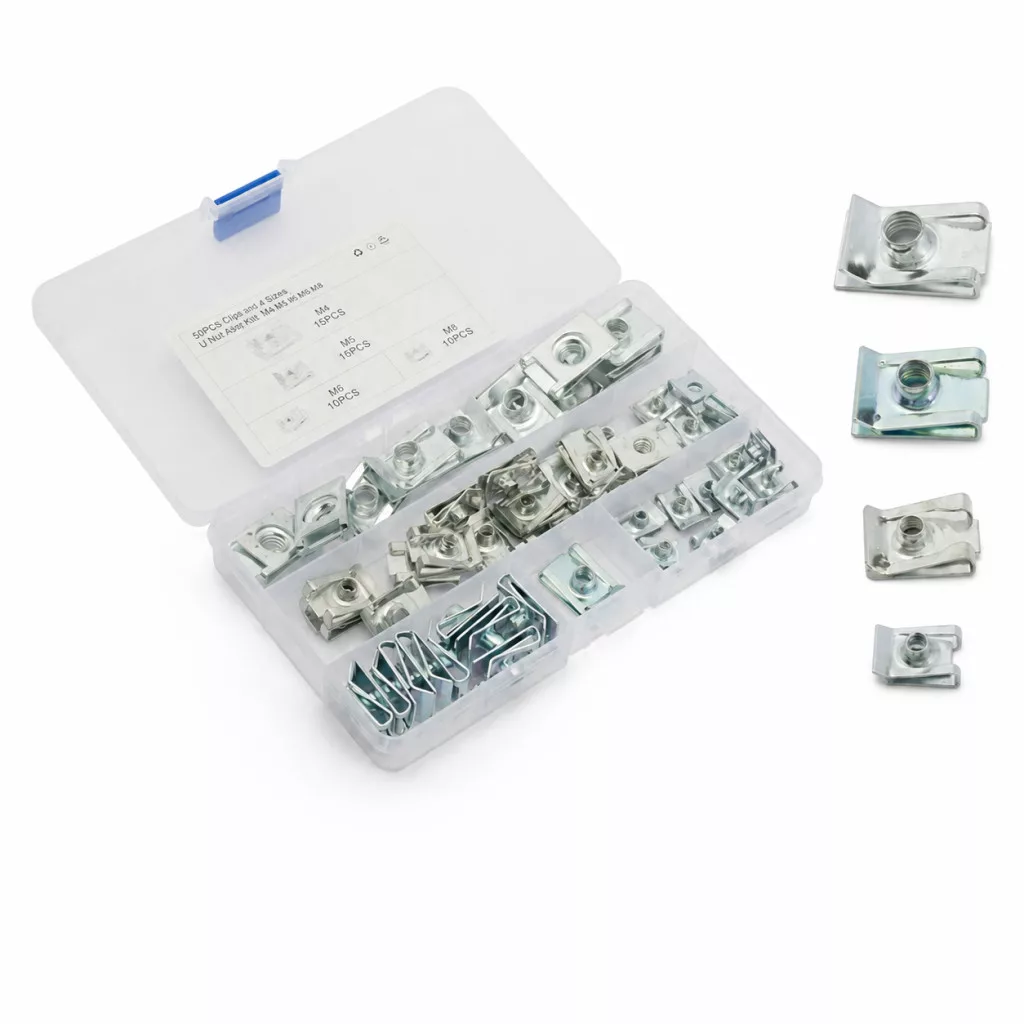

- Pack size: 50 pcs

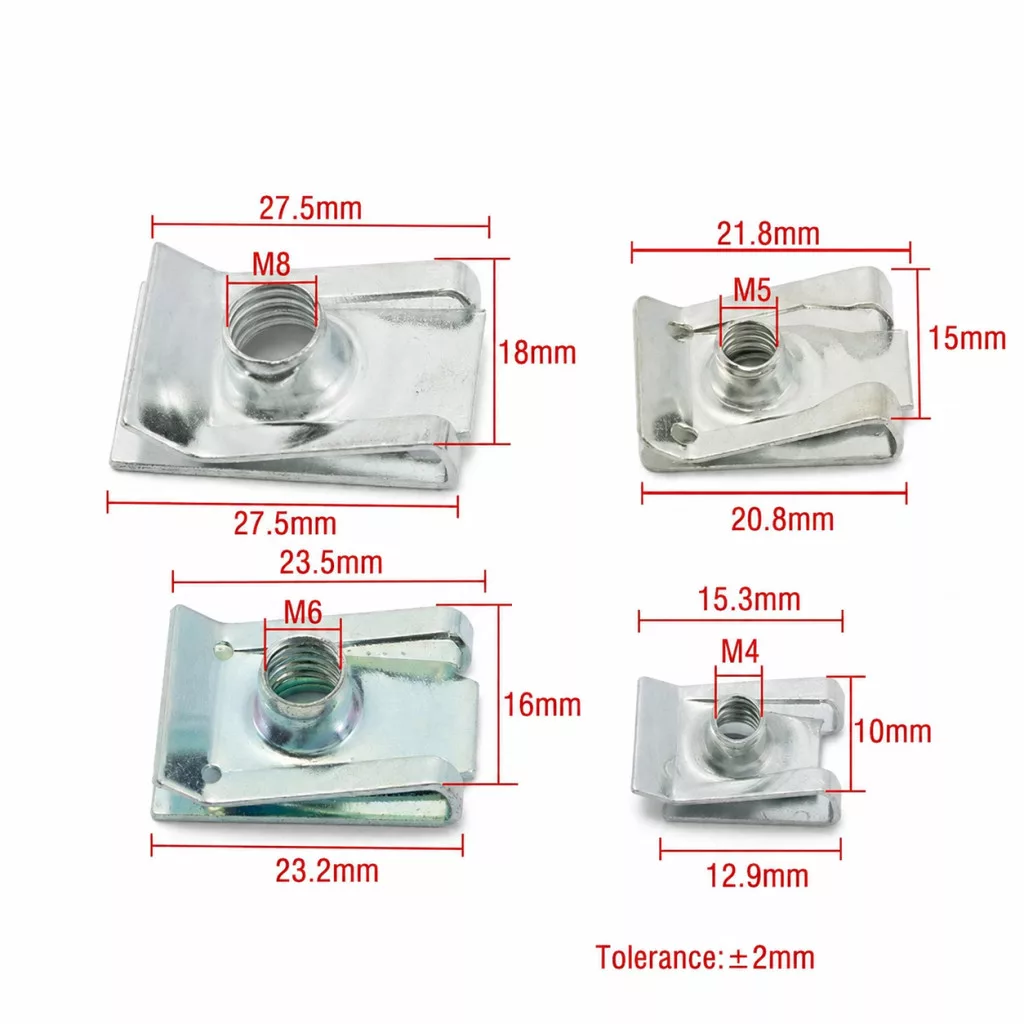

- Size range: M4, M5, M6, M8
- Quantity by size: M4 15 pcs, M5 15 pcs, M6 10 pcs, M8 10 pcs
- Material: 65 manganese steel
- Use case: threaded panel fixing for motorcycle fairings, body panels and other panel sections
Selection & installation tips
- Screw size: confirm whether the fixing point uses M4, M5, M6 or M8 hardware.
- Panel edge: check that the fastener can seat securely on the panel edge and that the edge shape allows proper fit.
- Quantity split: compare your required amount with the pack split for each size.
- Access: make sure there is enough room to guide and tighten the screw after the fastener is in place.
- Replacement check: when replacing an existing fastener, compare the original shape and thread size before installation.
Before installation, verify the required screw size, the panel edge shape and the available working space, then compare those points with the listed size range and quantity split.
