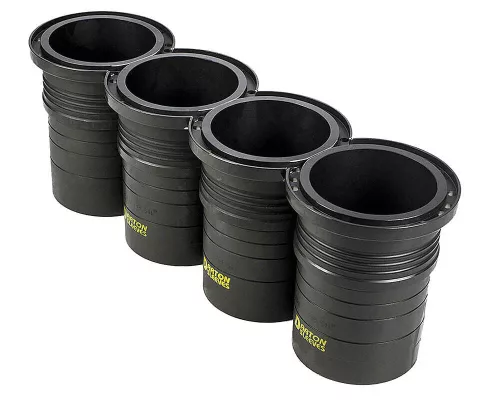

Darton MID Sleeve Kit for Honda B16, 84.00 to 85.00 mm
The Darton MID Sleeve Kit is made for Honda B16 applications with an 84.00 to 85.00 mm bore range, 83.77 mm actual bore, 95.25 mm outside diameter, 117.50 mm flange diameter, and 133.35 mm overall length. The flanged design should be matched to the block machining plan.
Net price: 1 014 €
Net price: 998 €
Key Features & Benefits – Darton MID Sleeve Kit for Honda B16, 84.00 to 85.00 mm
The Darton MID Sleeve Kit for Honda B16, 84.00 to 85.00 mm is a flanged MID sleeve kit for Honda B16 84 mm applications with an 84.00 to 85.00 mm bore range and 83.77 mm actual bore. This starting size can be finished to the target bore during machining and honing.
The MID design uses directed coolant flow around the upper cylinder wall and flange area, while the phosphate coating supports resistance to corrosion and surface wear. The design also retains the individual replaceability of a MID wet-sleeve system.
When is this useful?
This sleeve kit is useful when the block needs to be matched to a target bore and rebuild plan while keeping the specified bore range, the flanged design, and the MID cooling concept in view. The 83.77 mm actual bore also gives a defined starting point before final machining to the piston and bore target.
Technical specs
- Type: MID Sleeve
- Application: Honda B16 84 mm
- Bore range: 84.00 to 85.00 mm
- Actual bore: 83.77 mm
- Outside diameter: 95.25 mm (3.750 in)
- Wall thickness: 5.74 mm (0.226 in)
- Length: 133.35 mm (5.250 in)
- Flange thickness: 12.70 mm (0.500 in)
- Flange diameter: 117.50 mm (4.626 in)
- Country of origin: USA
Selection & installation tips
- Target bore: Check that the planned finished bore stays within the 84.00 to 85.00 mm range and matches the piston size.
- Starting bore: The 83.77 mm actual bore shows that final size is achieved during machining, so it should be reviewed together with the honing plan.
- Block machining: Compare the 95.25 mm outside diameter, 117.50 mm flange diameter, and 12.70 mm flange thickness against the block machining dimensions.
- Installed length: Verify the 133.35 mm length together with lower and upper block support so sleeve position matches the intended build.
- Cooling layout: With a MID sleeve system, block and cylinder head water passage condition plus lower o-ring area execution are also important installation checks.
Before installation, self-check the target bore, block machining dimensions, flange geometry, overall length, and cooling layout, then compare them with the listed details.
