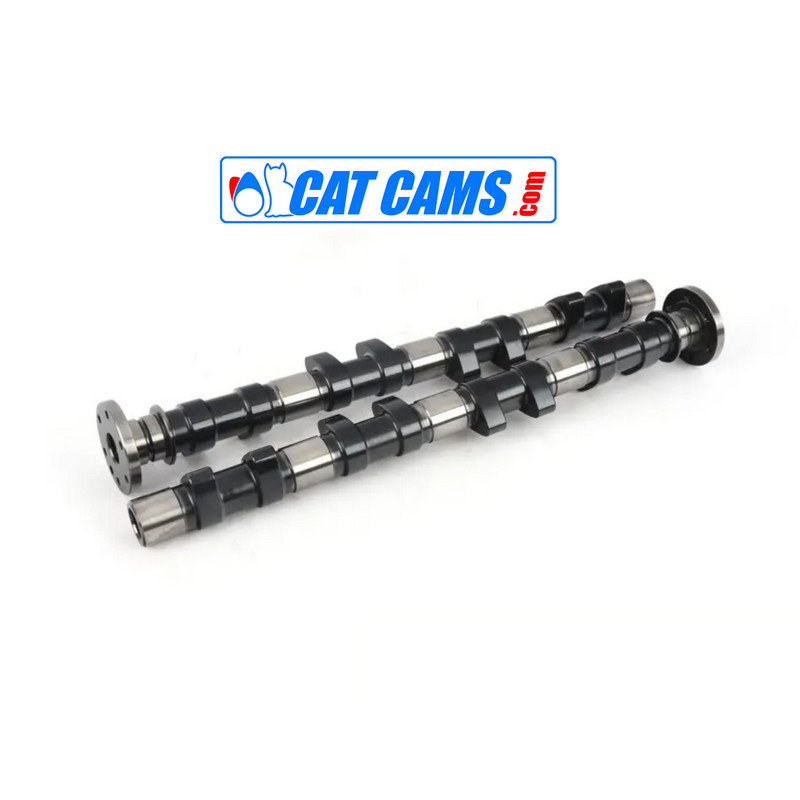

Cat Cams Suzuki - Hot Street-Dirt Track Camshaft 1.3L 16V (G13B) - 6700625

Cat Cams camshafts are engineered for maximum performance and reliability, tailored for motorsport applications. This model, specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, optimizes valve timing and provides outstanding durability in dirt track racing and pro street environments. Made from steel billet, it ensures long-lasting performance even in extreme conditions.

Technical Specifications:

• Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
• Application: Pro street and dirt track
• Opening Duration (0.1 mm): 278° (intake) / 267° (exhaust)
• Opening Duration (1.0 mm): 238° (intake) / 231° (exhaust)
• Valve Lift:
  • Intake: 11.20 mm
  • Exhaust: 10.50 mm
• Valve Clearance at TDC:
  • Intake: 2.35 mm
  • Exhaust: 1.85 mm
• Max Spring Load: 82 kg @ 14.0 mm
• Sprocket: OEM compatibility

Remarks:

• Steel billet camshafts.
• For competition use, verify the following:
  • Ensure smooth operation of the camshaft in the cylinder head.
  • Minimum clearance between valve seal and retainer at full lift must be 0.6 mm.
  • Minimum valve spring travel of 1.0 mm at full lift must be provided.
  • Clearance between valve and piston must be at least 1.5 mm.
  • Adjust exhaust timing 5-15° before TDC, intake after TDC.

This camshaft is a top choice for enhancing the performance of the Suzuki G13B engine in dirt track and pro street applications.
