Cat Cams Suzuki - Hot Street-Dirt Track Camshaft 1.3L 16V (G13B) - 6700612

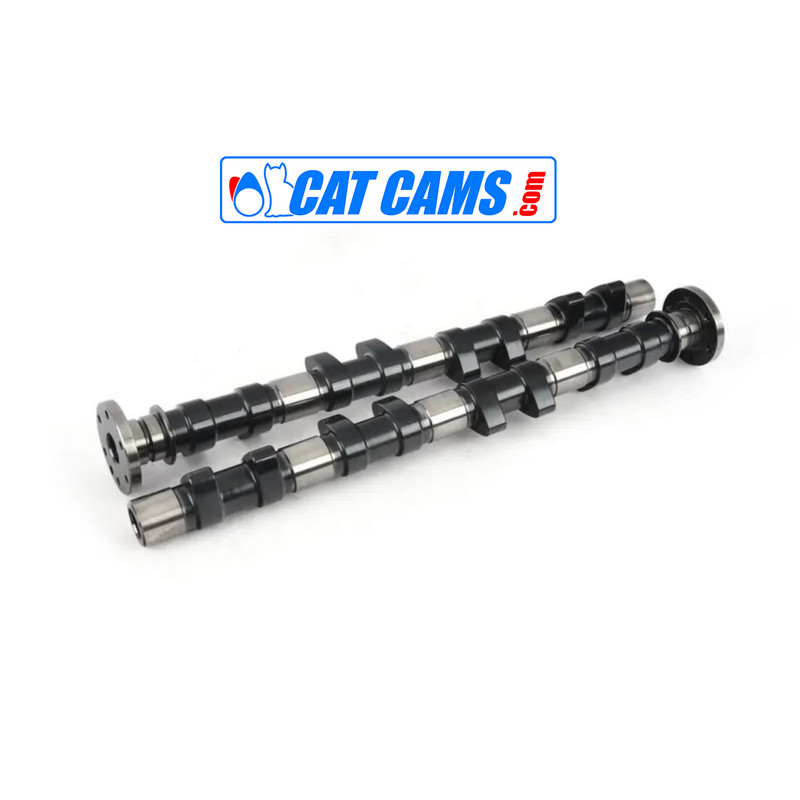

Cat Cams camshafts are engineered for maximum performance and durability, tailored for motorsport and professional applications. This model, specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, provides enhanced valve timing and exceptional reliability. Made from steel billet, it is ideal for dirt track and pro street environments.

Technical Specifications:

• Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
• Application: Pro street and dirt track
• Opening Duration (0.1 mm): 266° (intake) / 271° (exhaust)
• Opening Duration (1.0 mm): 231° (intake) / 225° (exhaust)
• Valve Lift:
  • Intake: 10.50 mm
  • Exhaust: 10.00 mm
• Valve Clearance at TDC:
  • Intake: 1.75 mm
  • Exhaust: 1.60 mm
• Max Spring Load: 82 kg @ 14.0 mm
• Sprocket: OEM compatibility

Remarks:

• Steel billet camshafts.
• For competition use, verify the following:
  • Ensure smooth operation of the camshaft in the cylinder head.
  • Minimum valve spring travel of 1.0 mm at full lift must be provided.
  • Clearance between valve and piston must be at least 1.5 mm.
  • Adjust exhaust timing 5-15° before TDC, intake after TDC.

This camshaft is an excellent choice for enhancing the performance of the Suzuki G13B engine in dirt track and pro street applications.
