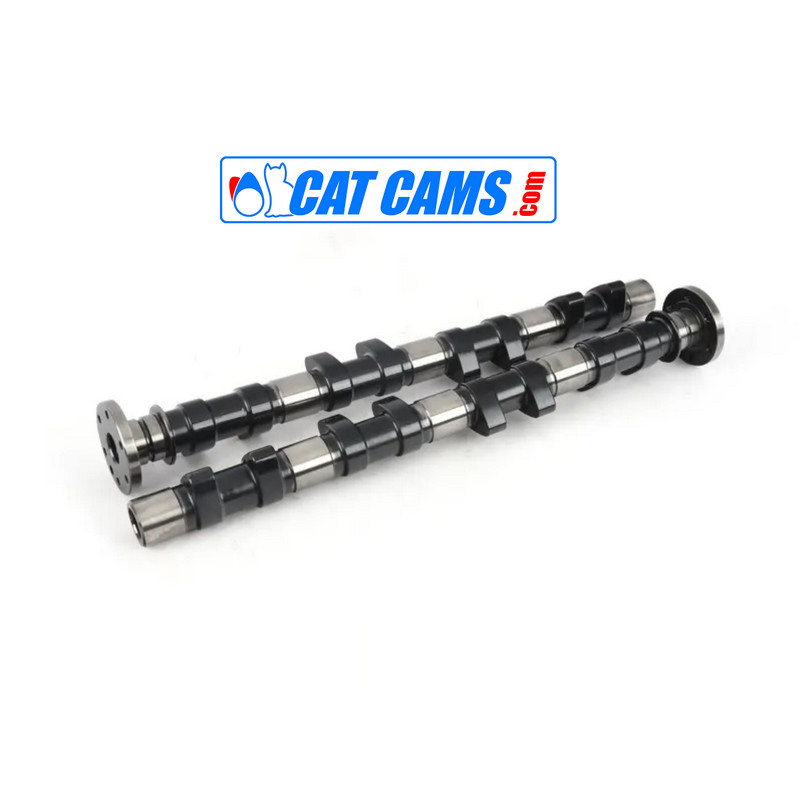

Cat Cams camshafts are synonymous with top-tier quality in motorsports. This model is engineered for the Suzuki M16A 1.6L 16V DOHC (DTs/DTs) engine and is intended for use without VVT systems. Adjustable sprockets allow fine-tuning of camshaft timing to optimize engine performance under competitive conditions. This camshaft is designed exclusively for race engines equipped with independent engine management systems or carburetors.

Technical Specifications:

• Engine Compatibility: Suzuki M16A 1.6L 16V DOHC
• Application: Full race (track use only)
• Opening Duration (0.1 mm): 288° (intake) / 280° (exhaust)
• Opening Duration (1.0 mm): 254° (intake) / 246° (exhaust)
• Valve Lift:
  • Intake: 11.50 mm
  • Exhaust: 11.50 mm
• Valve Clearance at TDC:
  • Intake: 3.95 mm
  • Exhaust: 3.45 mm
• Max Spring Load: 85 kg @ 11.5 mm
• Sprocket: Adjustable

Remarks:

• Compatible only without VVT systems.
• Designed for race engines with independent engine management or carburetors.
• Cylinder head machining may be required at cam lobes.

This camshaft is the perfect choice for drivers seeking maximum performance on the track, offering unparalleled precision and reliability.
