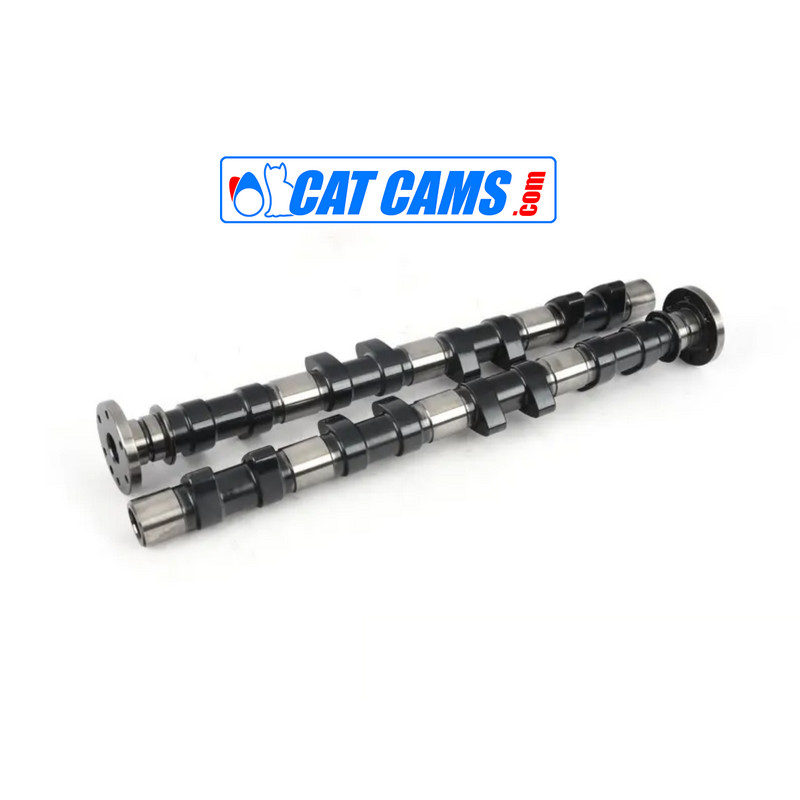

Cat Cams Suzuki - Tarmac Rally-Race Camshaft 1.6L 16V (M16A) - 6702217

Cat Cams camshafts are synonymous with top-tier quality in motorsports. This model is engineered for the Suzuki M16A 1.6L 16V DOHC (DTs/DTs) engine and is intended for use without VVT systems. Adjustable sprockets allow fine-tuning of camshaft timing to optimize engine performance under competitive conditions. This camshaft is exclusively designed for race and pro street engines equipped with independent engine management systems or carburetors.

Technical Specifications:

• Engine Compatibility: Suzuki M16A 1.6L 16V DOHC
• Application: Tarmac rally and race
• Opening Duration (0.1 mm): 280° (intake) / 272° (exhaust)
• Opening Duration (1.0 mm): 246° (intake) / 238° (exhaust)
• Valve Lift:
  • Intake: 11.50 mm
  • Exhaust: 11.50 mm
• Valve Clearance at TDC:
  • Intake: 3.45 mm
  • Exhaust: 2.90 mm
• Max Spring Load: 85 kg @ 11.5 mm
• Sprocket: Adjustable

Remarks:

• Compatible only without VVT systems.
• Designed for race and pro street use with independent engine management or carburetors.
• Cylinder head machining may be required at cam lobes.

This camshaft is the perfect choice for drivers seeking maximum performance on tarmac rally or race tracks and pro street applications, offering unmatched precision and reliability.
