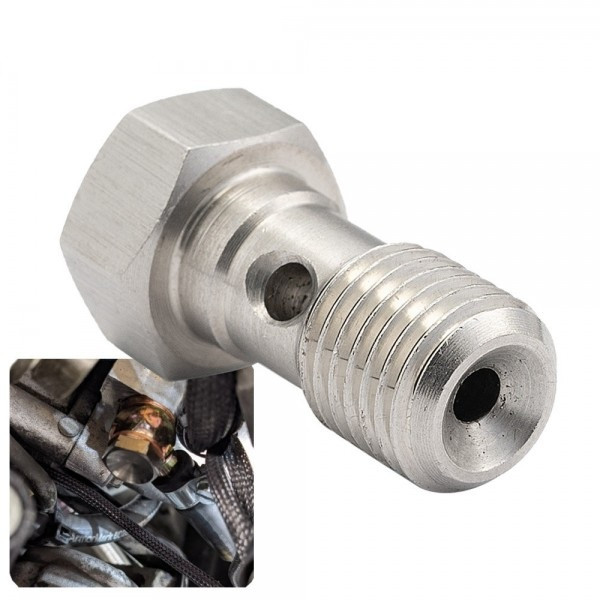

Key Features & Benefits – Stainless steel banjo bolt M10x1.0
The stainless steel banjo bolt M10x1.0 is a universal-style fastener for banjo connections where the thread size is M10x1.0. It can be used on brake lines, clutch lines, and fuel, oil, or cooling system lines when your setup uses a banjo fitting.

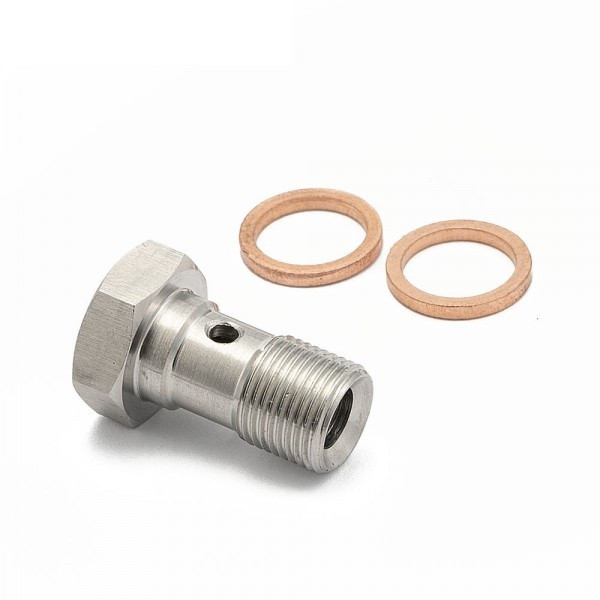

It is made from 304 stainless steel with a brushed finish. The pack includes 2 copper washers to help create a sealed interface at the banjo joint.
When is this useful?
When building or servicing a banjo connection on a brake, clutch, or gauge line, the stainless steel banjo bolt M10x1.0 handles the fastening, while the copper washers support sealing at the connection faces.
Technical specs
- Product type: banjo bolt
- Thread size: M10x1.0
- Material: 304 stainless steel
- Finish: brushed

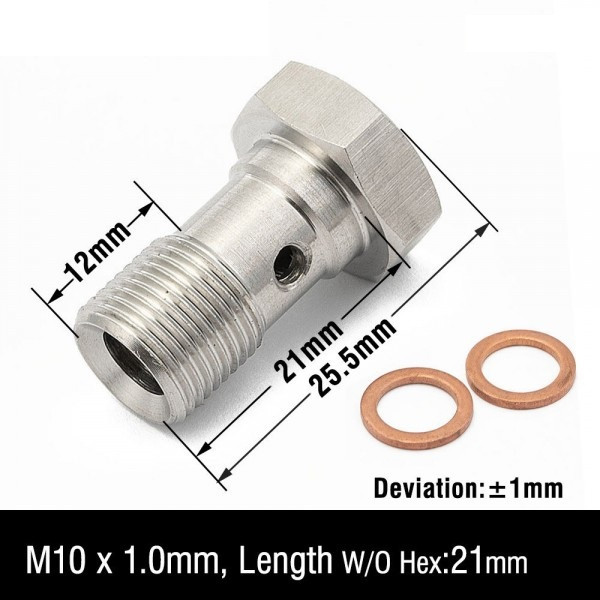

- Length (without hex): 21 mm
- Compatible fluids: brake fluid, unleaded petrol, methanol, water, oil
- Typical applications: brake lines, clutch lines, fuel systems, cooling systems, oil pressure systems, pressure gauge lines, power steering systems
- In the box: 1× banjo bolt, 2× copper washers
Selection & installation tips
- Thread verification: confirm the receiving port is M10x1.0, not a different M10 pitch.
- Banjo eye & washers: ensure the banjo eye faces are flat and the copper washers are undamaged.
- Length & clearance: account for the 21 mm length (without hex) and confirm there is enough space at the joint.
- Fluid match: match the bolt use-case to your system fluid (e.g. brake fluid, petrol, methanol, oil).
- Leak inspection: after assembly, inspect the joint under operating conditions and check for any leak marks.
Before fitting, self-verify thread size, banjo eye sealing faces, and available clearance, then compare your setup to the technical specs above to ensure the connection matches your system.
