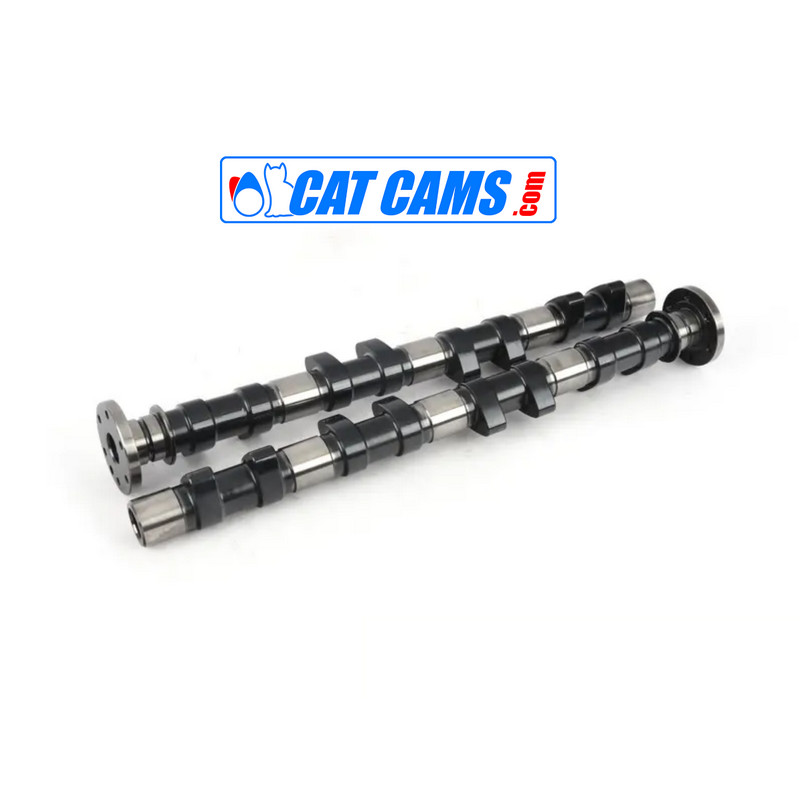

Cat Cams Suzuki - Sport Camshaft 1.6L 16V (M16A) - 6702104

Cat Cams camshafts represent the pinnacle of engineering for both motorsport and high-performance street applications. This sport camshaft, specifically designed for the Suzuki M16A VVT 1.6L 16V DOHC (DTs/DTs) engine, improves power delivery and engine response. It is compatible with the original VVT system and comes with an adjustable sprocket for fine-tuning. ECU reprogramming is recommended for optimal performance.

Technical Specifications:

• Engine Compatibility: Suzuki M16A VVT 1.6L 16V DOHC
• Application: Sport / Fast road and track use
• Opening Duration (0.1 mm): 252° (intake) / 248° (exhaust)
• Opening Duration (1.0 mm): 216° (intake) / 206° (exhaust)
• Valve Lift:
  • Intake: 9.00 mm
  • Exhaust: 8.50 mm
• Valve Clearance at TDC:
  • Intake: 0.35 mm
  • Exhaust: 1.00 mm
• Sprocket Position: Adjustable (optimized for fast road performance)
• Max Spring Load: 39 kg @ 8.5 mm

Remarks:

• Compatible with the original VVT system.
• ECU reprogramming is recommended to achieve optimal performance.

This camshaft is the perfect choice for enthusiasts seeking enhanced road and track performance with uncompromised reliability and precision.
