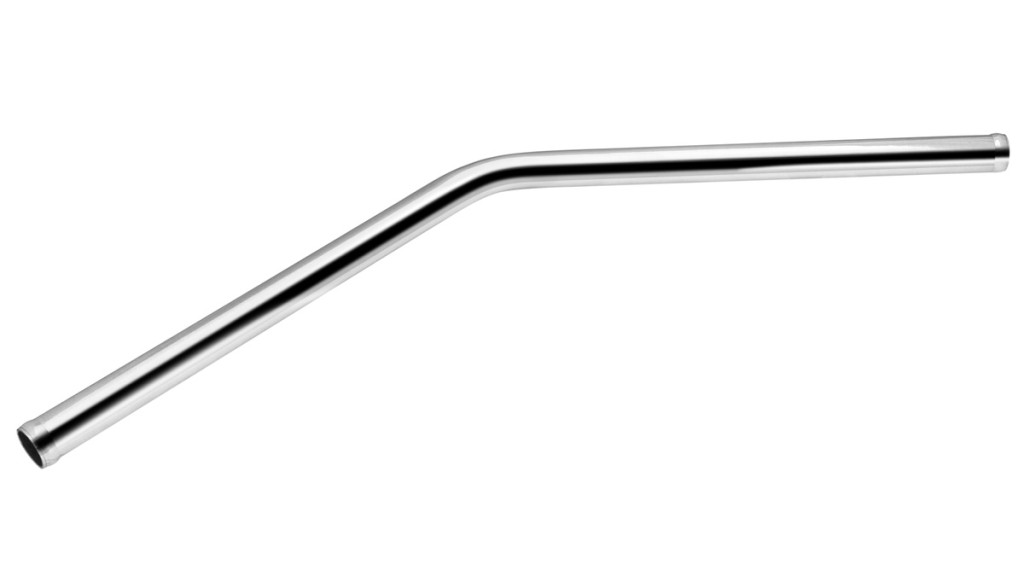

Key Features & Benefits – Aluminum pipe 45 degree – 25 mm diameter, 600 mm length
The Aluminum pipe 45 degree – 25 mm diameter, 600 mm length is a 45° aluminum pipe section used for intake system fabrication. The 25 mm diameter and 600 mm overall length are useful when you need a 45-degree turn while keeping a consistent tube size through your routing.
The design provides two straight legs around the bend, with 300 mm + 300 mm lengths. This makes trimming and fitting easier when you are building a multi-piece pipe run.
When is this useful?
It is useful when packaging limits prevent a large-radius bend, but you still want a defined 45-degree direction change. It helps organize routing when your layout needs an accurate angled section between components.
Technical specs
- Material: aluminum
- Design: 45° pipe section
- Diameter (D): 25 mm
- Angle: 45°
- Length (L): 300 mm
- Overall length: 600 mm
Selection & installation tips
- Diameter match: measure mating tubes/ports and match them to the 25 mm size.
- Routing check: test-fit the 45° turn in the final position and confirm clearance to nearby parts.
- Cut planning: use the 300 mm + 300 mm legs to mark your cut points and leave allowance for couplers or joints.
- Joining method: for silicone coupler + clamp joints, keep ends straight, deburred, and clean for consistent sealing.
- Support & vibration: add mounting support so the pipe does not load the joints under vibration.
Before installation, verify the 25 mm size, the 45° turn, the 600 mm overall length, and your joining method, then compare them to the technical specs above to ensure correct fit in your pipe routing.
