Key Features And Benefits
Aluminium “British Style” Engine/Transmission Oil Cooler AN10 Fitting 25 Row is designed to help stabilise oil temperatures when your setup runs hot. Under sustained load (track driving, spirited mountain runs, modified engines, heavily loaded transmissions), oil can overheat and lubrication stability can drop. Adding an external oil cooler is a direct way to support consistent operation.
This cooler uses a stacked-plate core design for effective heat transfer in a compact format. The AN10 inlet/outlet size suits higher-flow circuits or builds already based on AN10 hoses and fittings.
Aluminium “British Style” Engine/Transmission Oil Cooler AN10 Fitting 25 Row in real use
A 25 row AN10 oil cooler provides more cooling surface than smaller row options, making it a better match for sustained heat load. With a listed 51 mm core thickness and larger overall dimensions, it can help reduce temperature spikes and keep oil viscosity more consistent during aggressive driving. If you’re looking for a “25 row AN10 oil cooler for universal installation”, this unit is a strong base when paired with the correct adapters and smart mounting.

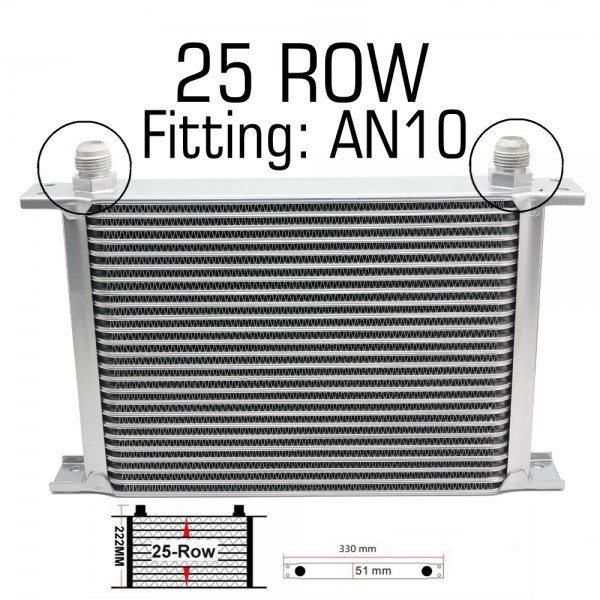

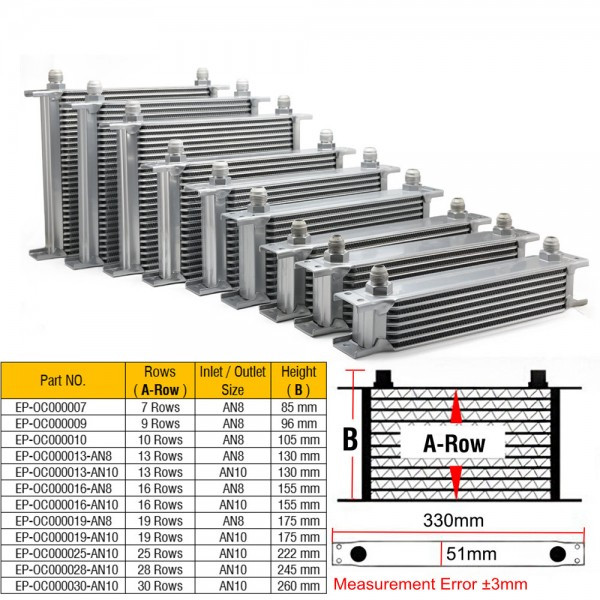

Technical Specs
- Construction: aluminium, stacked-plate core
- Rows: 25 rows
- Inlet / outlet: AN10
- Height (B): 222 mm
- Length: 330 mm
- Thickness: 51 mm
- Marked measurement tolerance: ±3 mm
- Part number: EP-OC000025-AN10
Selection And Installation Tips
- Measure space first: confirm clearance for 330 mm length and 222 mm height.
- Airflow matters: mount where it gets clean, direct airflow and avoid heat-soak from hot components.
- AN10 consistency: keep hose and fittings truly AN10 and verify the sealing style used in your system.
- Thermostatic control: for street builds, a thermostat solution is commonly used to avoid overcooling when oil is cold.
- Protect the lines: route hoses away from sharp edges, moving parts, and exhaust heat; add shielding where needed.
Compatibility And Part Number
- Compatible part number: EP-OC000025-AN10
- Fitment: universal installation for engine oil or transmission oil cooling with the correct adapters and hose routing
Tell us if this is for engine oil or transmission oil and what AN10 adapters you plan to use. We can help you sanity-check sizing and mounting location.
