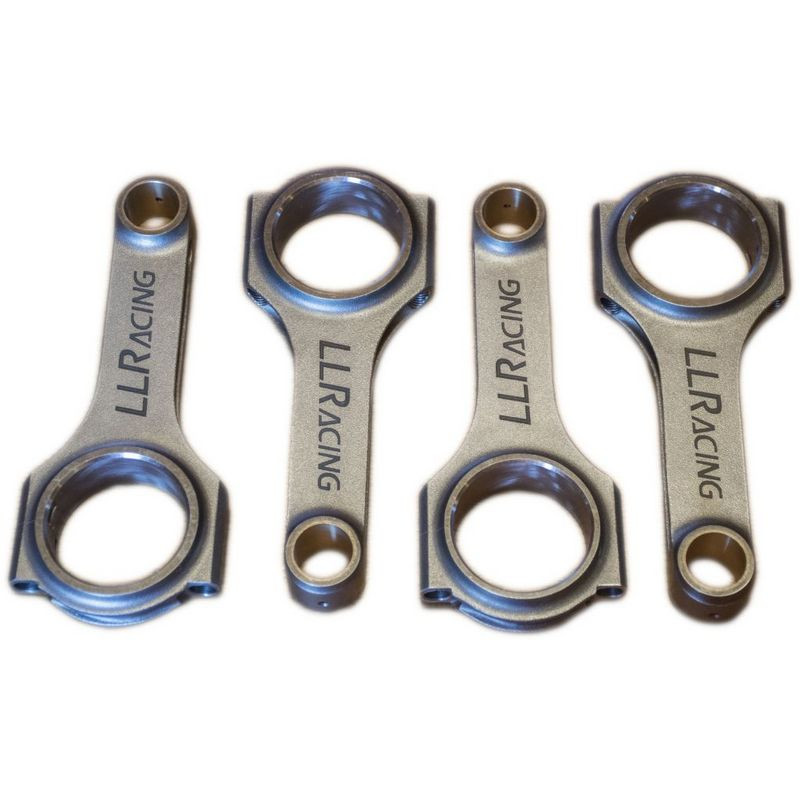

Suzuki M16A H-Beam Forged Connecting Rod Set (3/8" ARP)

This forged H-beam connecting rod set for Suzuki M16A engines is manufactured to the highest standards from premium 4340 (40CrNiMoA) aerospace-grade steel, with full CNC machining. Shot-peening reduces internal stresses, while rigorous X-ray and ultrasonic testing ensure maximum reliability. The rods feature a surface hardness of 35-40 HRC, making them exceptionally durable for high-performance applications. Each rod in the set is precision-weight matched to within +/- 1 gram. Additionally, the set includes 3/8" ARP2000 bolts, offering secure and stable fastening even in high-power setups.

Specifications:

Type: Suzuki M16A forged H-beam connecting rod

Material: 4340 forged steel (40CrNiMoA)

Length: 136 mm

Wrist Pin Diameter: 20 mm

Big End Diameter: 45 mm

Surface Hardness: 35-40 HRC

Weight Tolerance: +/- 1 g (within set)

Machining: CNC, heat treatment, shot-peening

Testing: X-ray and ultrasonic

Wrist Pin Bushing: Silicon-bronze alloy

Bolts: 3/8" ARP2000

If you require custom connecting rods for your engine, please contact us for tailored manufacturing solutions.
