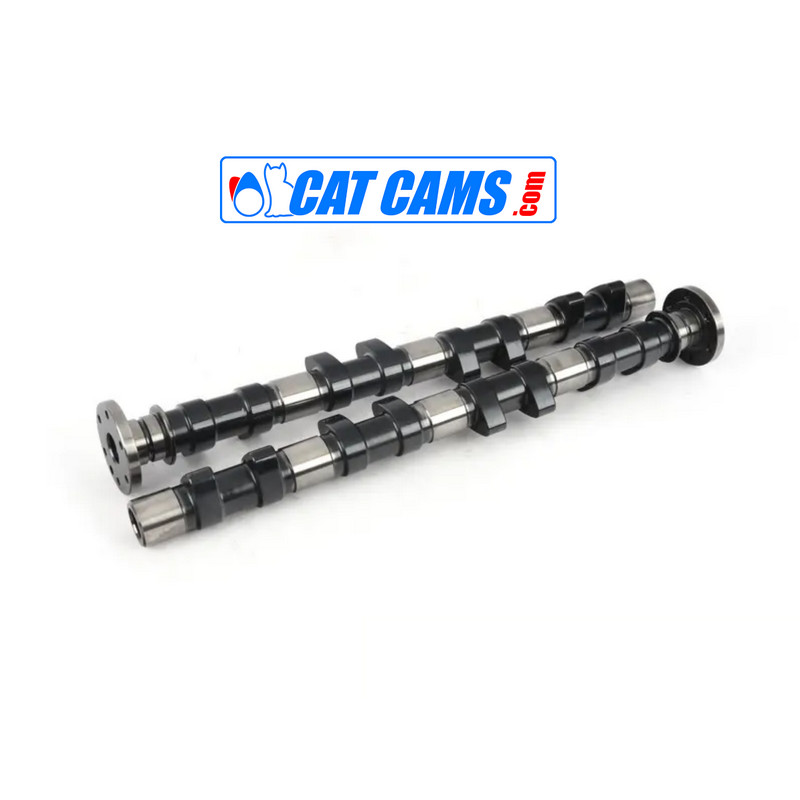

Cat Cams Suzuki - Tarmac Rally-Race Camshaft 1.6L 16V (M16A) - 6702204

Cat Cams camshafts are known for delivering outstanding performance in motorsports. This model is engineered for the Suzuki M16A 1.6L 16V DOHC (DTs/DTs) engine and is compatible without VVT systems. Adjustable sprockets allow fine-tuning of camshaft timing to optimize the engine for competition use. This camshaft is designed exclusively for race engines equipped with independent engine management systems or carburetors.

Technical Specifications:

• Engine Compatibility: Suzuki M16A 1.6L 16V DOHC
• Application: Tarmac rally and race
• Opening Duration (0.1 mm): 272° (intake) / 264° (exhaust)
• Opening Duration (1.0 mm): 238° (intake) / 230° (exhaust)
• Valve Lift:
  • Intake: 11.50 mm
  • Exhaust: 11.00 mm
• Valve Clearance at TDC:
  • Intake: 2.90 mm
  • Exhaust: 2.40 mm
• Max Spring Load: 85 kg @ 11.5 mm
• Sprocket: Adjustable

Remarks:

• Compatible only without VVT systems.
• Designed exclusively for competition engines with independent engine management or carburetors.
• Cylinder head machining may be required at cam lobes.

This camshaft is ideal for drivers seeking maximum performance on tarmac rally and race tracks, offering unmatched precision and reliability.
