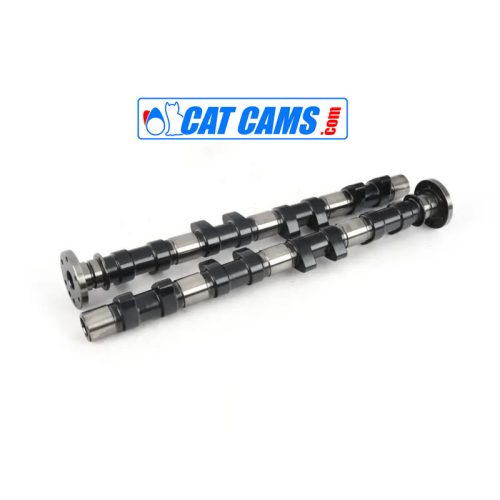

Cat Cams Suzuki - Tarmac Rally - Race Camshaft 1.3L 16V (G13B) - 6701621

Cat Cams camshafts are crafted with high-quality materials to meet the challenges of motorsport. This camshaft, specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, is optimized to enhance engine performance under tarmac rally and race conditions. Made from steel billet, it delivers outstanding durability and precision, making it ideal for demanding applications.

Technical Specifications:

• Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
• Application: Tarmac rally and race
• Opening Duration (0.1 mm): 272° (intake) / 267° (exhaust)
• Opening Duration (1.0 mm): 242° (intake) / 238° (exhaust)
• Valve Lift:
  • Intake: 12.50 mm
  • Exhaust: 12.00 mm
• Valve Clearance at TDC:
  • Intake: 3.30 mm
  • Exhaust: 3.05 mm
• Max Spring Load: 82 kg @ 14.0 mm
• Sprocket: OEM compatibility

Remarks:

• Steel billet camshafts.
• For competition use, ensure the following:
  • The camshaft moves smoothly in the cylinder head.
  • Minimum clearance between valve seal and retainer at full lift is 0.6 mm.
  • Minimum valve spring travel of 1.0 mm at full lift is provided.
  • Clearance between valve and piston must be at least 1.5 mm.
  • Use lash caps to adjust valve clearance.

This camshaft is a perfect choice for optimizing the performance of the Suzuki G13B engine in tarmac rally and race conditions.
