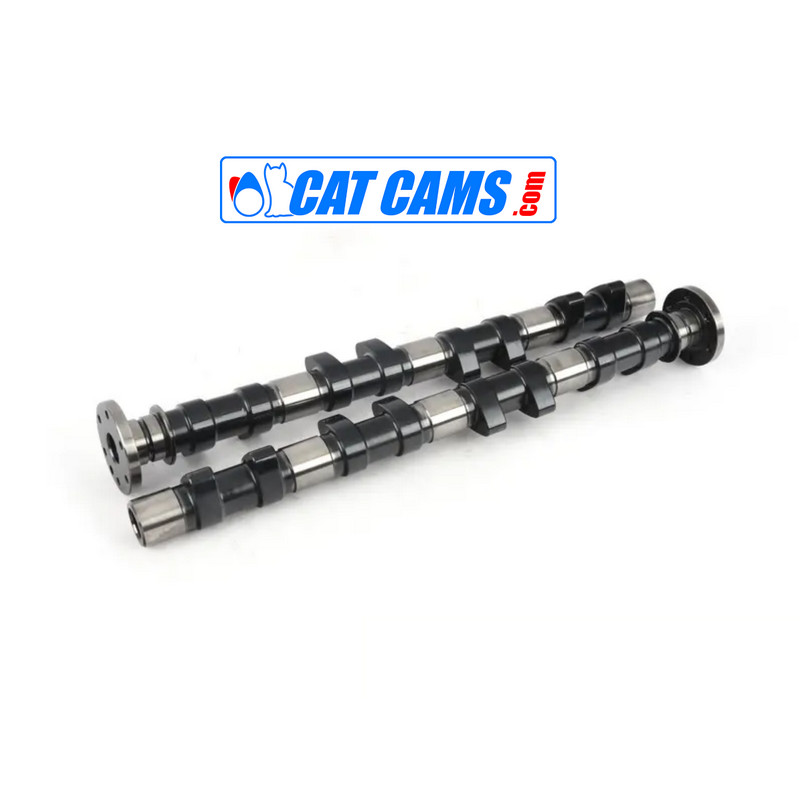

Cat Cams Suzuki - Sport Camshaft 1.6L 16V (M16A) - 6702103

Cat Cams is renowned across Europe for its innovative technology and superior quality camshafts. This sport camshaft is engineered for the Suzuki M16A VVT 1.6L 16V DOHC (DTs/DTs) engine, enhancing efficiency and power output. Compatible with the original VVT system, it operates with the factory ECU, which self-optimizes over approximately 1000 km. The adjustable sprocket allows precise cam timing for optimal performance.

Technical Specifications:

• Engine Compatibility: Suzuki M16A VVT 1.6L 16V DOHC
• Application: Sport / Fast road use
• Opening Duration (0.1 mm): 244° (intake) / 240° (exhaust)
• Opening Duration (1.0 mm): 208° (intake) / 198° (exhaust)
• Valve Lift:
  • Intake: 8.75 mm
  • Exhaust: 8.25 mm
• Valve Clearance at TDC:
  • Intake: 0.30 mm
  • Exhaust: 0.75 mm
• Max Spring Load: 39 kg @ 8.5 mm
• Sprocket Position: Adjustable (optimized for fast road/track use)

Remarks:

• Compatible with the original VVT system.
• Runs on the factory ECU, requiring approximately 1000 km for optimal self-learning adjustments.

This camshaft is an excellent choice for achieving enhanced road and track performance, offering durability and reliability without compromise.
