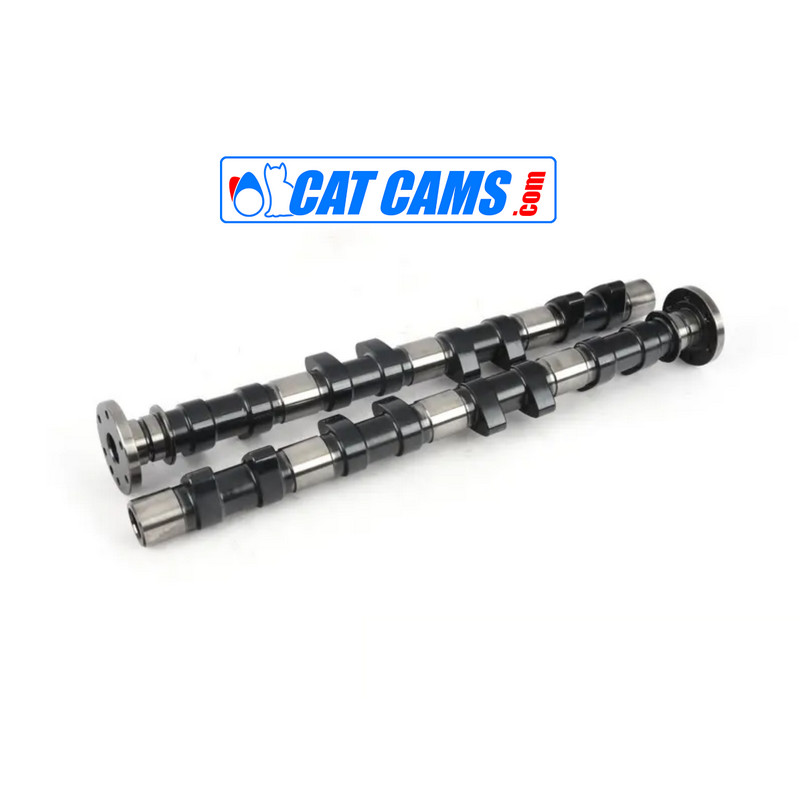

Cat Cams Suzuki - Sport Camshaft 1.3L 16V (G13B) - 6700603

Cat Cams camshafts are renowned for delivering exceptional quality and performance tailored to motorsport and sporty street applications. This model is specifically developed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine. Made from steel billet, this camshaft ensures durability and reliability while optimizing engine power.

Technical Specifications:

• Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
• Application: Sport / Track and street use
• Opening Duration (0.1 mm): 248° (intake) / 239° (exhaust)
• Opening Duration (1.0 mm): 213° (intake) / 207° (exhaust)
• Valve Lift:
  • Intake: 8.70 mm
  • Exhaust: 8.50 mm
• Valve Clearance at TDC:
  • Intake: 0.85 mm
  • Exhaust: 0.60 mm
• Max Spring Load: 80 kg @ 10.0 mm
• Sprocket: OEM compatibility

Remarks:

• Steel billet camshafts.
• It is recommended to carefully review different valve spring options for compatibility.

This camshaft is an excellent choice for enthusiasts seeking enhanced performance for their Suzuki G13B engine.
