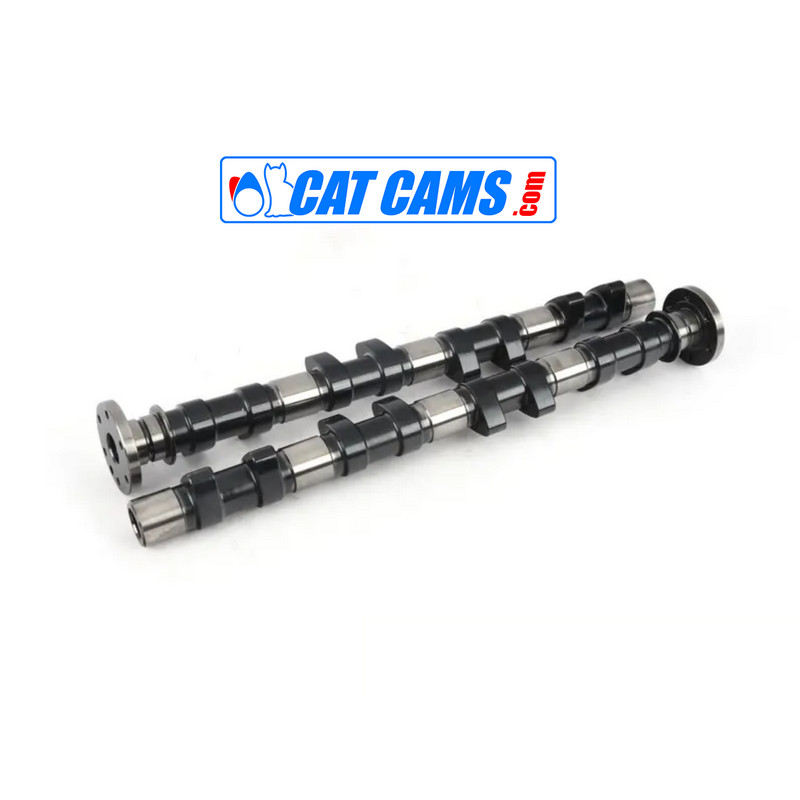

Cat Cams Suzuki - Hot Street-Dirt Track Camshaft 1.3L 16V (G13B) - 6700604

Cat Cams camshafts are engineered to meet the highest standards of motorsport performance and reliability. This model, specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, ensures optimized valve timing and exceptional durability. Made from steel billet, this camshaft is built to withstand demanding conditions in dirt track racing and pro street environments.

Technical Specifications:

• Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
• Application: Pro street and dirt track
• Opening Duration (0.1 mm): 271° (intake) / 261° (exhaust)
• Opening Duration (1.0 mm): 225° (intake) / 218° (exhaust)
• Valve Lift:
  • Intake: 10.00 mm
  • Exhaust: 9.00 mm
• Valve Clearance at TDC:
  • Intake: 1.50 mm
  • Exhaust: 1.10 mm
• Max Spring Load: 80 kg @ 10.0 mm
• Sprocket: OEM compatibility

Remarks:

• Steel billet camshafts.
• Review different valve spring options for compatibility.
• Cylinder head machining may be required at cam lobes.
• Suitable only for pro street and dirt track applications with independent engine management or carburetors.

This camshaft is a top choice for enhancing the performance of the Suzuki G13B engine in professional environments.
