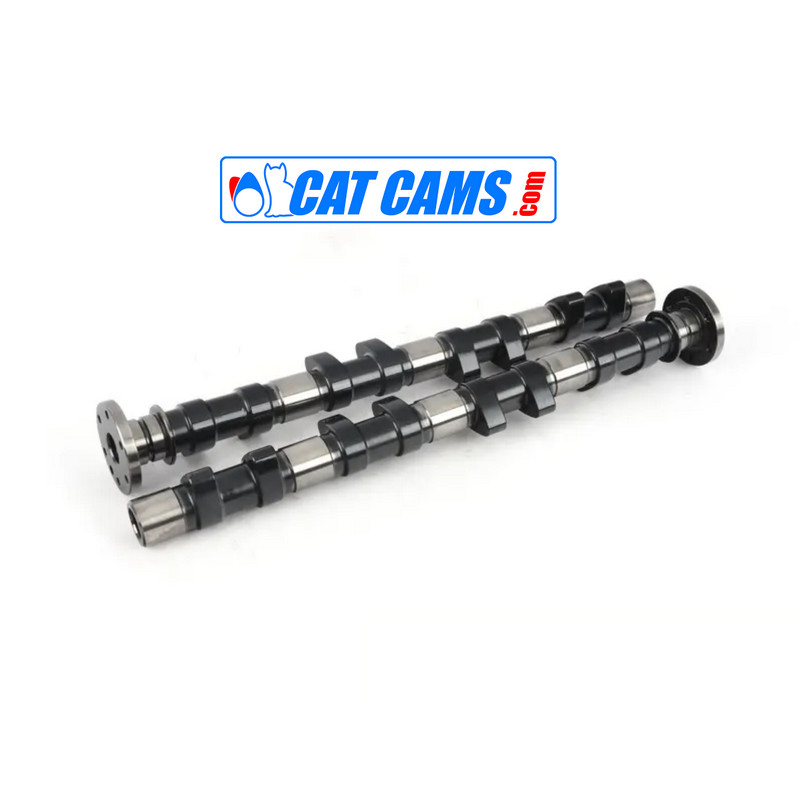

Cat Cams Suzuki - Full Race - Race Camshaft 1.3L 16V (G13B) - 6701626

Cat Cams camshafts represent the pinnacle of motorsport engineering, built to withstand the extreme challenges of racing. This camshaft is specifically designed for the Suzuki G13B 1.3L 16V DOHC (DTH/DTH) engine, optimizing engine performance under the most demanding racing conditions. Made from steel billet, it offers exceptional durability and precision.

Technical Specifications:

• Engine Compatibility: Suzuki G13B 1.3L 16V DOHC
• Application: Full race
• Opening Duration (0.1 mm): 285° (intake) / 277° (exhaust)
• Opening Duration (1.0 mm): 252° (intake) / 244° (exhaust)
• Valve Lift:
  • Intake: 12.50 mm
  • Exhaust: 12.00 mm
• Valve Clearance at TDC:
  • Intake: 3.80 mm
  • Exhaust: 3.30 mm
• Max Spring Load: 82 kg @ 14.0 mm
• Sprocket: OEM compatibility

Remarks:

• Steel billet camshafts.
• For competition use, ensure the following:
  • The camshaft moves smoothly in the cylinder head.
  • Minimum clearance between valve seal and retainer at full lift is 0.6 mm.
  • Minimum valve spring travel of 1.0 mm at full lift is provided.
  • Clearance between valve and piston must be at least 1.5 mm.
  • Use lash caps to adjust valve clearance.

This camshaft is the ultimate choice for achieving peak performance in full race conditions with the Suzuki G13B engine.
