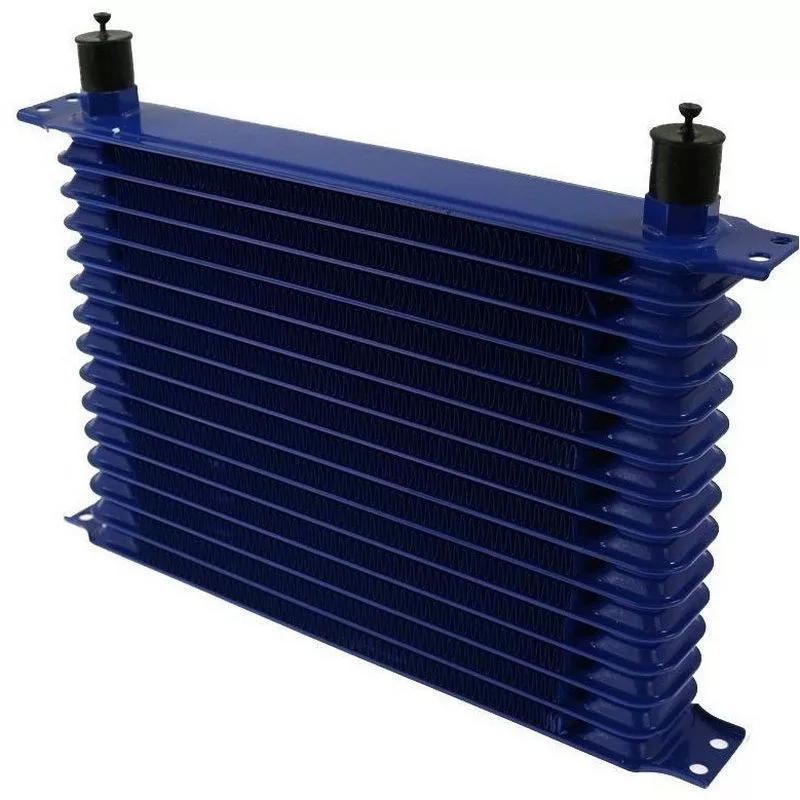

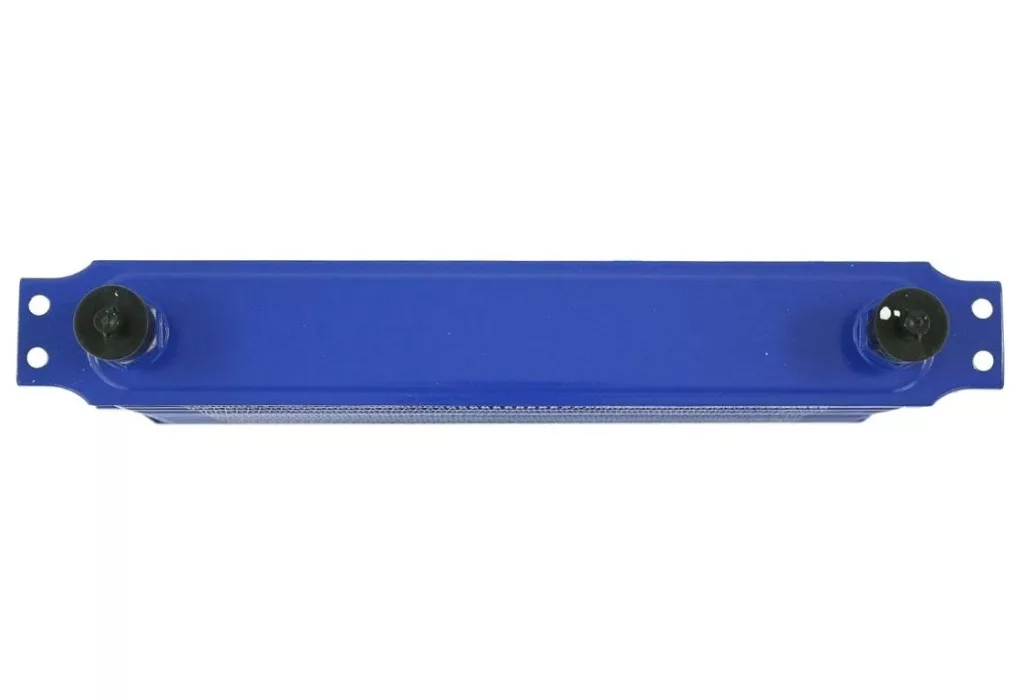

15-Row Race Line Aluminum Oil Cooler Radiator – AN10, Blue

Key Features & Benefits – 15-row AN10 aluminum oil cooler radiator

The 15-row AN10 aluminum oil cooler radiator is a universal solution for engine, transmission, or differential oil cooling in setups planned with the correct lines and adapters. The key fitment parameter is the AN10 port size, so hose ends, fittings, and the oil-system adapter should be matched to the same connection size.

The stacked-plate construction provides heat-transfer surface in a compact body, while the 15-row format can be a balanced choice when more cooling surface than a 13-row unit is needed but installation space remains limited. The blue finish gives a clear technical look in motorsport and tuning engine bays.

When is this useful?

This oil cooler radiator is useful when engine, transmission, or differential oil is exposed to higher heat load during sustained driving. Modified street cars, track-day use, or higher-load driveline setups can use it as part of a properly planned oil cooling system.

Technical specs

• Brand: EPMAN
• Product type: aluminum oil cooler radiator
• Product line: Race Line
• Design: stacked-plate
• Rows: 15-row
• Ports: AN10 inlet and outlet
• Core size: 300 × 210 × 50 mm
• Overall size: 330 × 210 × 50 mm
• Material: aluminum
• Color: blue
• Application: engine, transmission, or differential oil circuit, universal installation

Selection & installation tips

• Space check: compare the 330 × 210 × 50 mm overall size with the available bumper or engine-bay mounting area.
• Port matching: keep the AN10 size consistent across the cooler, hose ends, lines, and adapters.
• Oil circuit: verify whether the system is built for engine, transmission, or differential oil, because adapter choice and hose routing depend on it.
• Airflow: choose a position with clean ram air and avoid sealed or heat-soaked areas.
• Mounting: use vibration-resistant brackets and route the lines without tension, especially near exhaust parts, fans, or sharp edges.

Before installation, verify the available space, AN10 line setup, adapter, mounting points, and oil-circuit layout, then compare them with the technical details listed above.
