Key Features & Benefits – TurboWorks sport muffler 63 mm 2x77 mm

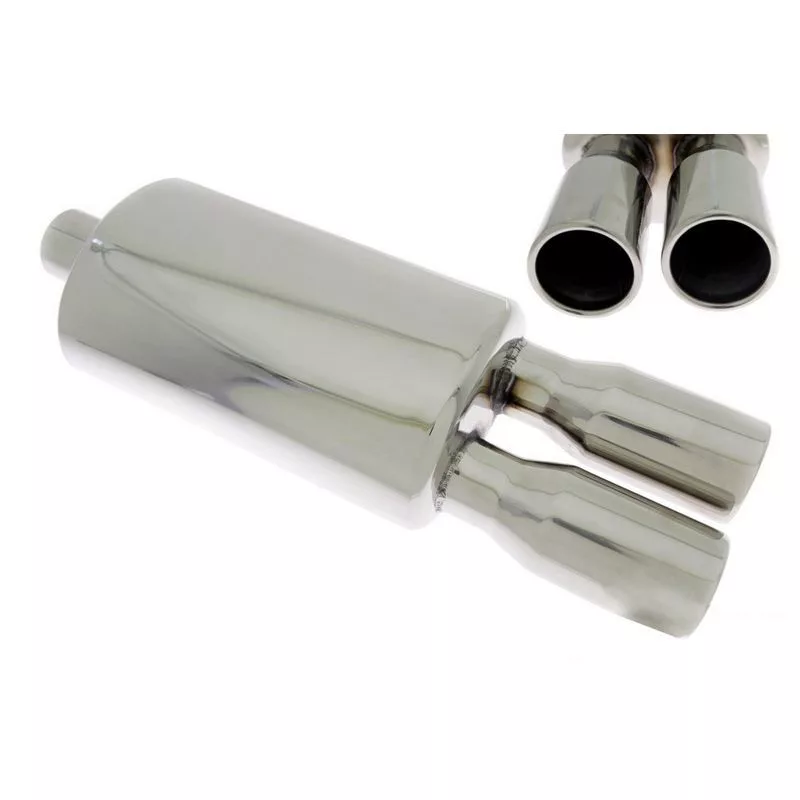

The TurboWorks sport muffler 63 mm 2x77 mm is a universal rear muffler with a 63 mm inlet and dual 77 mm outlets for custom exhaust fabrication. With the twin outlet layout, it is worth planning the final tip position against your bumper cut-out and the available space around the rear section.
Made from polished stainless steel, it has an overall length of 575 mm and a 330 mm muffler body length. The body size is 190x145 mm, and the outlet pipes are 175 mm long, which helps when setting the final exit alignment.
When is this useful?
This is useful when you are finishing a 63 mm (2.5") exhaust build with a universal muffler, while keeping a dual-exit look via the two 77 mm outlets and fitting it to your own routing.
Technical specs
- Type: universal rear muffler
- Inlet: 63 mm (2.5")
- Outlet: 2x77 mm
- Material: polished stainless steel
- Overall length: 575 mm
- Body length: 330 mm
- Body size: 190x145 mm
- Outlet pipe length: 175 mm
Selection & installation tips
- Match the inlet size: confirm your system’s connection pipe matches the 63 mm inlet (2.5").
- Check packaging space: measure clearance using the 575 mm overall length and the 190x145 mm body size, especially near the rear axle area and bumper.
- Set the exit alignment: use the 175 mm outlet length to plan where the 77 mm tips end relative to the bumper line.
- Mounting plan: as a universal muffler, hanger locations and rubber mounts must match your vehicle layout, so position and support it before final fixing.
- Heat & movement: keep safe distance to heat-sensitive parts and ensure the exhaust can move without touching the chassis under load.
Before installation, self-verify the 63 mm inlet, the 2x77 mm outlets, and the key dimensions (575 mm overall length and 190x145 mm body size), then compare them to your available space and exhaust routing plan.
