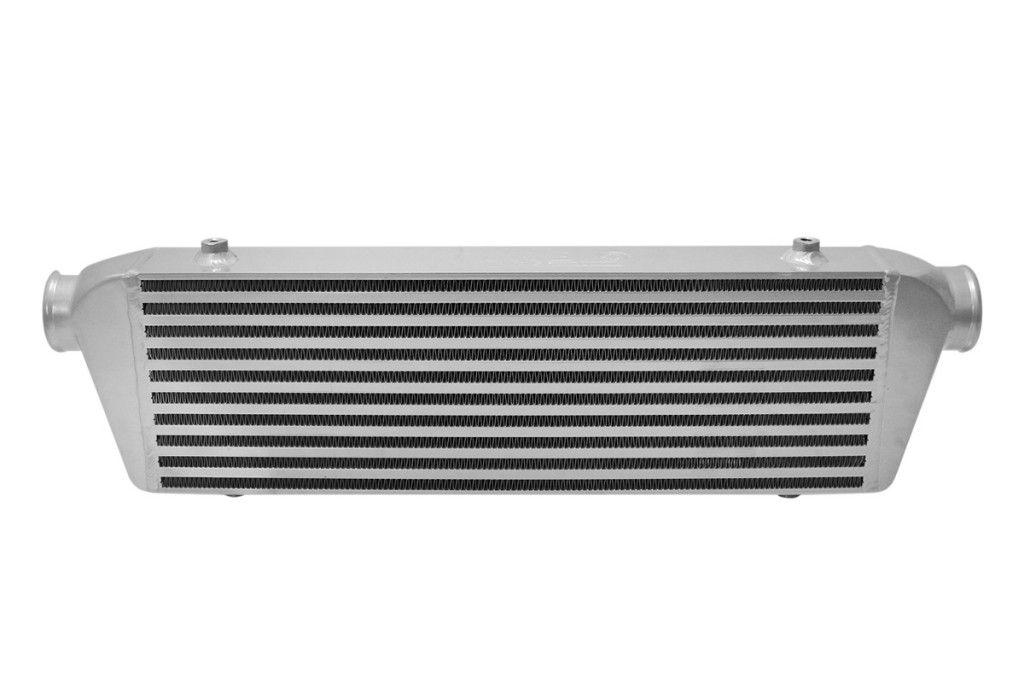

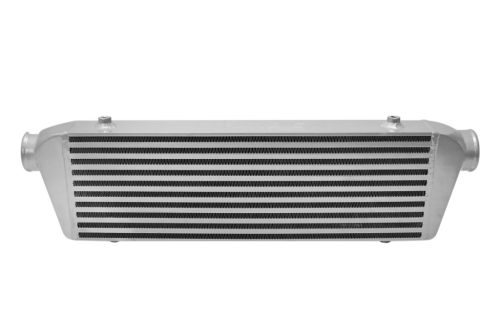

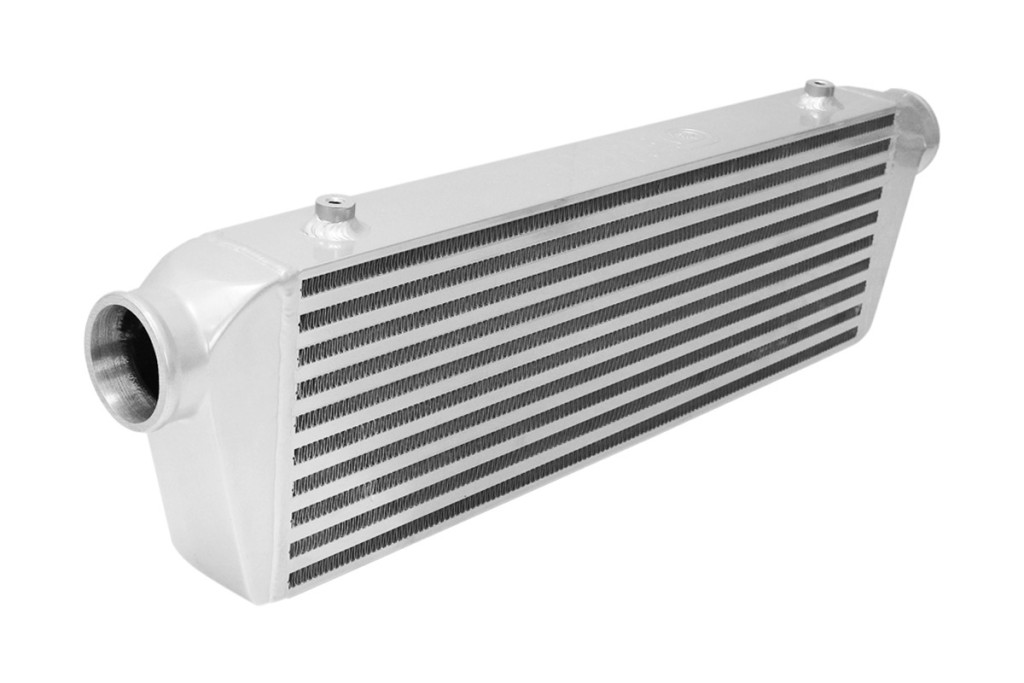

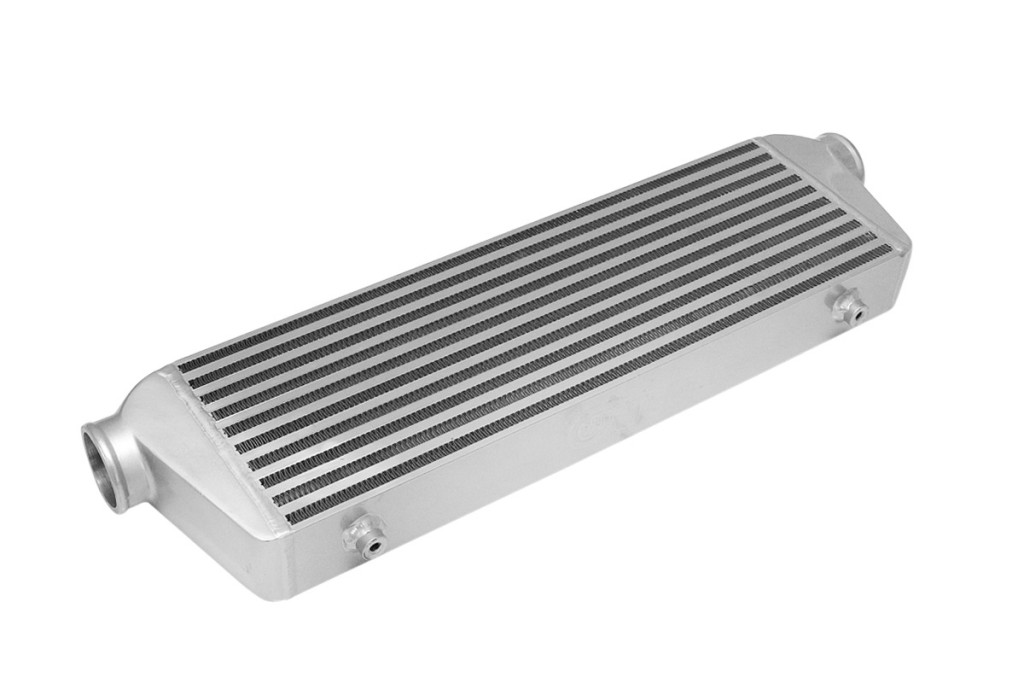

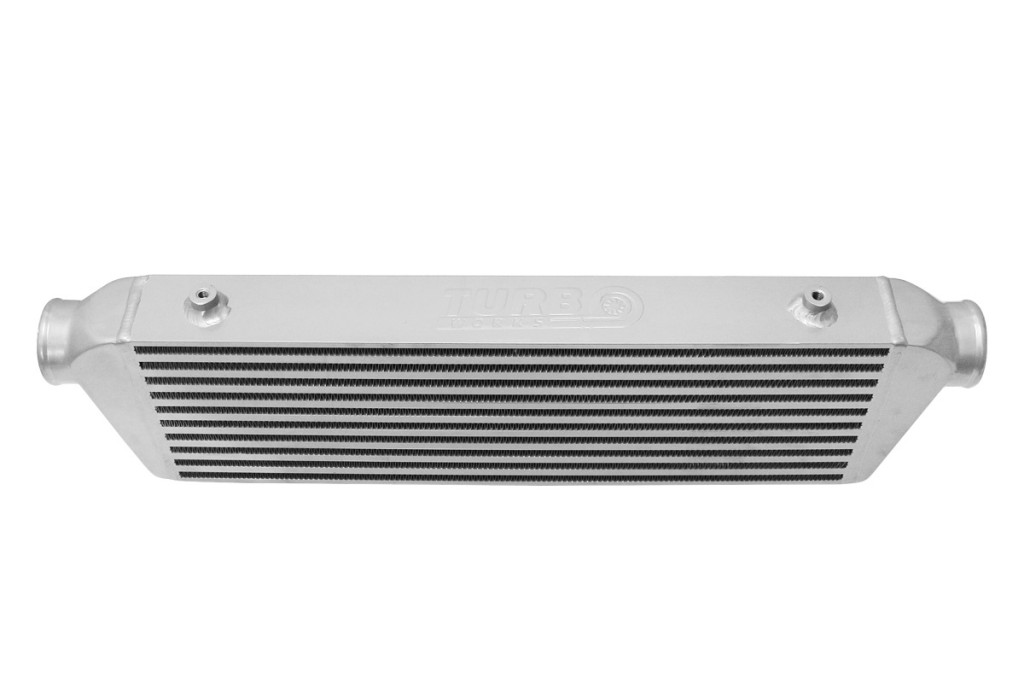

The TurboWorks universal intercooler delivers excellent thermal performance and airflow for all forced induction setups. Featuring a 550x180x65 mm core, this intercooler is optimized to reduce intake air temperatures and improve engine performance at consistent boost levels.

Utilizing COOL-TEC+ core technology, an enhanced version of the traditional bar & plate design, it features staggered internal fins that guide airflow across the entire cooling surface. This results in superior heat exchange, low turbulence, and minimal pressure drop.

Each intercooler is individually pressure tested at 10 bar, ensuring reliability even under demanding conditions.

Specifications:

Manufacturer: TurboWorks

Core Type: COOL-TEC+ Bar & Plate

Core Dimensions: 550x180x65 mm

Total Dimensions: 700x180x65 mm

Inlet/Outlet Outer Diameter: 2.5" (63 mm)

Material: T-6061 Polished Aluminum

Max Tested Pressure: 10 bar

Application: Ideal for street or track builds

Also Available:
Version with 2.25” (57mm) inlet/outlet is available.
