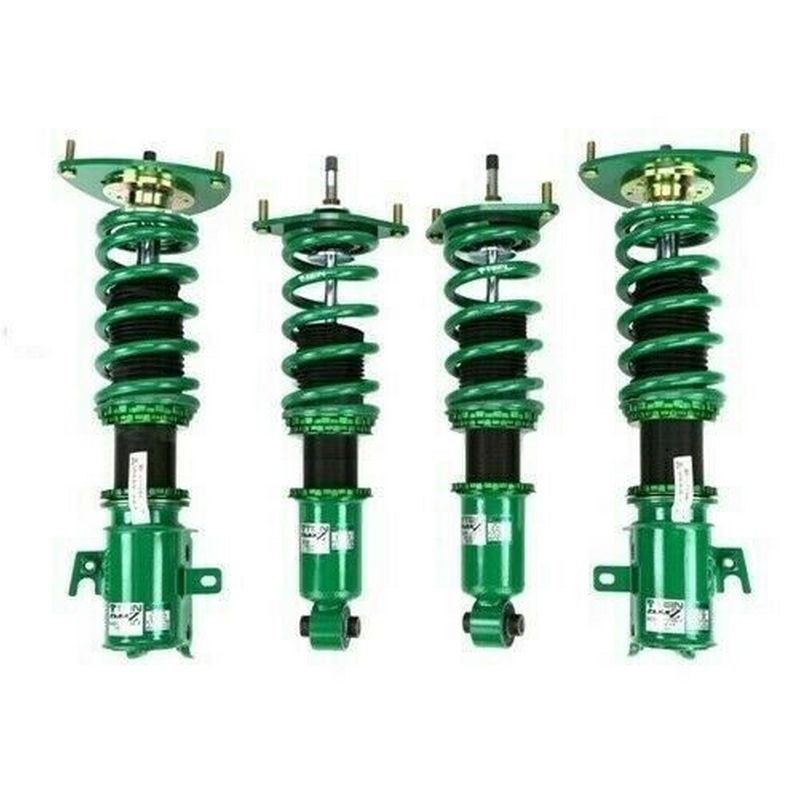

The TEIN FLEX Z coilover kit is the upgraded version of the Street Flex, designed to provide optimal comfort and sporty handling. TEIN engineers have optimized the manufacturing process to offer outstanding performance and durability at an affordable price.
Recommended lowering:
Front axle:
Standard: -35 mm
Adjustment range: -25 mm to -45 mm
Rear axle:
Standard: -30 mm
Adjustment range: -20 mm to -40 mm
Spring rates:
Front: 5.0 kgF/mm
Rear: 3.0 kgF/mm
16-stage damping adjustment for precise handling and comfort tuning.
Compatible with TEIN EDFC (EDK05-12140) for in-car electronic damping control.
Includes upper mounts for a hassle-free installation.
Rust-resistant coating and dust boots ensure long-lasting durability.
1-year warranty and high-quality Japanese manufacturing.
The twin-tube gas-oil technology provides smooth comfort at low speeds while ensuring exceptional stability at high speeds and on track. The improved damper oil formula enhances temperature resistance and longevity.
Note: The TEIN FLEX Z uses a sealed damper system, meaning replacement is only possible via a complete damper unit, offering a cost-effective and quick solution.
Important:
Additional components may be required for safety and installation. The front luggage box cover may need modification or removal on some models.
