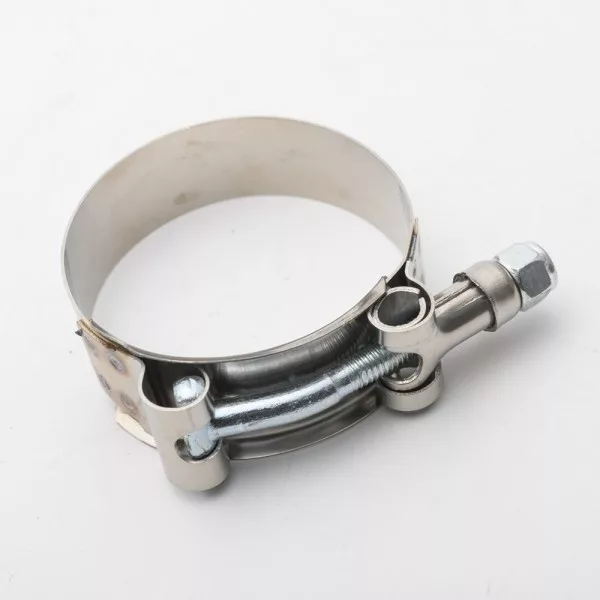

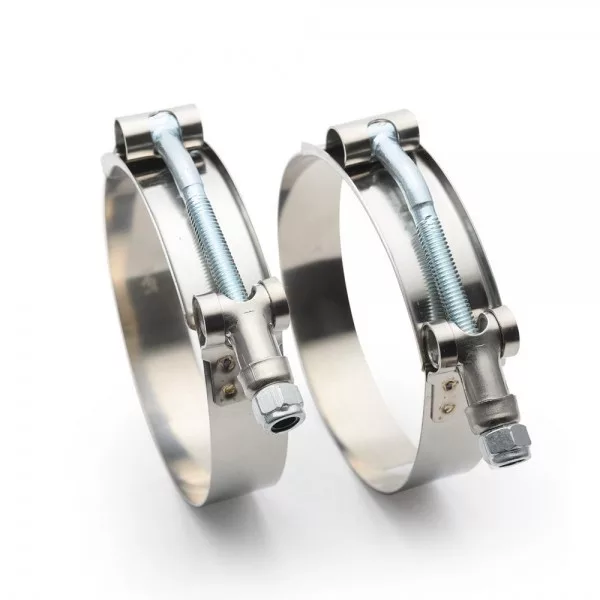

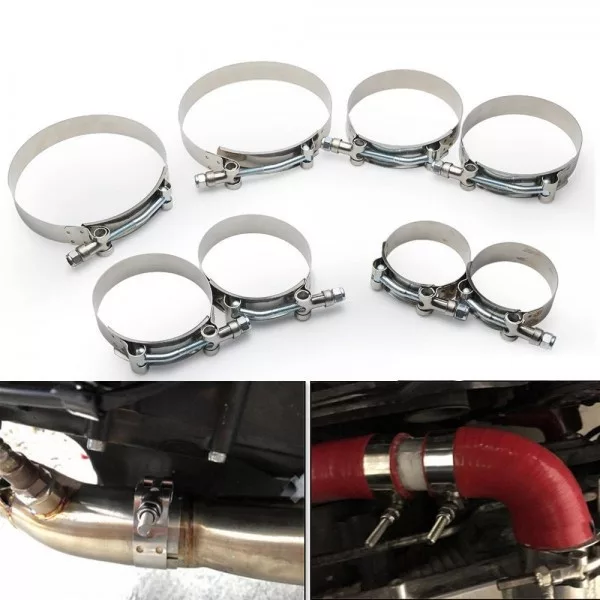

Key Features & Benefits – Stainless steel T-bolt hose clamp 71–79 mm
The Stainless steel T-bolt hose clamp 71–79 mm is designed for hose-to-pipe joints with an installed outside diameter within 71–79 mm. A T-bolt hose clamp layout uses a wide band to help distribute clamping force more evenly around the hose.
Stainless steel construction suits environments where clean surfaces and durable fastening matter. Best results come from full hose seating on the fitting and placing the clamp behind the bead rather than on top of it.
When is this useful?
It is useful when you need to secure a hose on a fitting in the 71–79 mm range and want stable retention, helping reduce the chance of the hose walking past the bead. Correct sizing and placement are the key factors.
Technical specs
- Product type: T-bolt hose clamp
- Material: Stainless steel
- Adjustment range: 71–79 mm
- Identifier: KG73
Selection & installation tips
- Measure diameter: measure the hose outside diameter on the fitting and confirm it falls within 71–79 mm.
- Aim for mid-range: avoid sizing that leaves you at the extreme ends of the adjustment range.
- Place behind the bead: position the clamp behind the bead so the hose can seat against it properly.
- Tighten evenly: tighten gradually and keep the band square to prevent uneven loading.
- Re-check after use: after initial heat cycles or first use, re-check clamp tightness as the hose can settle.
Before fitting, compare your measured installed diameter, bead position, and tool access to the 71–79 mm range, then confirm placement and even tightening so the clamp matches your specific joint.
