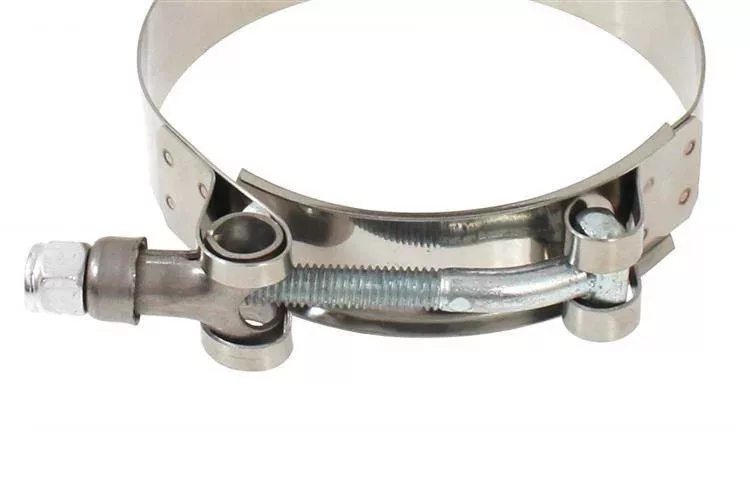

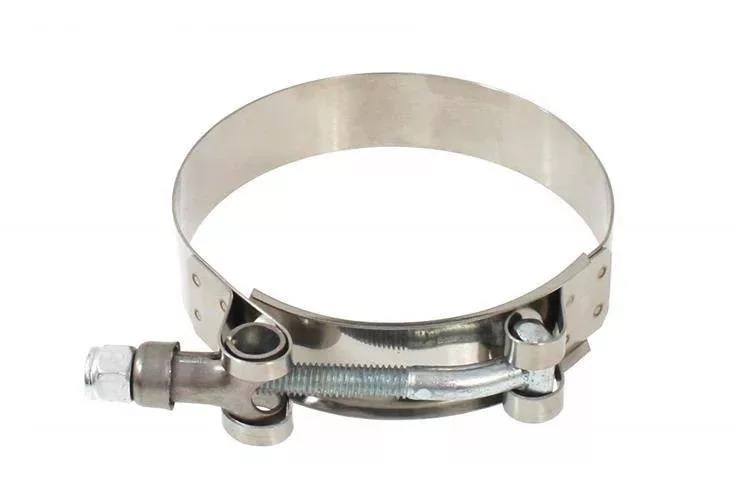

Key Features & Benefits – Stainless steel T-bolt hose clamp 60–67 mm
The Stainless steel T-bolt hose clamp 60–67 mm is designed for hose/pipe joints with an installed outside diameter within 60–67 mm. The T-bolt hose clamp layout uses a wide band that helps spread clamping force more evenly around the hose.
It is made from stainless steel, and practical fit depends on hose material, the fitting bead, and tool access at the install location. A cleaner fit is usually achieved when your measured diameter sits closer to the middle of the adjustment range.
When is this useful?
It is useful when you want a wide-band T-bolt style clamp for a 60–67 mm joint and you prefer this design over a worm-drive clamp for seating consistency.
Technical specs
- Product type: T-bolt hose clamp
- Material: Stainless steel
- Adjustment range: 60–67 mm
- Identifier: EP-KG60
Selection & installation tips
- Confirm size: measure the hose outside diameter on the fitting and ensure it falls within 60–67 mm.
- Position correctly: place the clamp behind the bead so the hose seats fully on the fitting.
- Tighten gradually: tighten evenly and ensure the band stays square on the hose.
- Check access: make sure you have tool access to the T-bolt nut at the installation point.
- Re-check: after initial heat cycles or first use, re-check clamping as the hose can settle.
Before fitting, compare your measured installed diameter, fitting bead position, and tool access with the 60–67 mm range, then install with correct positioning and even tightening to match your specific joint.
