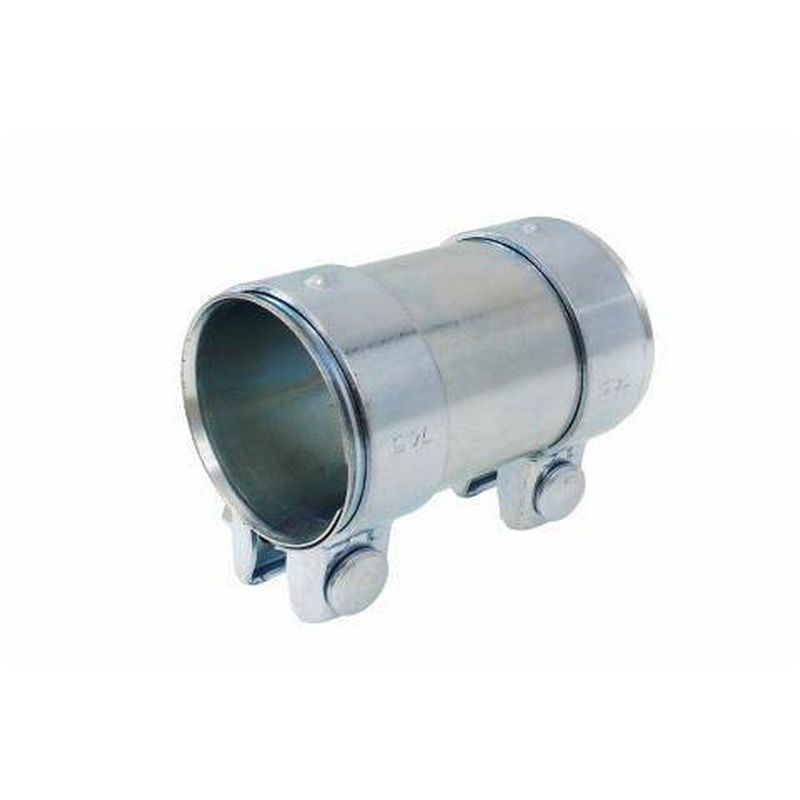

Key Features & Benefits – Stainless steel exhaust pipe connector with clamps 89 mm
The Stainless steel exhaust pipe connector with clamps 89 mm is a clamp-style connector for 89 mm piping with 125 mm overall length. It is made from 304SS stainless steel, making it a solid choice for custom exhaust and intake fabrication.
The clamp-style retention supports easier disassembly compared to a fixed joint, which can be useful during build iterations and servicing. Fitment depends on matching the pipe diameter and the mating surfaces.
When is this useful?
It is useful when you want to join 89 mm pipe sections in a way that remains easy to remove later, for testing, revisions, or service access. Clamps can simplify the joint compared to a permanent welded connection in the same area.
Technical specs
- Diameter (D): 89 mm
- Overall length: 125 mm
- Material: 304SS stainless steel
- Type: pipe connector with clamps
Selection & installation tips
- Diameter match: measure the outer size of your pipe ends and match them to the 89 mm connector.
- Length planning: account for the 125 mm overall length so your routing and clearances stay correct.
- Clamp access: leave space to tighten the clamps and make sure they do not hit shields, bodywork, or brackets.
- Pipe end prep: after cutting, deburr and clean the pipe ends for consistent mating surfaces.
- In-use check: after heat cycles, re-check the joint and confirm clamp tightness.
Before installation, compare your pipe diameter, the 125 mm packaging length, and clamp clearance to your exact exhaust layout, then verify everything against the technical specs above for correct fit.
