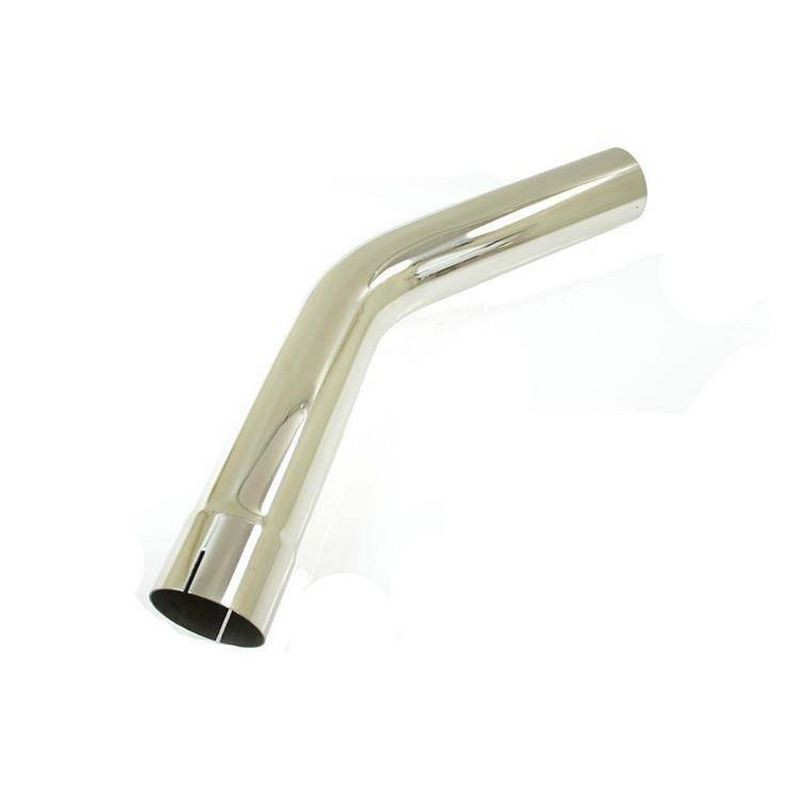

Key Features & Benefits – stainless steel exhaust pipe 45deg 2.5" 610 mm
This stainless steel exhaust pipe 45deg 2.5" 610 mm is a weldable pipe section for building custom intake and exhaust layouts. The 2.5" (63 mm) diameter matches setups that use 2.5" as the baseline size for connecting parts.
The 45° bend helps you fine-tune the route when clearance or packaging makes a straight run impractical. The overall length is commonly trimmed to suit your exact build, making it easy to integrate into a made-to-measure exhaust pipe section.
When is this useful?
Use it when you need a mild change in direction to route around heat shields, chassis elements, or suspension components without a sharp turn. It also works well in custom exhaust fabrication when you want to connect 63 mm sections in a tidy, serviceable way.
Technical specs
- Material: 304SS stainless steel
- Angle: 45°
- Diameter (D): 2.5" (63 mm)
- Wall thickness: 1.5 mm
- Overall length: 610 mm
Selection & installation tips
- Diameter check: confirm whether your mating parts are defined by OD or ID and match the 2.5" (63 mm) size to your joining method.
- Routing allowance: mark cut points in advance and leave allowance for precise positioning and the weld bead.
- Join type: decide between clamped or welded joints and keep enough straight section for a stable connection.
- Clearance & heat: maintain safe spacing to the body and heat-sensitive components, and plan proper hangers/support.
- Prep before welding: clean the cut edges and the joint area to help achieve an even, consistent weld.
Before installation, measure your intended route and compare diameter, wall thickness, and available space against the specs above. For a predictable fit, also verify how your connecting parts are sized and where the system will be supported.
