Key Features & Benefits – Stainless steel elbow 45deg 57 mm 40 cm

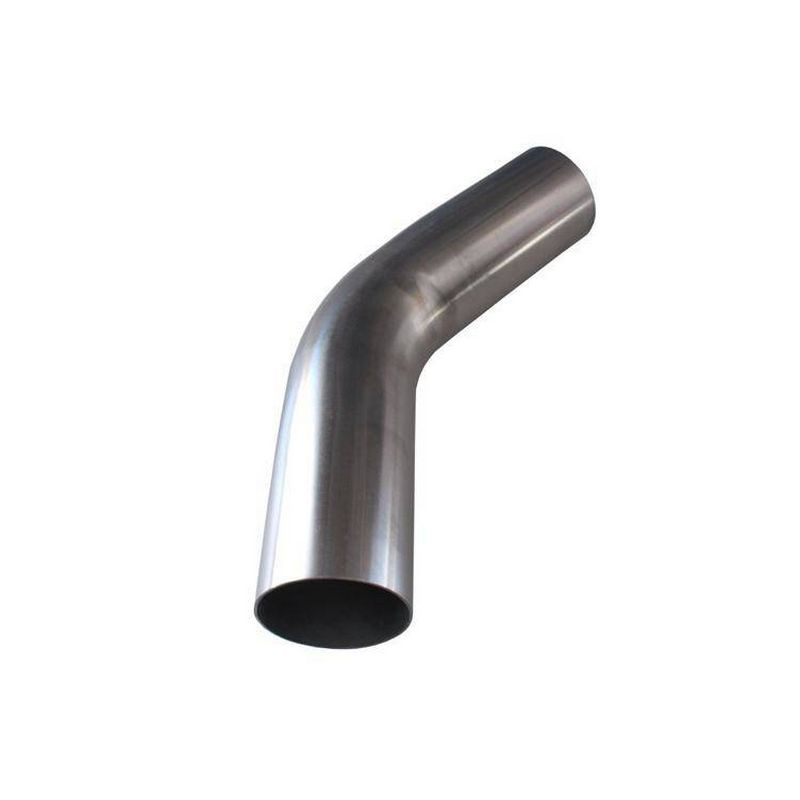

The Stainless steel elbow 45deg 57 mm 40 cm is a universal elbow section for intake and exhaust system piping. It is made from 304SS stainless steel with a 45deg bend.
The 57 mm diameter is measured on the outside of the pipe, with 1.5 mm wall thickness. It has a 20 cm arm length and 40 cm total length, which helps when planning routing and cutting to fit.
When is this useful?
It is useful when you need a 45-degree turn between straight sections and want to match the diameter to your existing piping, couplers, clamps, or welded joints.
Technical specs
- Type: 45deg elbow
- Diameter (D): 57 mm (outside)
- Wall thickness: 1.5 mm
- Arm length: 20 cm
- Total length: 40 cm
- Material: 304SS stainless steel
- Use: intake and exhaust systems
Selection & installation tips
- Diameter definition: match the 57 mm outside diameter to your mating pipes, sleeves, and clamp size.
- Packaging check: use the 20 cm arm length and 40 cm overall length to confirm it fits your available space.
- Dry-fit orientation: set the 45deg direction during a dry fit so the routing is not preloaded and clearances remain.
- Joint plan: decide on welded vs clamped joints first and prepare the ends to suit the chosen method.
- Leak check: after assembly, re-check all joints so the system remains sealed under load and vibration.
Before final installation, verify your required connection sizes and packaging, then compare them to the diameter, wall thickness, and length specs above so the elbow matches your intended routing.
