All pumping components have been validated to OEM specifications for approved use in E85/flex fuel applications

100% Authentic & Genuine Walbro/ TI Automotive E85 Racing In tank 525 LPH high pressure fuel pump with installation kit

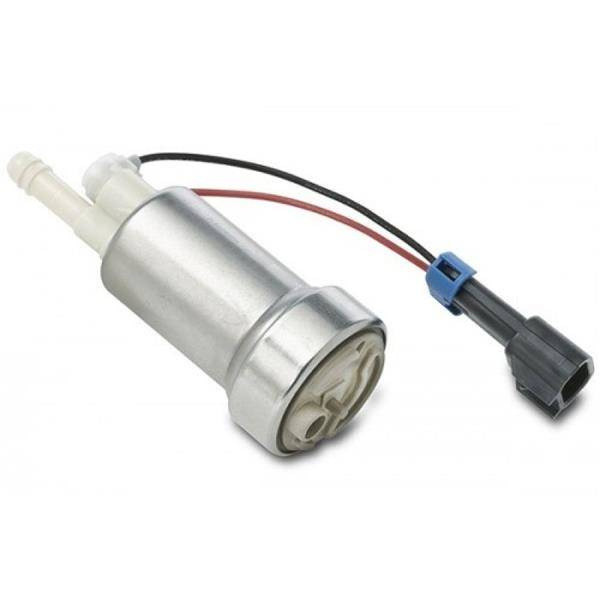

TI Automotive Walbro F90000285 internal E85 HP RACING fuel pump plus Install kit

The F90000285 requires modifications to system wiring, fuel lines and the fuel module, and should be professionally installed.

The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades.

Designed for high performance engines exceeding 900hp.

Designed for E85 or Gasoline applications.

The blades feed two high-pressure pumping channels, as opposed to a conventional single-stage pump that uses an impeller with a single row of blades at its outer edge.

This innovative design results in improved hot fuel flow, as well as minimal noise and current use, resulting in efficiency that's 20 percent higher than conventional pumps. SPECIFICATIONS 470 lph @ 40 psi and 13.5V (14.1 amps) in gasoline Outlet diameter: 11mm, Diameter (upper body) 39mm Diameter (lower body) 50mm
