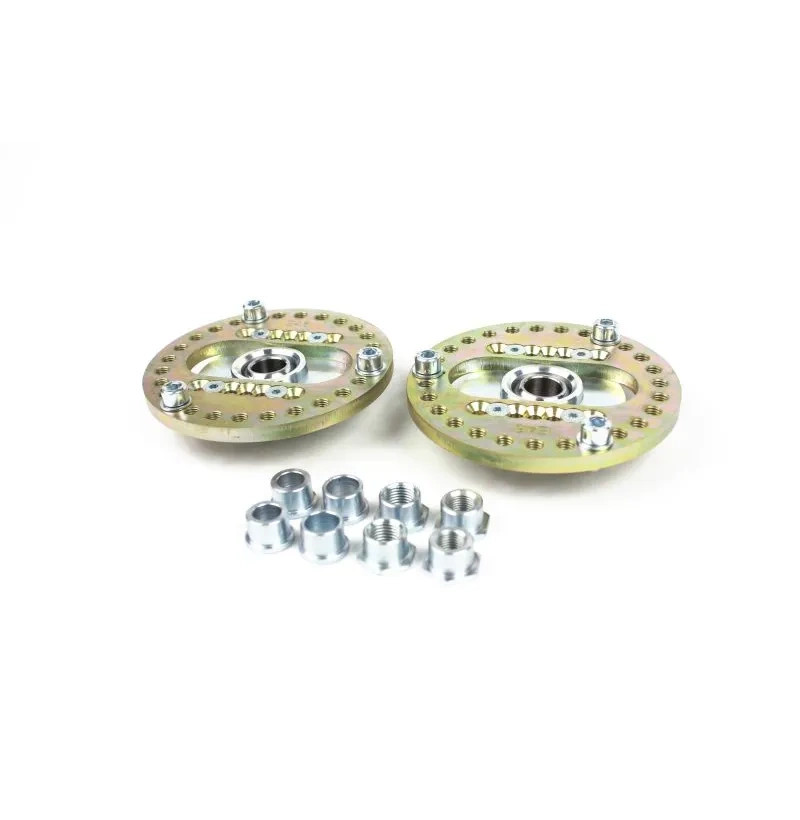

The set includes two pieces of 3D CAMBER PLATES V3 for BMW E30, E34, E32, E24, and E28. This set has been specifically designed for the installation of front wheel camber angle adjustment and KWSZ (caster) adjustment in the vehicle. Thanks to this functionality, the steering of the car can be set up to be as efficient as possible, and the steering wheel will return smoothly. Adjusting the front wheel angle allows the owner to achieve the most optimal driving characteristics.

Thanks to the “recessed” adjustment in the plate, its potential can be fully utilized.

WARNING: THREADLOCKING COMPOUND MUST BE USED WHEN TIGHTENING CAMBER PLATE BOLTS!

Technical Description:

Camber Plate:

• Made from 8mm thick structural steel, grade S355

• Milled on CNC machines

• Zinc-coated in gold color

Bearing Housing:

• Turned on CNC automatic lathes

• Made from high-quality structural carbon steel

• Additionally zinc-coated

Bearing:

• Maintenance-free, with reduced bearing clearance

• Designed for high loads, made of stainless steel

Mounting Bolts: M8, fine thread, zinc-coated

Flange nuts and Schnorr washers included to prevent loosening
