PMC Motorsport Aluminium adapter (flange / orifice) BMW V12 M70 M73 - AUDI 01E 2.5 TDI

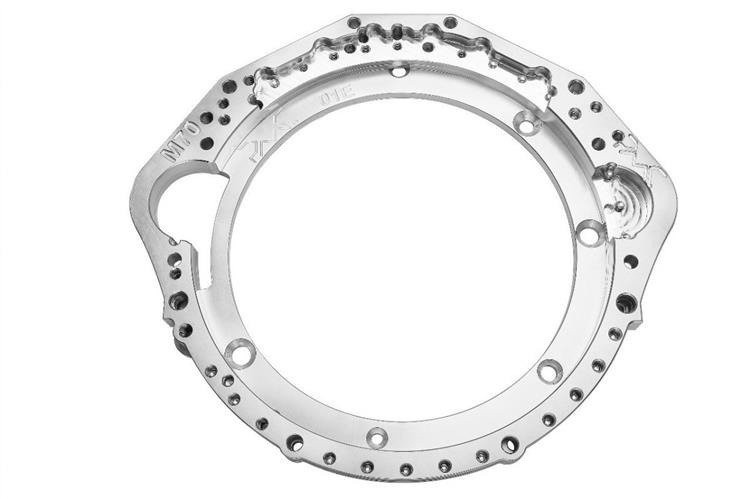

Aluminium adapter designed for the conversion (swap / connection) of the BMW V12 M70 M73 engine with manual transmission from Audi.
Thanks to the use of a measuring arm during the design process and the use of precision CNC machines - the adapter ensures perfect concentricity of the engine and transmission

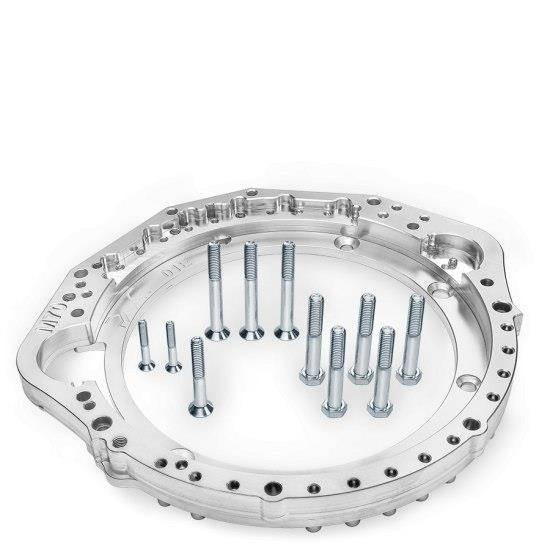

Kit includes:
Aluminium adapter
Necessary mounting screws
Suitable BMW engines:
BMW M70 M70B50
BMW M73 M73B54
BMW S70 S70B56 S70B60
Fitting manual transmissions:
Audi 01E 2.5 TDI
A custom flywheel is required for connection.
PMC Motorsport adapters are designed and manufactured in the European Union.
Quality confirmed by ISO EN ISO 9001:2015 certification
Engine model: BMW V12 M70 S70, BMW V12 M73
Gearbox model: Audi 01E (2.5 TDI V6)
ADDITIONAL INFORMATION
Custom flywheel required: Yes
Adapter thickness: 35mm / 1.37"
Set contains : Aluminium gearbox adapter, Screws for installation of adapter
Material: Aluminium
Sales codes of the products in the set: F0TDI-M7
