Designed for use for sports purposes. The brake is characterized by a very solid design has a collection for brake fluid.
Brake pump piston diameter: 0.75"

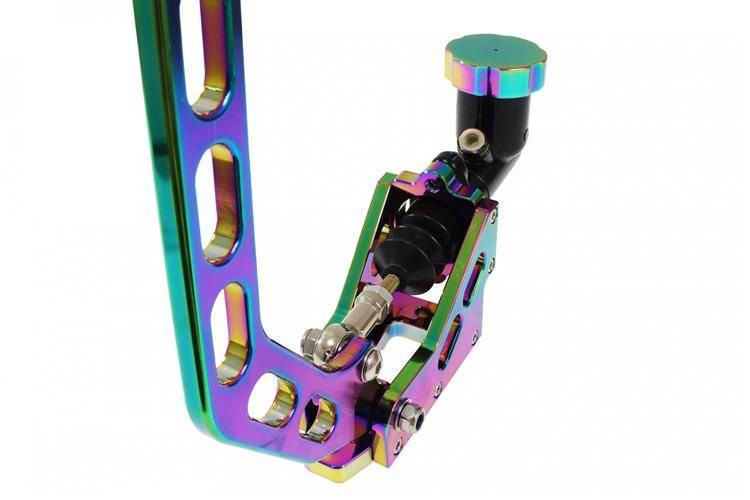

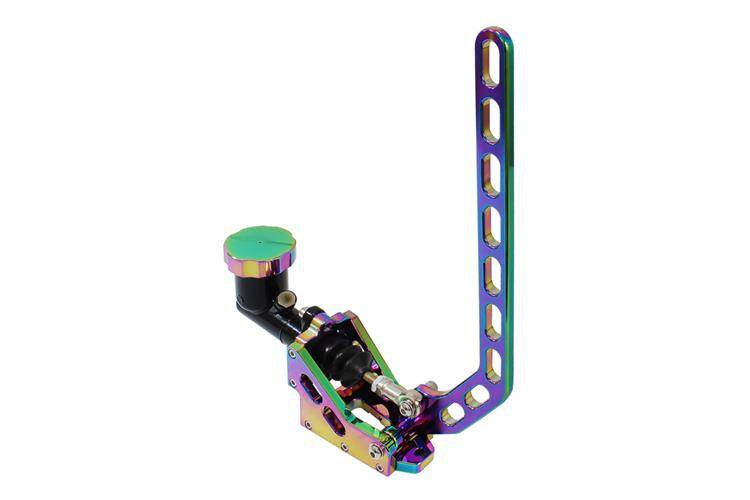

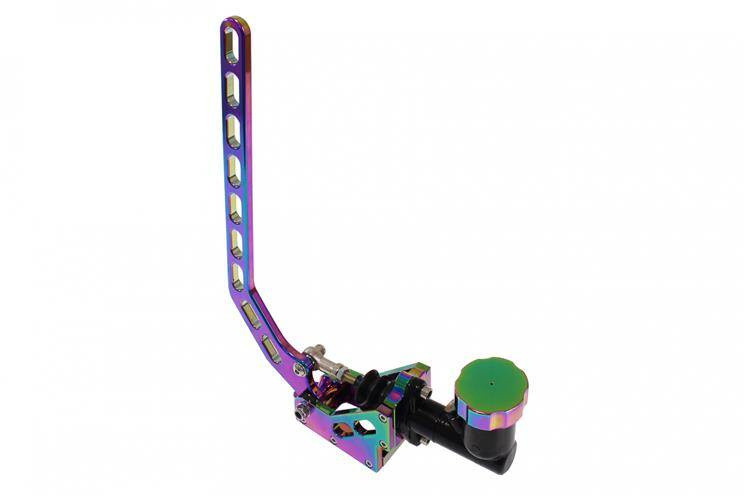

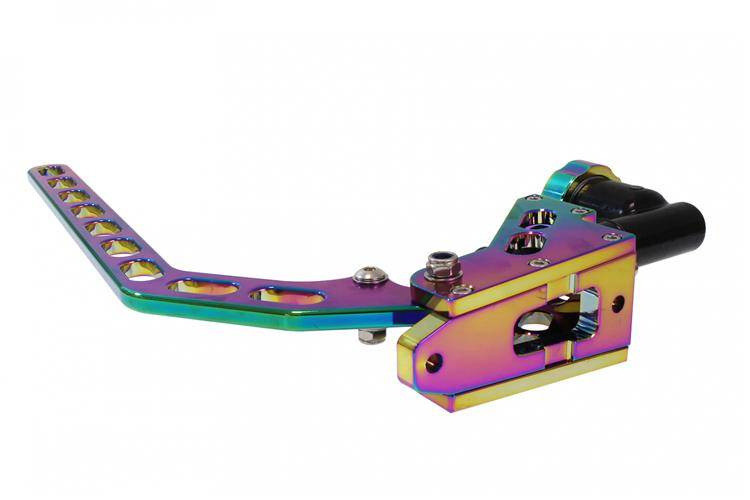

The set includes the elements shown in the pictures below:
- handle with fixing,
- brake pump.
The brake pump has connectors:
- inlet - AN4 - 7/16"
- outlet - AN3 - 3/8"
Rigid (copper/steel) or flexible fittings and sports brake hoses are available at our shop.
Installation on elestic wires does not require a specialized clamping machine for wires.
For high-performance braking systems, the standard is the size of an AN3 - it applies to both wires, where the diameters will be 3.2mm inside, and 7.5mm outside, as well as clamping fittings for such wires and threaded, with thread size 3/8 inches.
Thanks to the many connecting elements in our store, you can complete the finished assembly set in many different ways:
- Installation in the system, on serial wires.
- Mounting on flexible cables for serial clamps, connect them with a double banjo screw at the terminals.
- Installation as a separate system for the added clamps, with an expansion system on the pump.
- Mounting to serial clamps while unfastening the foot brake.
- and many others..
