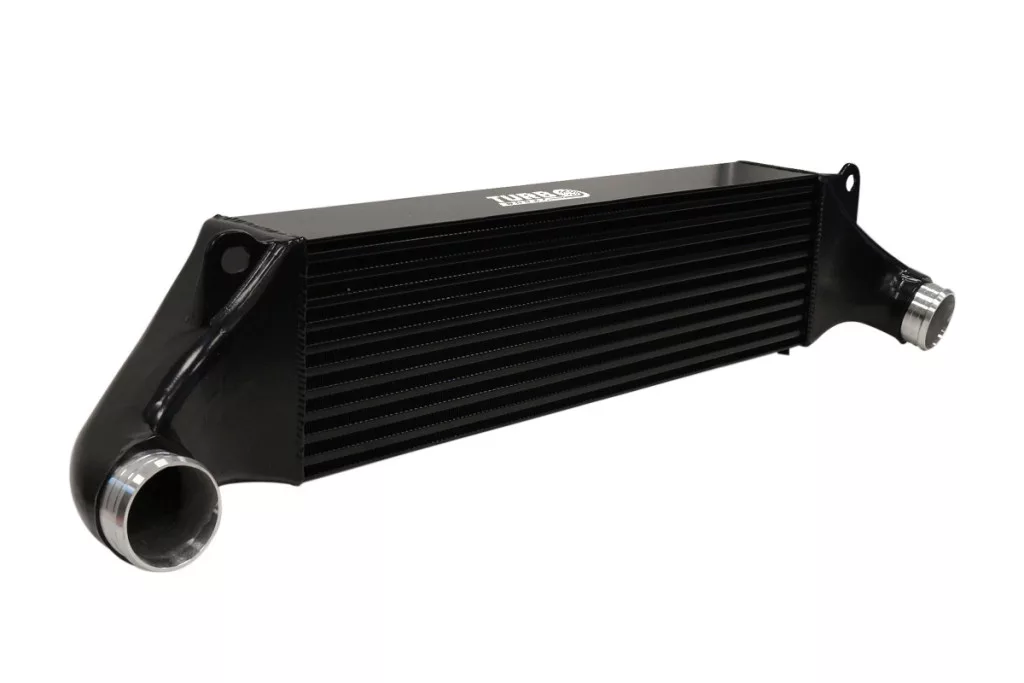

INTERCOOLER for the brand and model given in the subject name. The whole is made very carefully and accurately, the welded elements are so-called TIGIEM, T-6061 Aluminum.
The dimensions of the core itself:
- Width: 660mm
- Height: 180mm
- Thickness: 100mm
Inlet/Outlet: 60mm
Our intercoolers were one of the few tested over 10 bars.
TurboWorks intercoolers have an efficient COOL-TEC + core, walls made of the highest quality polished aluminum.
Other cores have less frequently arranged ribs, resulting in poor cooling, while COOL-TEC + cores are made of finer-sized ribs, which guarantees a significant improvement in cooling.
Application:
| Make | Engine Type | Engine CCM | Engine HP (KW) | Year From - Year To |
|---|
| AUDI A3 Limousine (8VS, 8VM) (2013-) | RS3 quattro (DAZA, DNWA) | 2480 | 400 (294) | 2017 - 2020 |
| AUDI A3 Sportback (8VA, 8VF) (2012-2020) | RS3 quattro (DAZA, DNWA) | 2480 | 400 (294) | 2017 - 2020 |
| AUDI Q3 (F3B) (2018-) | 2.5 RS quattro (DAZA, DNWA) | 2480 | 400 (294) | 2019 - |
| AUDI Q3 Sportback (F3N) (2019-) | 2.5 RS quattro (DAZA, DNWA) | 2480 | 400 (294) | 2019 - |
| AUDI TT (FV3, FVP) (2014-) | 2.5 RS quattro (DAZA, DNWA) | 2480 | 400 (294) | 2016 - |
| AUDI TT Roadster (FV9, FVR) (2014-) | 2.5 RS quattro (DAZA, DNWA) | 2480 | 400 (294) | 2016 - |
