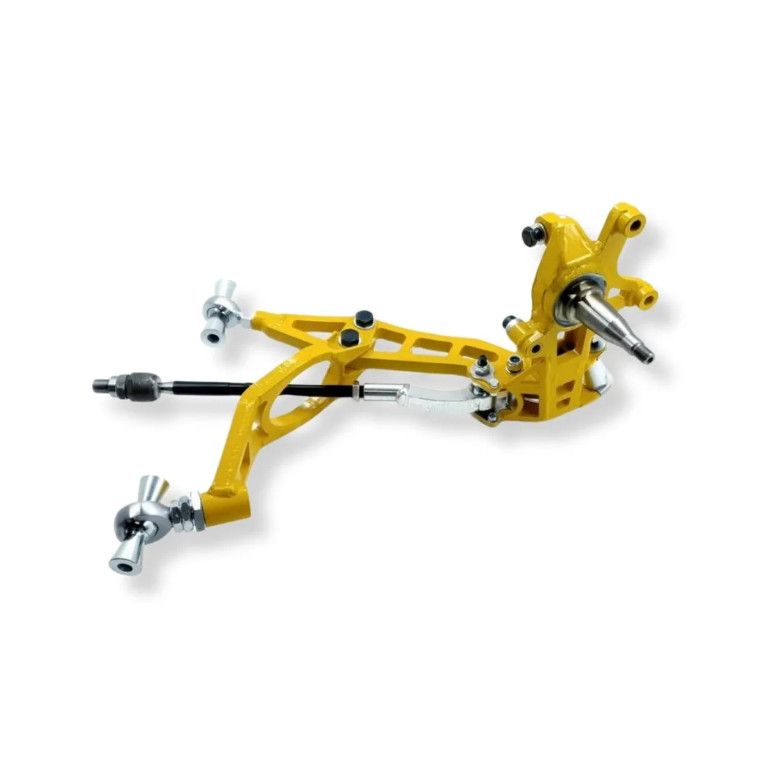

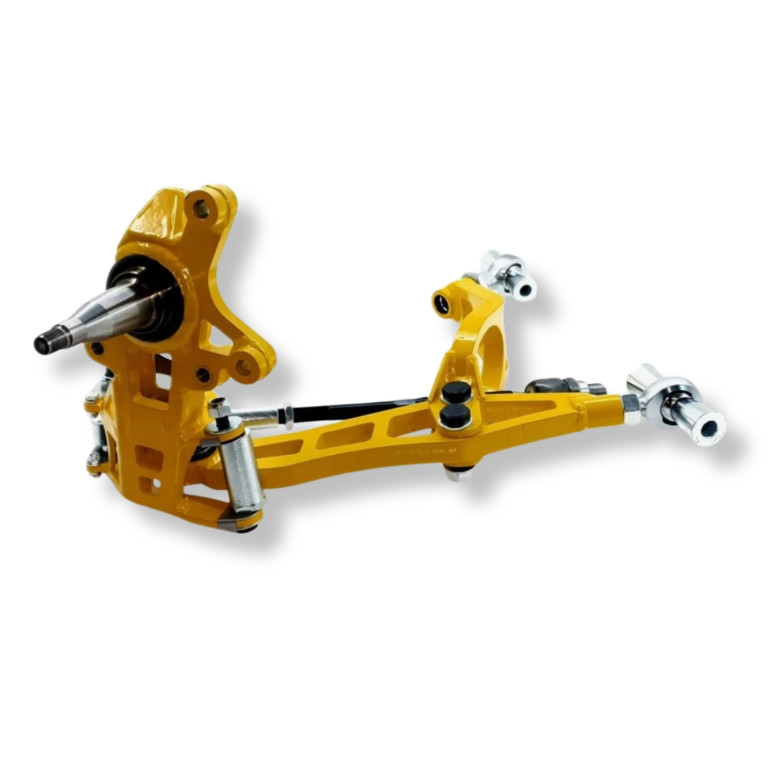

The kit is fully adjustable and offers:
Adjustable Ackermann
Adjustable steering stops (eccentric bushings)
Adjustable camber
Adjustable caster
The kit includes:

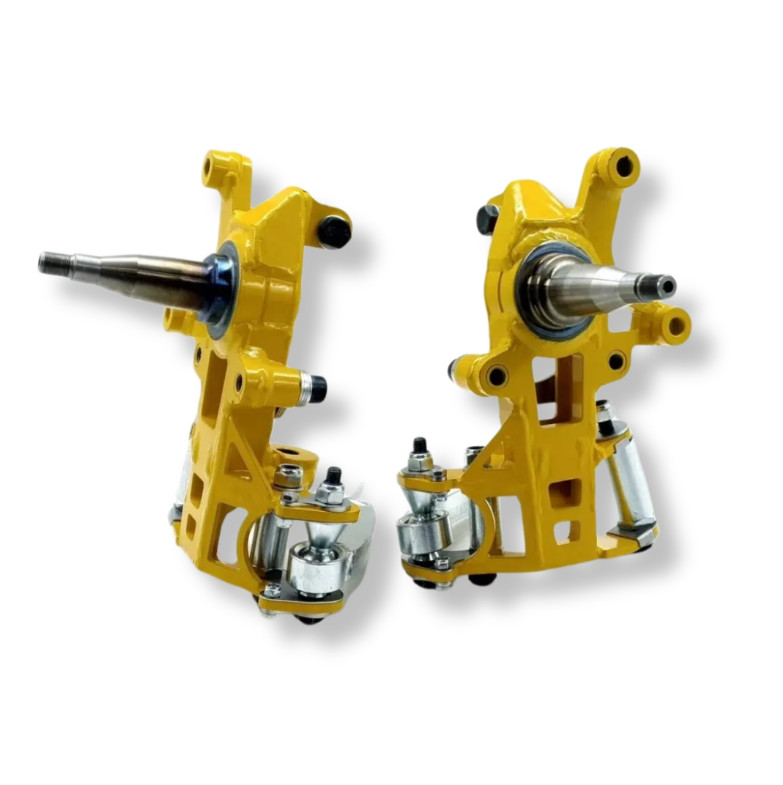

2 steering knuckles

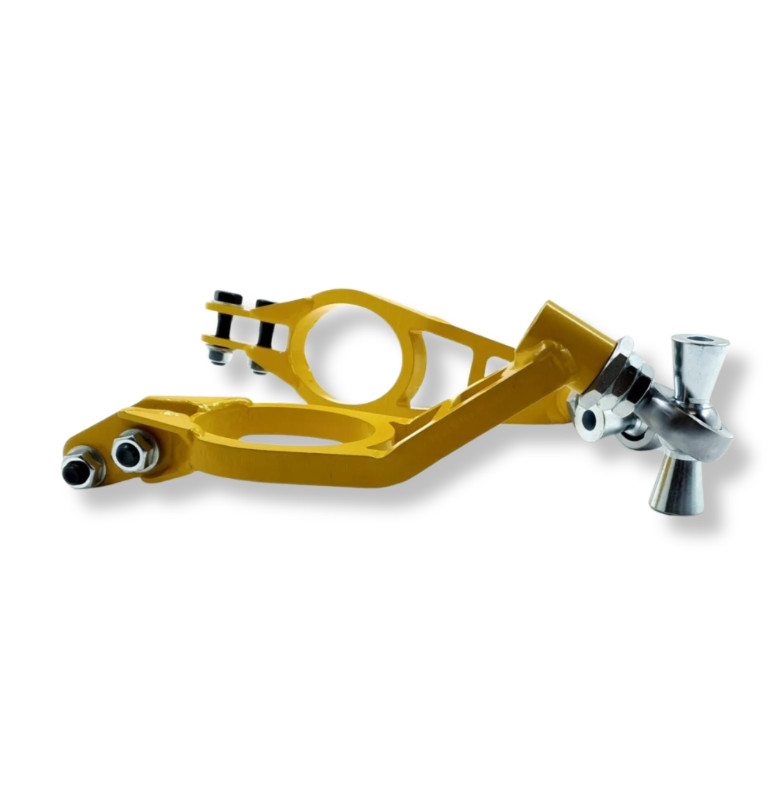

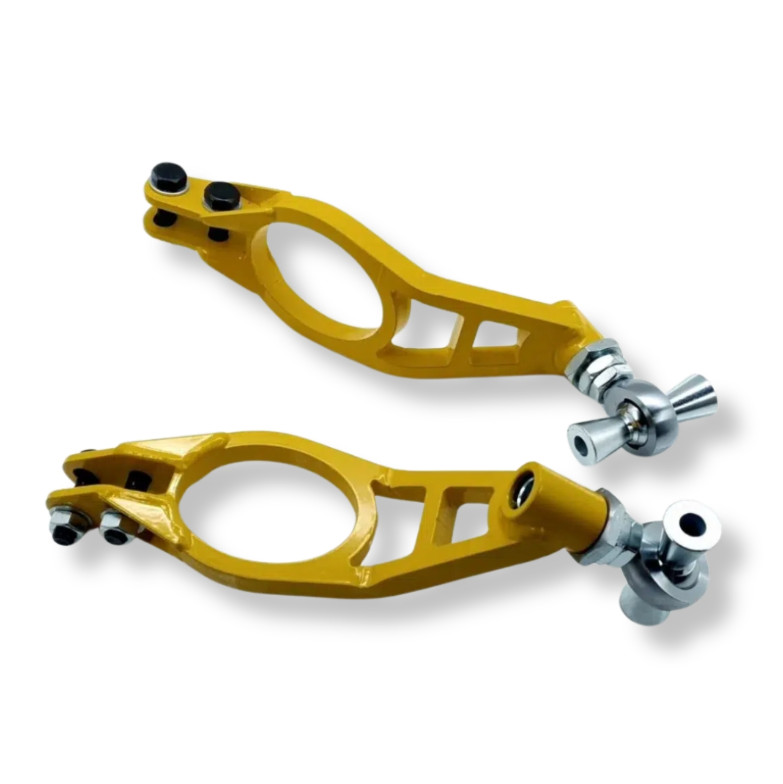

2 suspension arms
2 adjustable caster arms

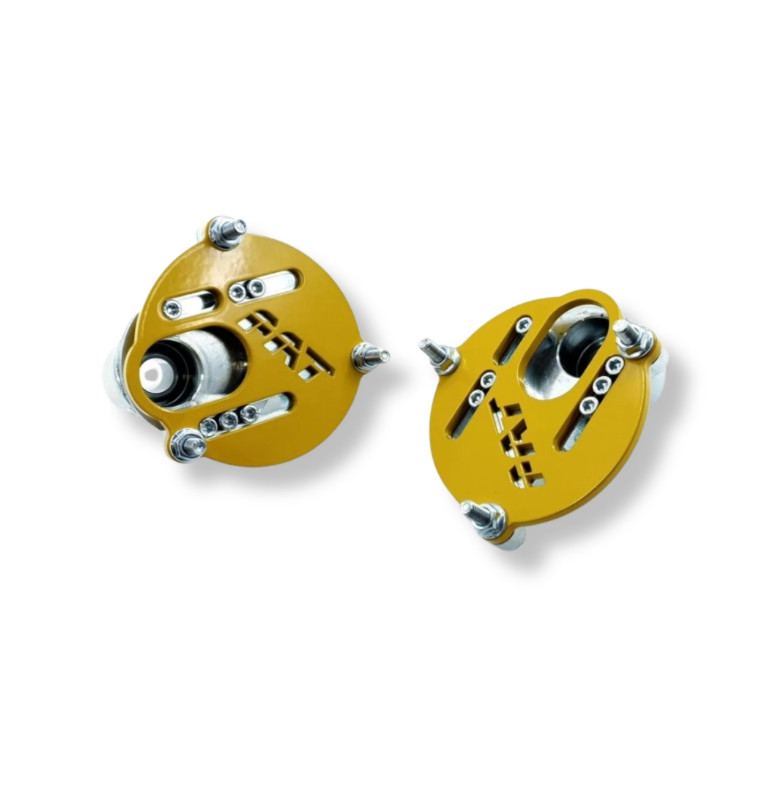

2 adjustable upper relocators
2 steering rods with rod ends

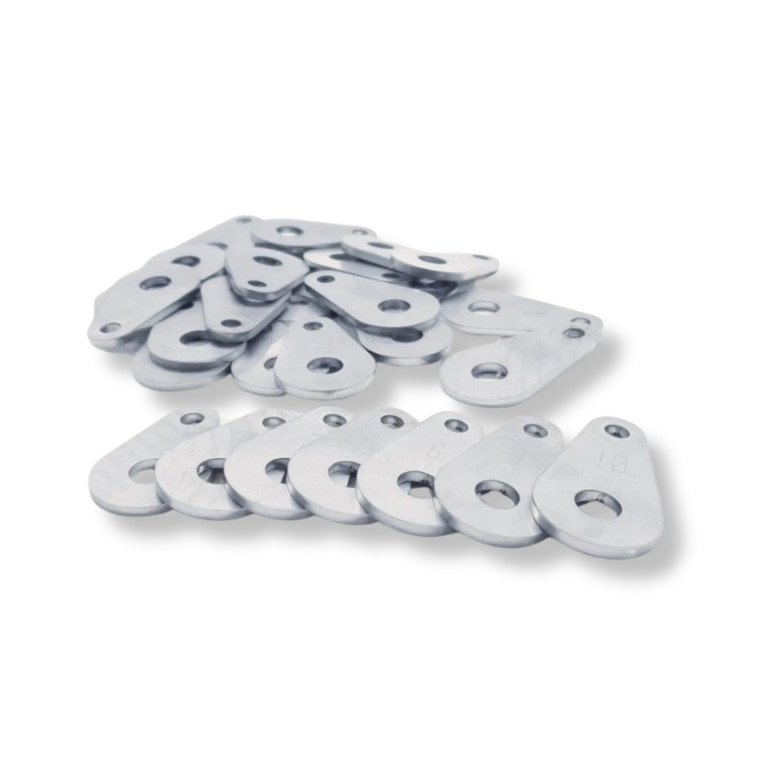

1 Ackermann kit (32 locking plates)
1 set of screws

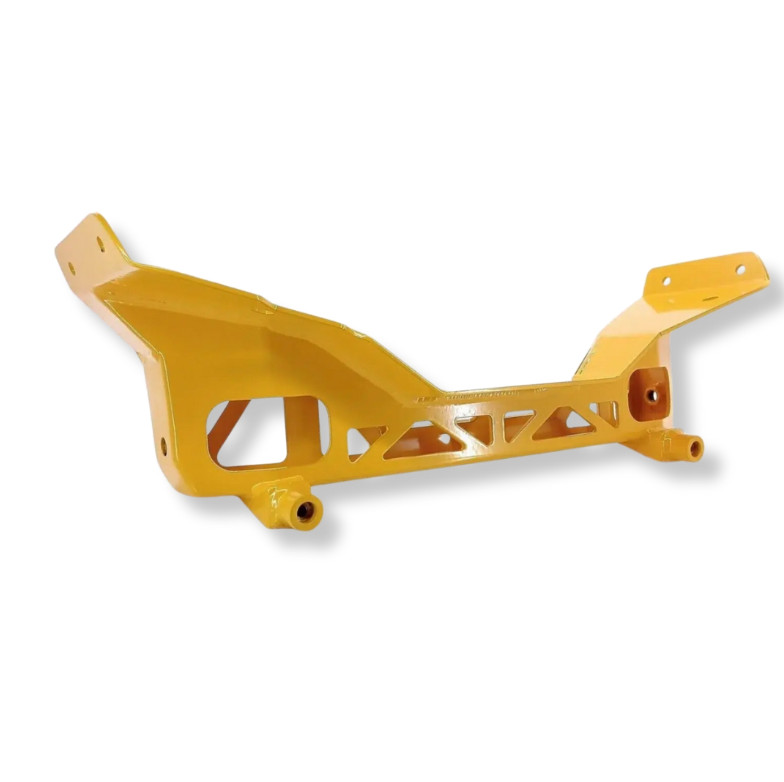

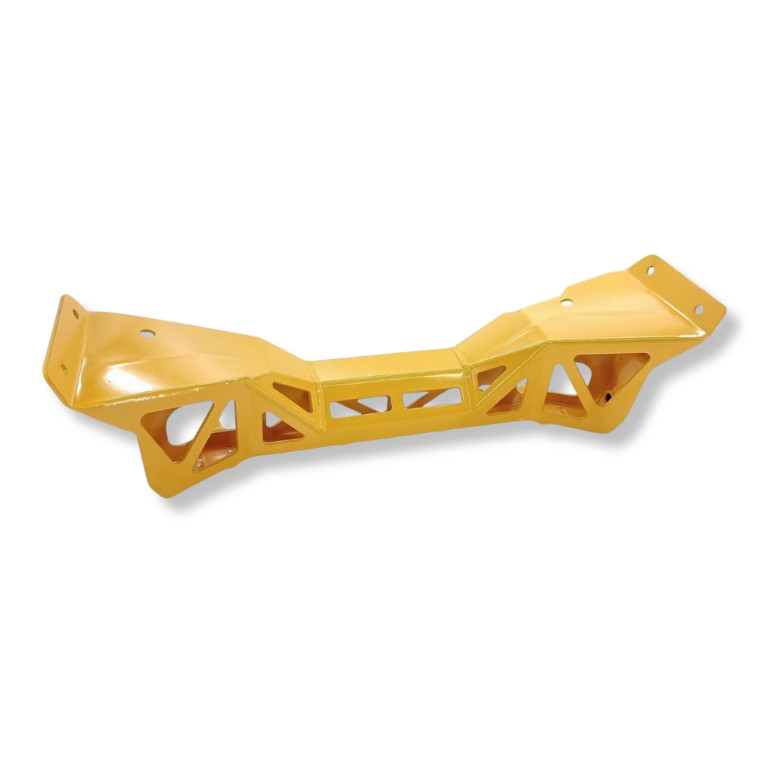

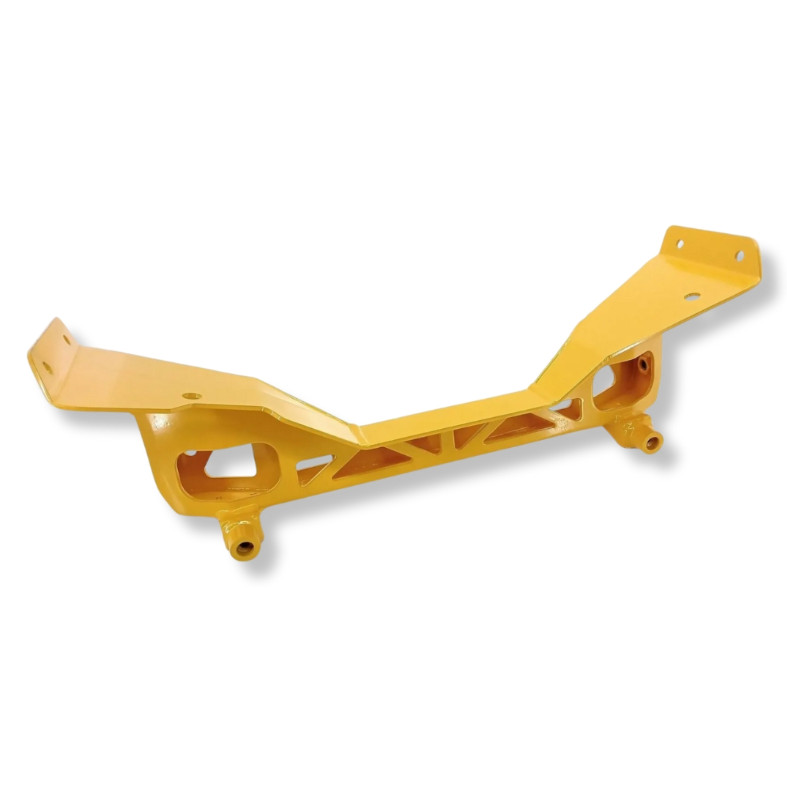

1 subframe
Coilovers dedicated to the BMW E36 are required, with a maximum spring diameter of 90 mm.
The subframe is bolted directly to the stock front arm mounts. Installation instructions are included.
The steering gear must come from a BMW E39, but with the opposite steering position.
Example:
If the car is LHD, the steering gear must come from an RHD version.
If the car is RHD, the steering gear must come from an LHD version.
The steering gear is mounted upside down, behind the axle, so it works in the same way as
in a Nissan 200SX or Mercedes W210.
