Reference: 286218A

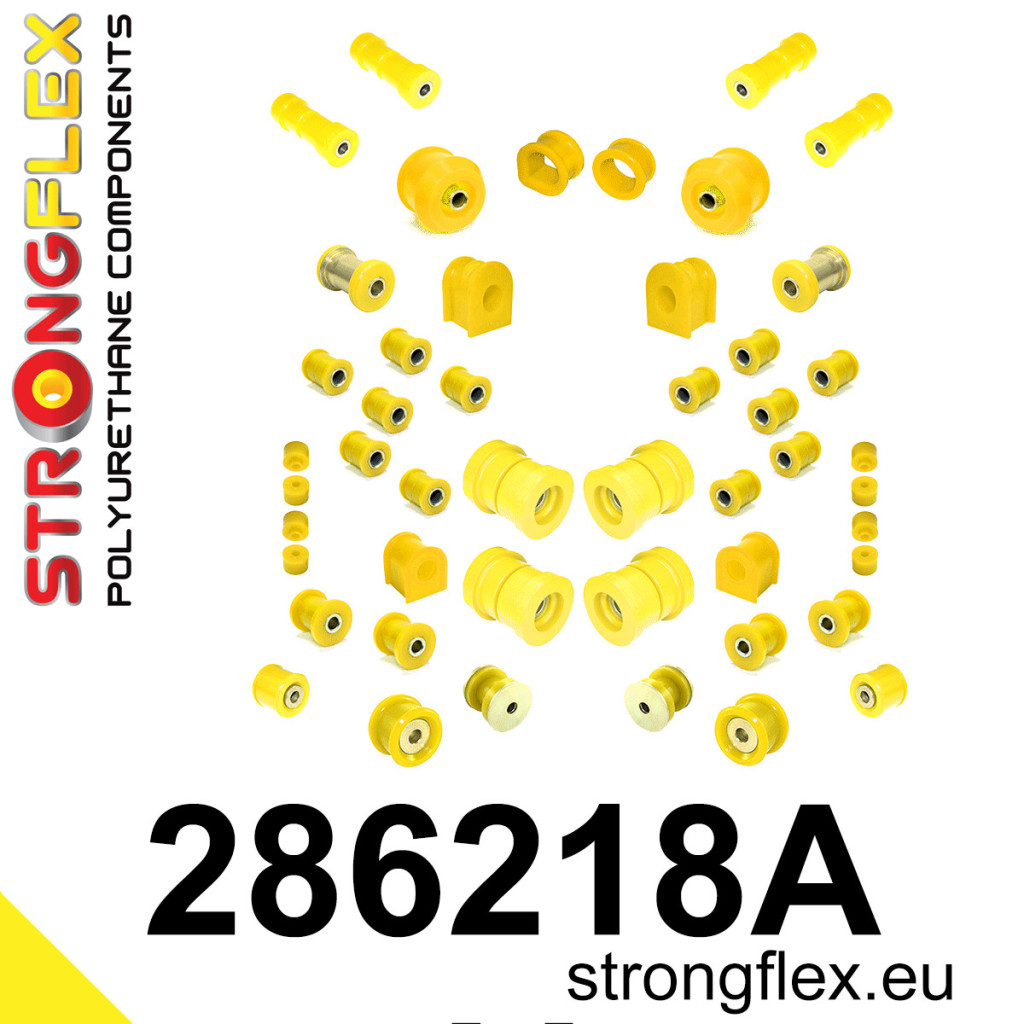

Product name: Full suspension bush kit SPORT
Fits to:
- Nissan Z 300ZX Z32 (90-96)
Include:
- 2x 281262A: Front lower radius arm to chassis bush SPORT
- 2x 281957A: Front upper arm - upper bush SPORT
- 2x 281958A: Front upper arm - lower bush SPORT
- 2x 281397A: Front inner track control arm bush 38mm SPORT
- 2x 281207A: Front anti roll bar bush SPORT
- 8/12x 281218A: Rear arm bush SPORT
- 4x 281267A: Rear lower control arm bush SPORT
- 2x 281268A: Rear anti roll bar bush SPORT
- 4x 281269A: Rear anti roll bar link bush SPORT
- 4x 281270A: Rear beam mounting bush SPORT
- 1x 281261A: Steering rack mount bush SPORT
- 2x 281849A: Rear diff mount - front bush SPORT
- 2x 281850A: Rear diff mount - rear bush SPORT
- 0/2x 281959A: Rear lower shock mount bush 45mm SPORT
or - 0/2x 281961A: Rear lower shock mount bush 55mm SPORT
Diagrams:

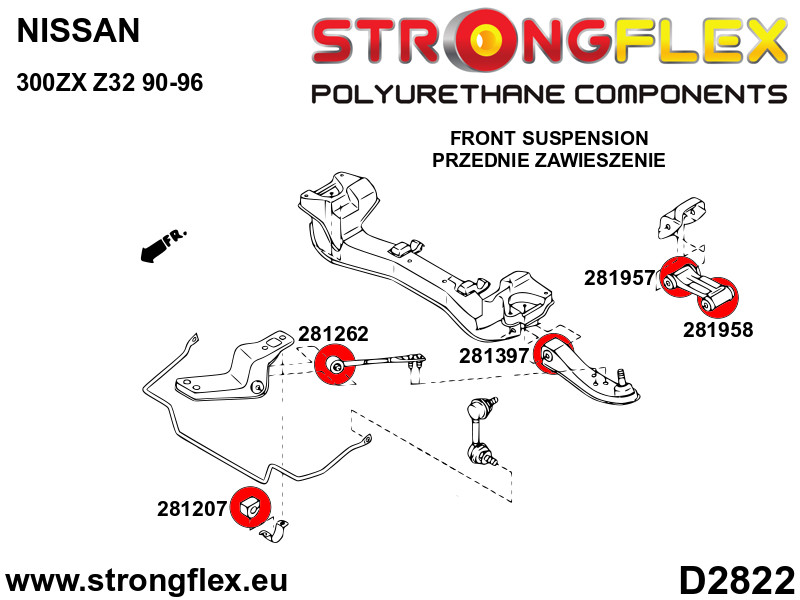

- D2822

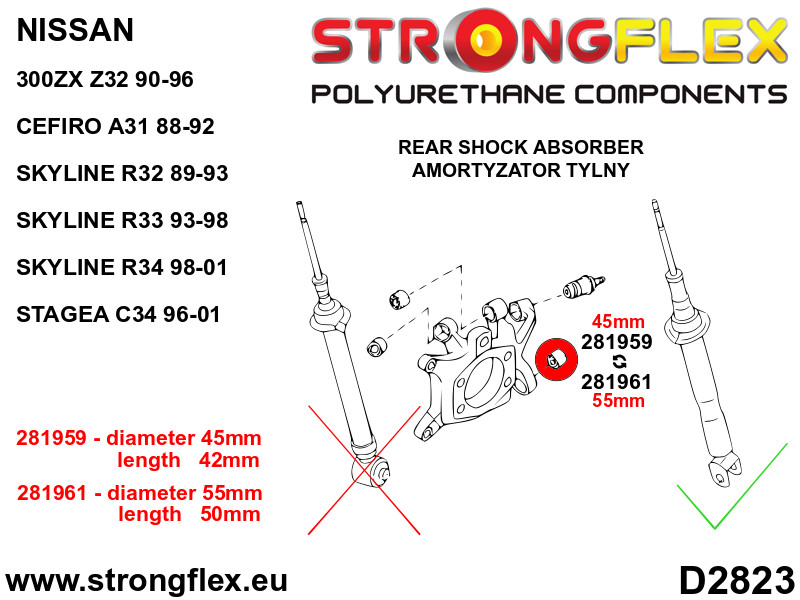

- D2823
- D2803
- D2805
- D2820

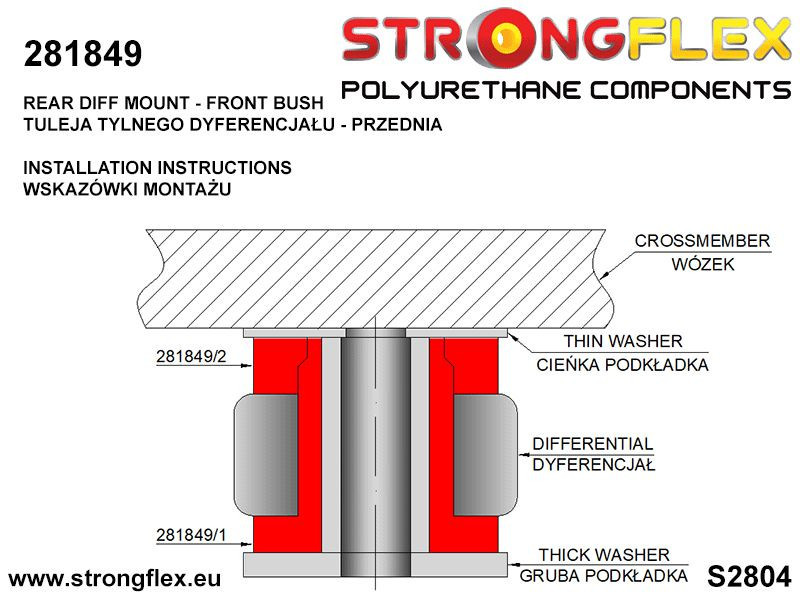

- S2804

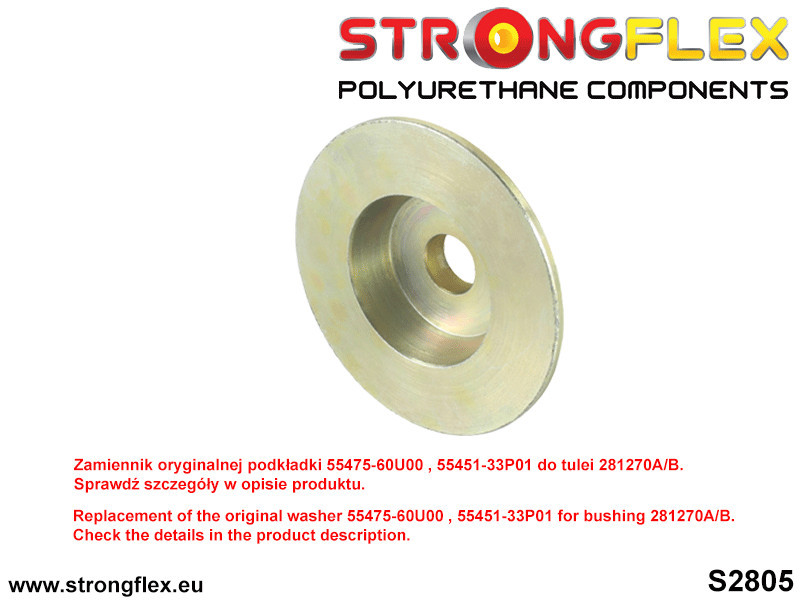

- S2805
Notes
- 281218A: With the HICAS system 8 pcs
Without the HICAS system 12 pcs
- 281261A: 45mm or 48mm or 50mm diameter.
- 281959A or 281961A The bush only fits the aluminum steering knuckle and the shock absorber with the appropriate mount (see D2823).
- If you need a rear subframe bush washer, select the appropriate quantity in the "carriage bush washer" field.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 39/41
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
