Reference: 286116B

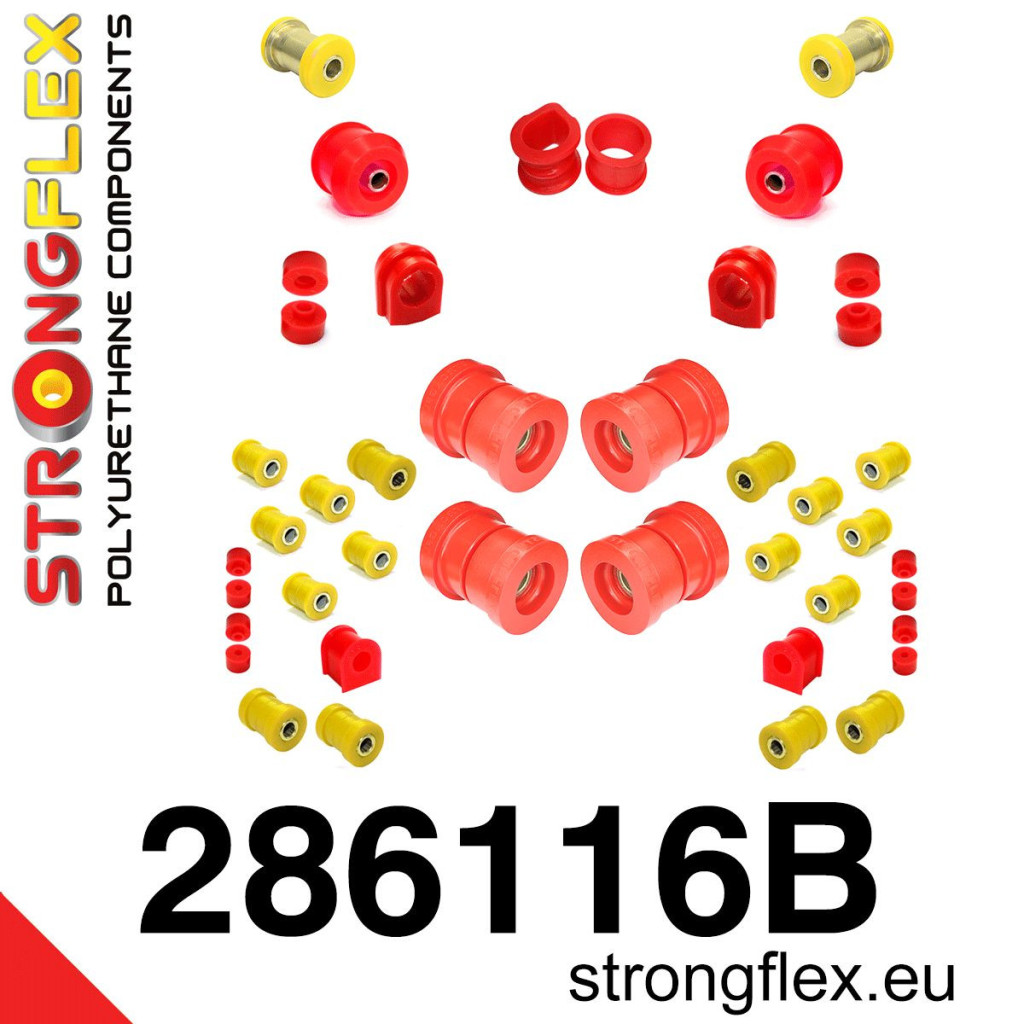

Product name: Full suspension bush kit
Fits to:
- Nissan Laurel VII (93-97) C34 RWD
- Nissan Laurel VIII (97-02) C35 RWD
- Nissan S-chassis (180SX / 200SX / 240SX / Silvia) VI (94-99) S14
- Nissan S-chassis (180SX / 200SX / 240SX / Silvia) VII (99-02) S15
- Nissan Stagea I (96-01) C34 RWD
Include:
- 2x 281400B: Front anti roll bar bush
- 2x 281265B: Front anti roll bar link bush
- 1x 281261B: Steering rack mount bush
45mm/48mm/50mm
- 2x 281262B: Front lower radius arm to chassis bush
- 2x 281263A: Front inner track control arm bush 34mm SPORT
or - 2x 281397A: Front inner track control arm bush 38mm SPORT
- 10x 281218A: Rear arm bush SPORT
- 4x 281398A: Rear trailing arm bushes SPORT
- 2x 281399A: Rear roe link inner bush SPORT
- 2x 281268B: Rear anti roll bar bush
- 4x 281269B: Rear anti roll bar link bush
- 4x 281270B: Rear beam mounting bush RWD
- 2x 281849B: Rear diff mount - front bush
- 2x 281850B: Rear diff mount - rear bush
Diagrams:
- S2803

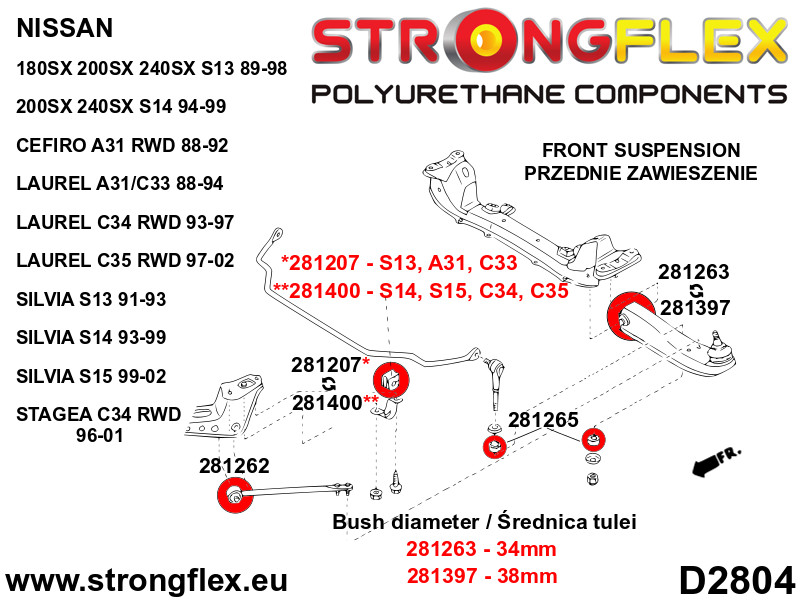

- D2804

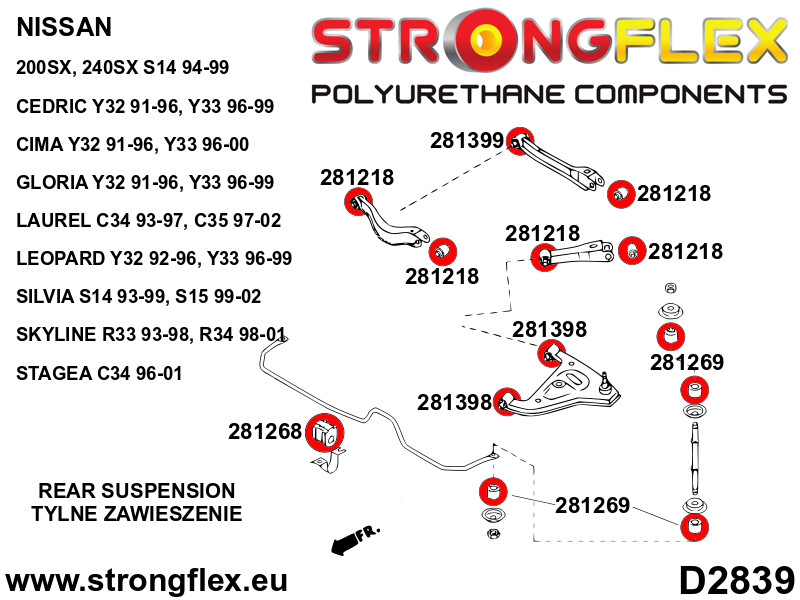

- D2839

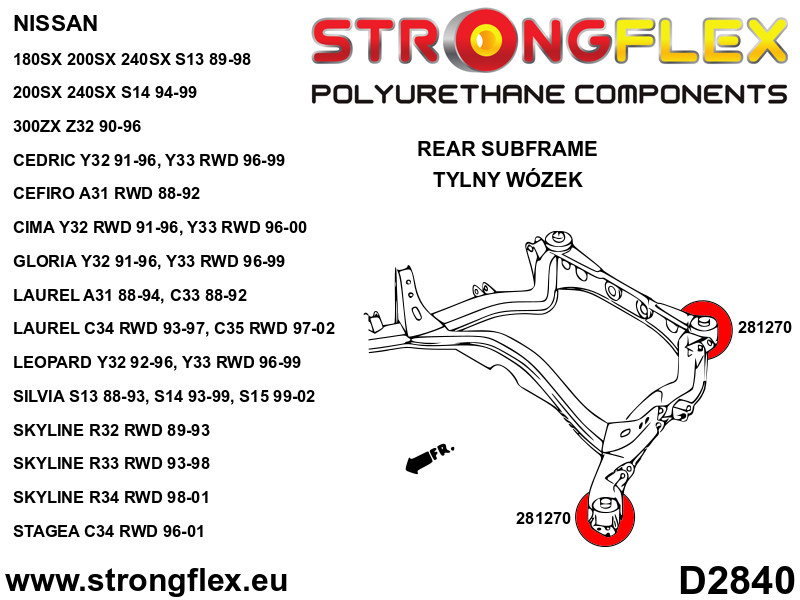

- D2840

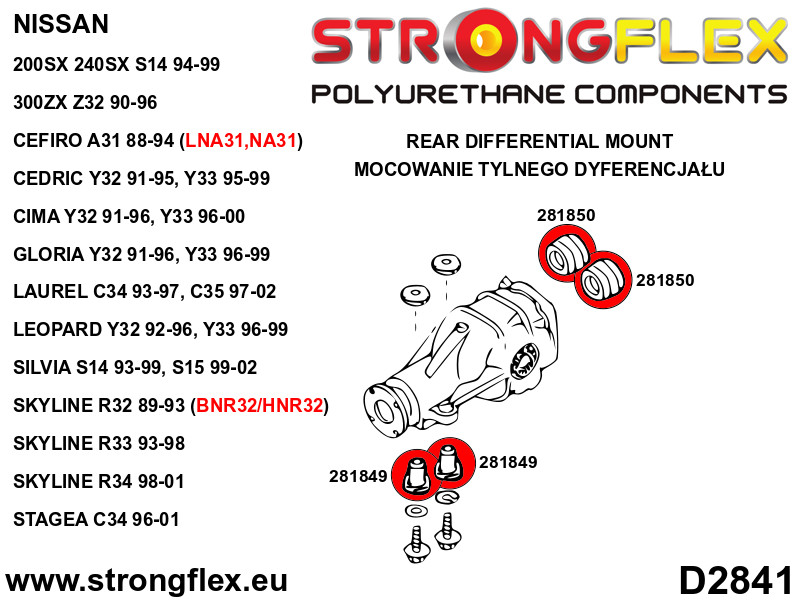

- D2841
- S2805
Notes
- There are two different bushes of front wishbone: Ø34mm (281263) and Ø38mm (281397).
Before placing order order, please check bushes in your model.
- Select the appropriate diameter of the steering gear bushing Ø45mm/Ø48mm/Ø50mm.

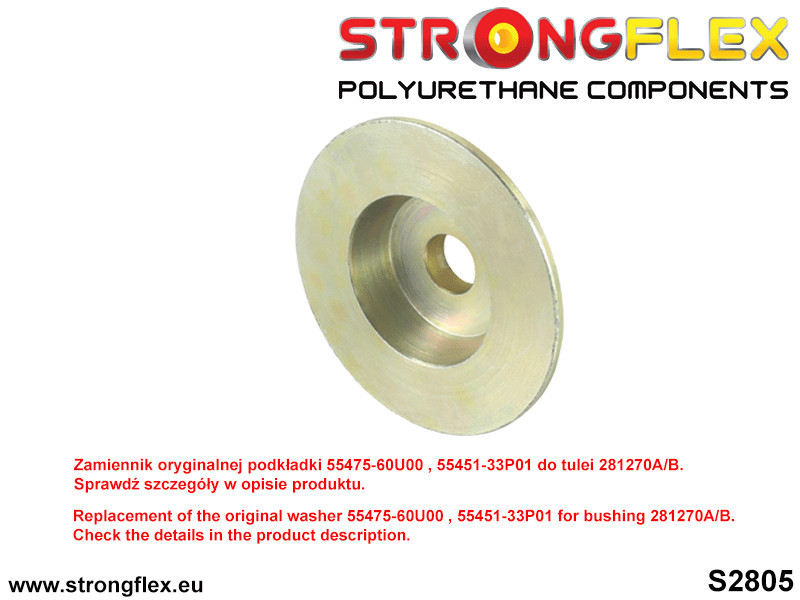

- Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01.
You can buy a replacement for the original washer matched to our bush.
In the "Subframe bush washers" field, select the number of washers you need (0pcs/2pcs/4pcs).
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 39
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
