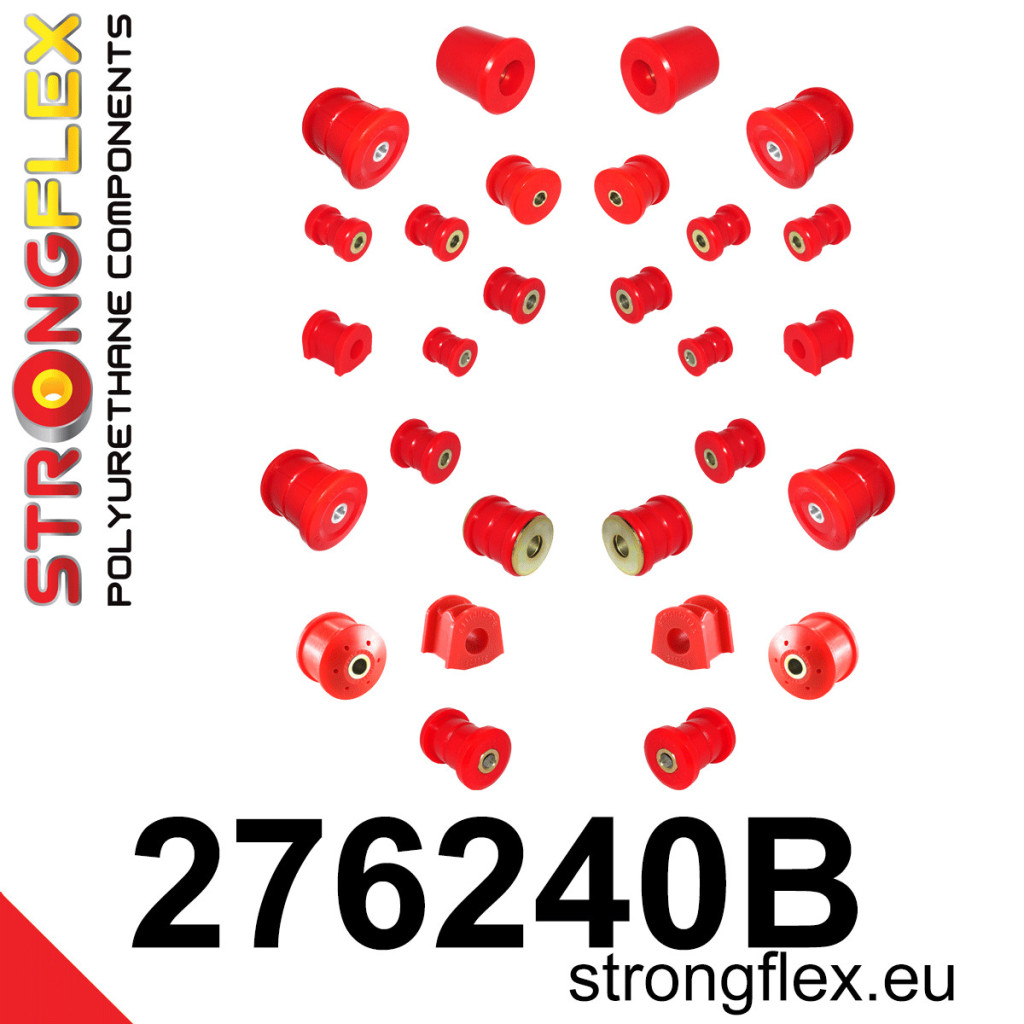

Reference: 276240B

Product name: Full suspension bush kit

Fits to:

• Subaru Legacy V / Outback IV (09-14) BM BR

Include:

• 2x 271803B: Front anti roll bar bush
• 2x 271804B: Front control arm – rear bush
• 2x 271529B: Front arm front bush


• 2x 271610B: Rear trailing arm front bush
• 2x 271611B: Rear trailing arm rear bush
• 2x 271612B: Rear toe adjuster inner bush
• 2x 271613B: Rear lower track control inner bush
• 2x 271614B: Rear upper arm front bush
• 2x 271615B: Rear upper arm rear bush
• 2x 271616B: Rear anti roll bar bush


• 2x 271541B: Rear diff front mounting bush
• 2x 271618B: Rear diff rear mounting bush


• 4x 271619B: Rear subframe bush SPORT
  or
• 2x 271806B: Rear subframe bush - front SPORT
• 2x 271807B: Rear subframe bush - rear SPORT

Diagrams:

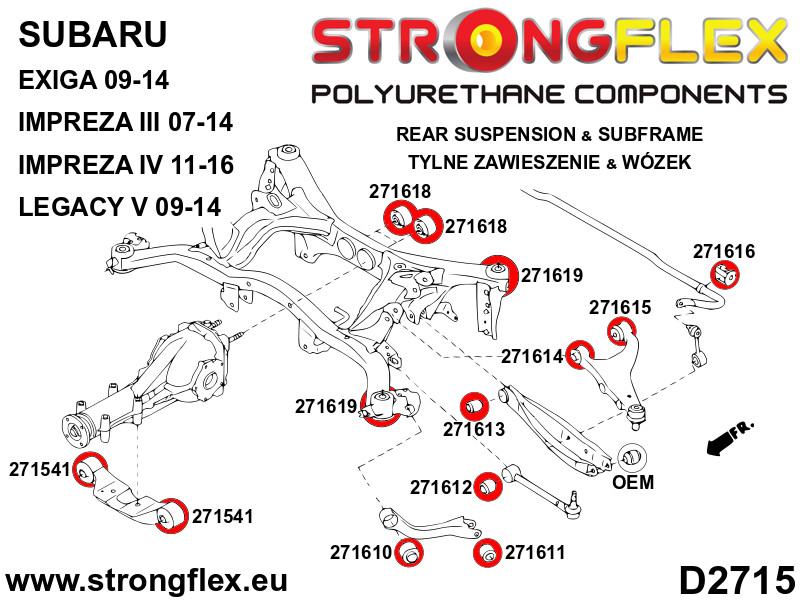

• D2715

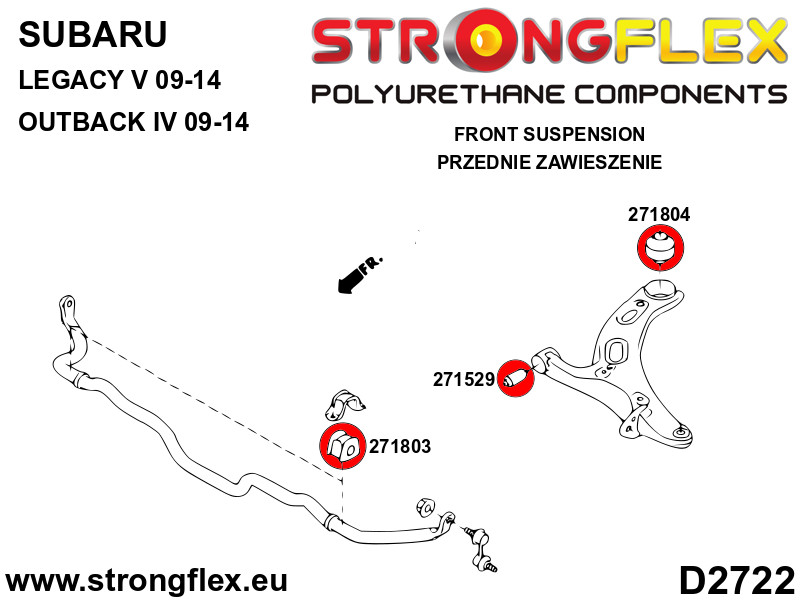

• D2722

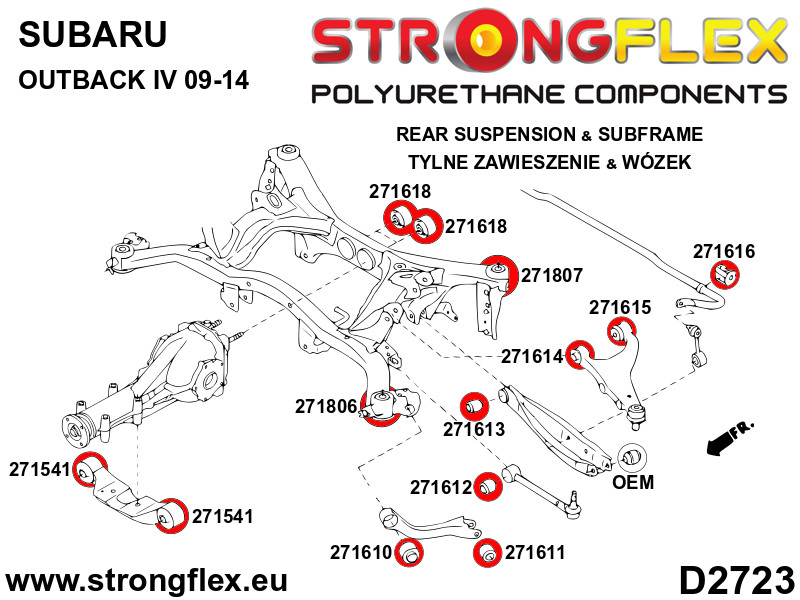

• D2723

Notes

• Rear subframe bush:
  For the Legacy model, select 4x271619.
  For Outback model, choose 2x271806, 2x271807.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 28

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
