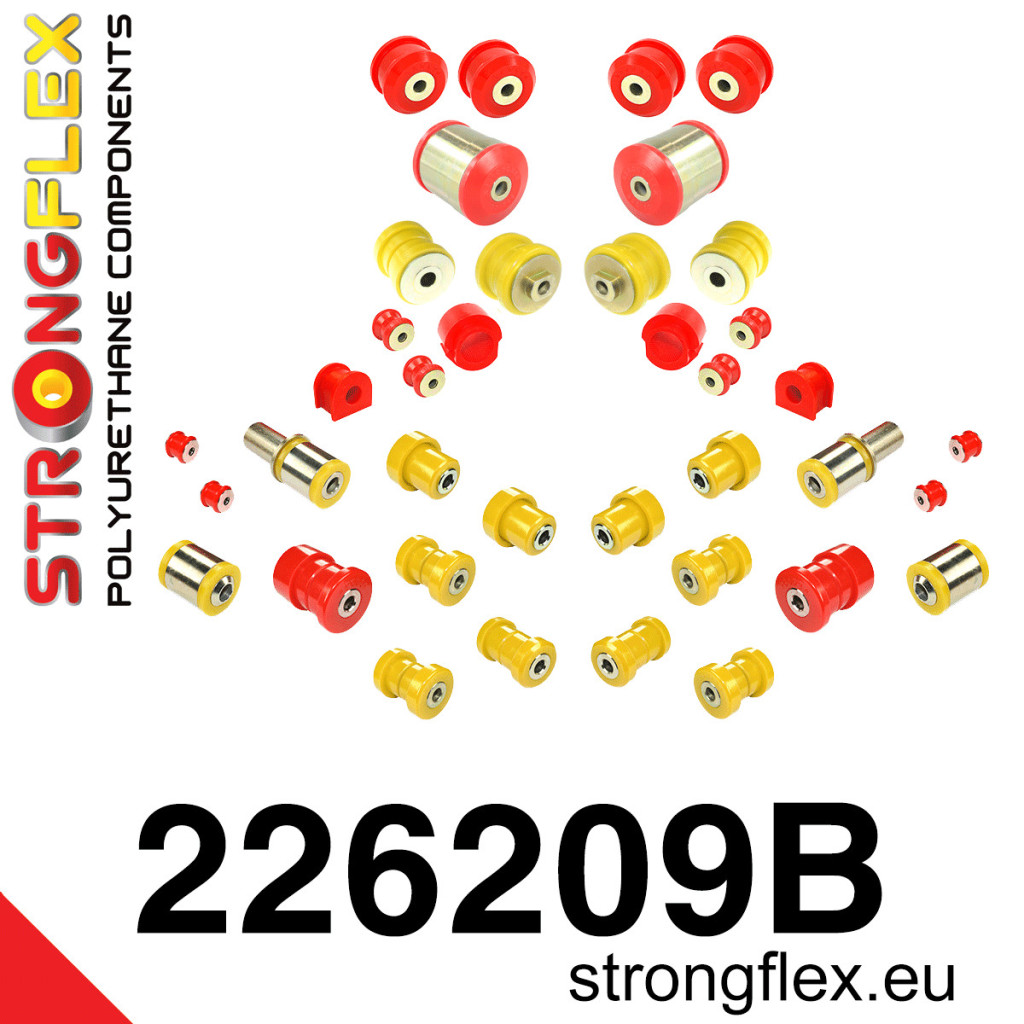

KIT ID: 226209B
Name: Suspension bush kit
- Fit:
- Audi A6 C5 (97-04) Quattro & Allroad
- Audi S6 C5
- Audi RS6 C5
- Volkswagen Passat B5 (96-05) 4Motion
- Include:
- 2 x 021255A Front lower wishbone inner bush SPORT
2 x 021257A Front lower wishbone outer bush 49mm SPORT*- or
- 2 x 021260A Front lower wishbone outer bush 37mm SPORT*
- 2 x 021258B Front lower wishbone rear bush
- 4 x 021259B Front upper wishbone bush
- 2 x 021285B Front anti roll bar bush
- Diameters:
- 25,27,29,31mm
- 4 x 021923B Front anti roll bar link bush
- 4 x 221754A Rear upper arm bush SPORT
- 2 x 221755A Rear lower arm front bush SPORT
- 2 x 221756B Rear lower arm rear bush
- 2 x 221757A Rear toe adjuster inner bush SPORT
2 x 221758A Rear track rod outer bush SPORT*- or
- 2 x 221761A Rear track rod outer bush SPORT*
- 4 x 221759A Rear tie bar to hub bush SPORT
- 4 x 221760B Rear anti roll bar link bush
- 2 x 221445B Rear anti roll bar bush
- Diameters:
- 12,13,14,15,16,17,18,19,20,21mm
Pcs/prod: 38
Required/car: 1
- Diagrams:

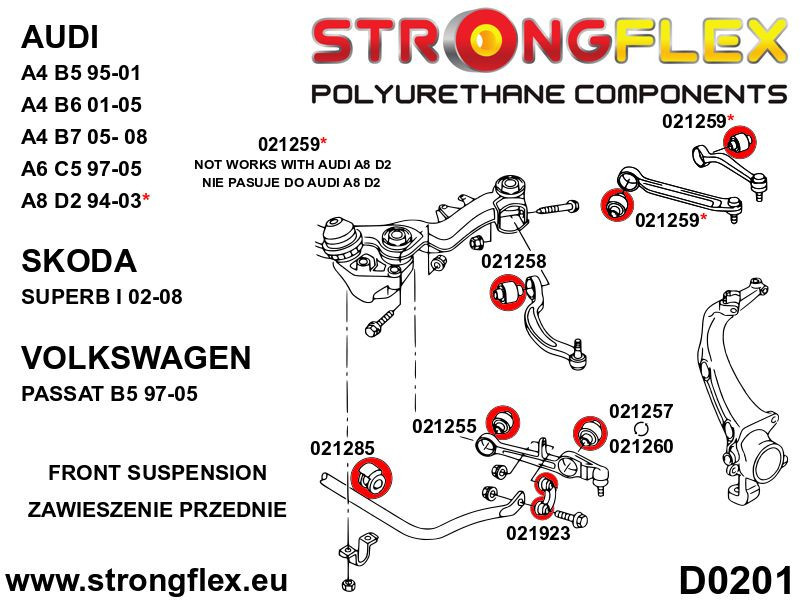

- D0201

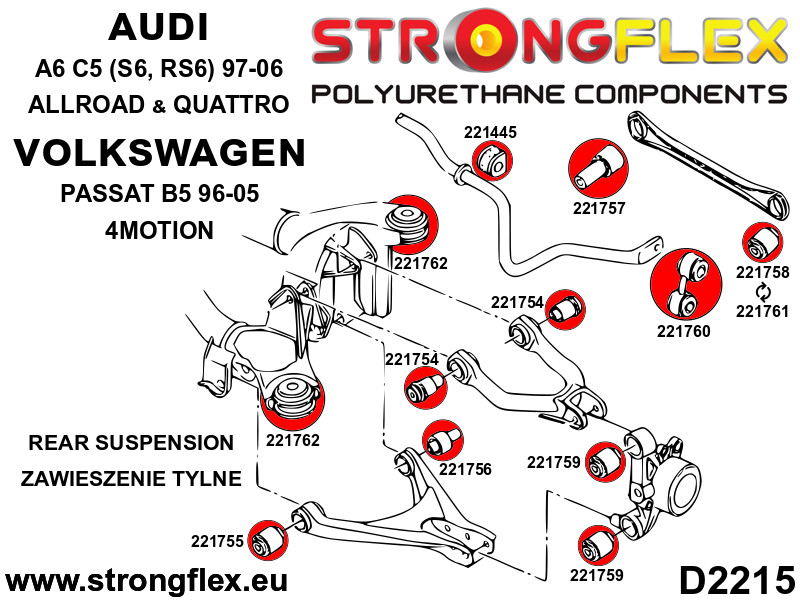

- D2215
NOTE!
*Audi - adjust rod bush to your model:
221758A - 1.8, 1.8 T, 2.0, 2.4, 2.7 T, 3.0, 2.8, 1.9 TDI, 2.5 TDI (steel rod & crossover)
221761A - 4.2, 4.2 S6, 4.2 RS6, 4.2 RS6 Plus (aluminum rod & crossover)
Check anti roll bar size before placing order.
Check the width of the Front lower wishbone outer bush before buying.
There are two widths of the bush, 49mm (021257A) and 37mm (021260A).
Hardness: 80/90ShA
Material: POLYURETHANE (PUR/PU)
To every product we add grease!
