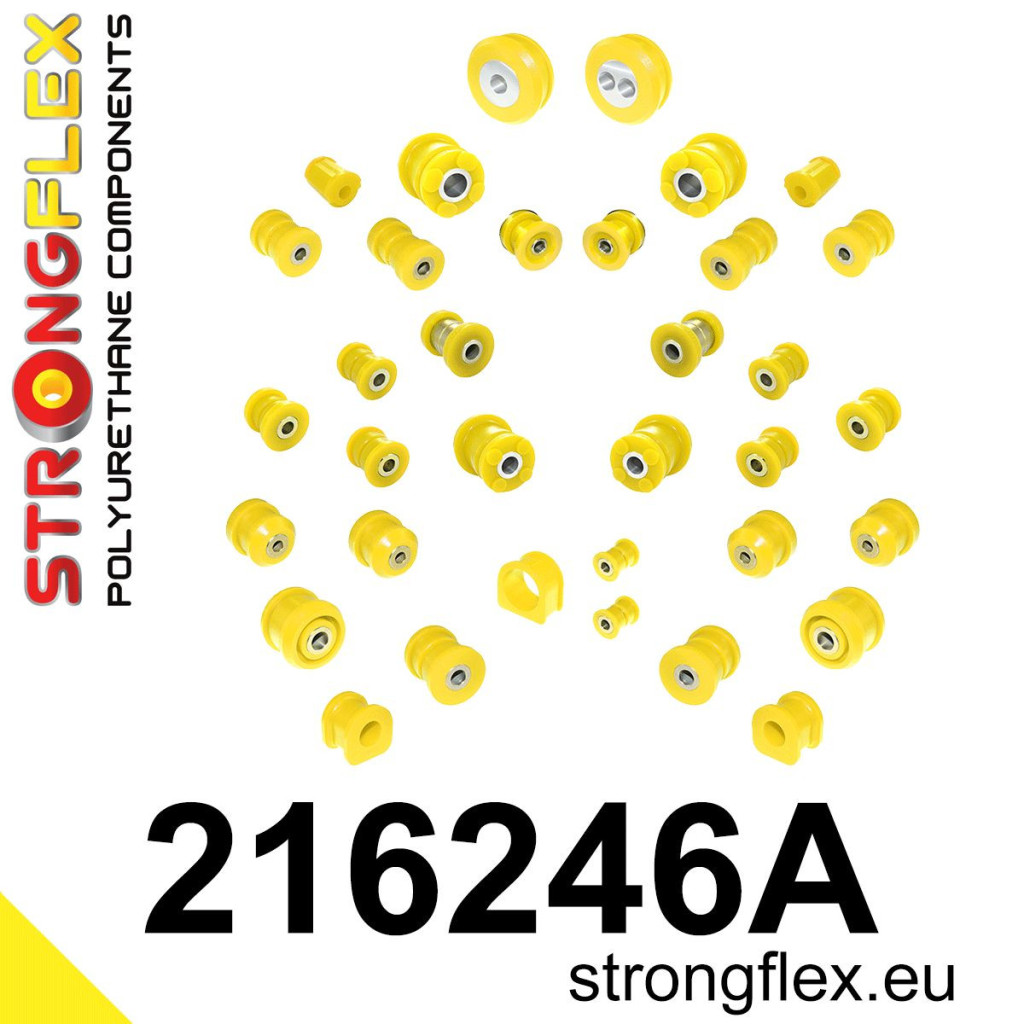

Reference: 216246A
Product name: Full suspension bush kit SPORT
Fits to:
- Lexus GS II (97-05) S160
- Lexus SC II (01-10) Z40
- Toyota Aristo II (97-05) S160
- Toyota Soarer IV (01-05) Z40
Include:
- 2x 211911A: Front anti roll bar bush SPORT
- 4x 211912A: Front upper arm bush SPORT
- 2x 211913A: Front lower arm bush SPORT
- 2x 211914A: Front lower radius arm to chassis bush 65mm SPORT
or - 2x 211921A: Front lower radius arm to chassis bush 60mm SPORT
- 2x 211834A: Rear toe adjuster inner bush SPORT
- 2x 211835A: Rear trailing arm front bush SPORT
- 2x 211836A: Rear trailing arm rear bush SPORT
- 2x 211837A: Rear track control arm Inner bush SPORT
- 2x 211915A: Rear upper arm - front bush SPORT
- 2x 211916A: Rear upper arm – rear bush 35mm SPORT
or - 2x 212059A: Rear upper arm – rear bush 29mm SPORT
- 2x 211838A: Rear anti roll bar bush SPORT
- 2x 211839A: Rear beam - front bush SPORT
- 2x 211840A: Rear beam - rear bush SPORT
- 2x 211794A: Rear diff mount - front bush SPORT
- 1x 211917A: Rear differential – rear bush SPORT
- 1x 211918A: Rear differential – rear bush SPORT
- 1x 211919A: Steering clamp bush SPORT
- 2x 211920A: Steering rack mount bush SPORT

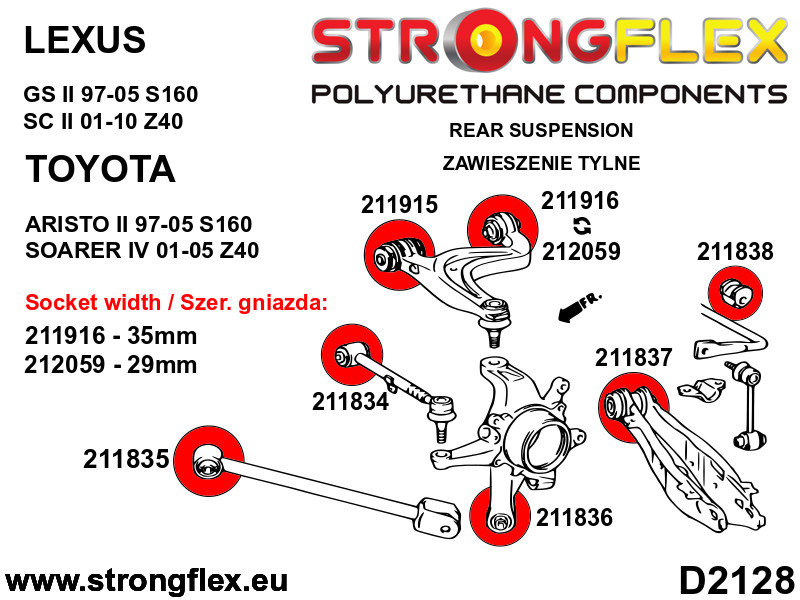

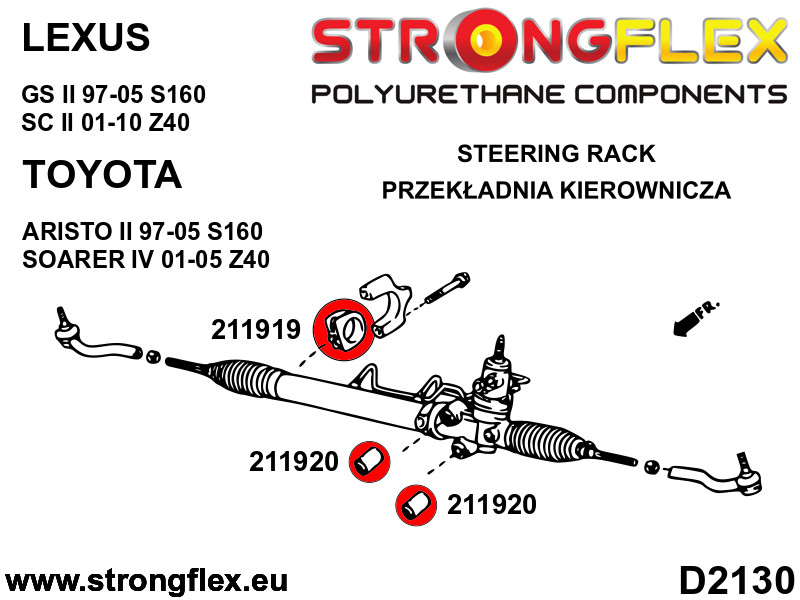

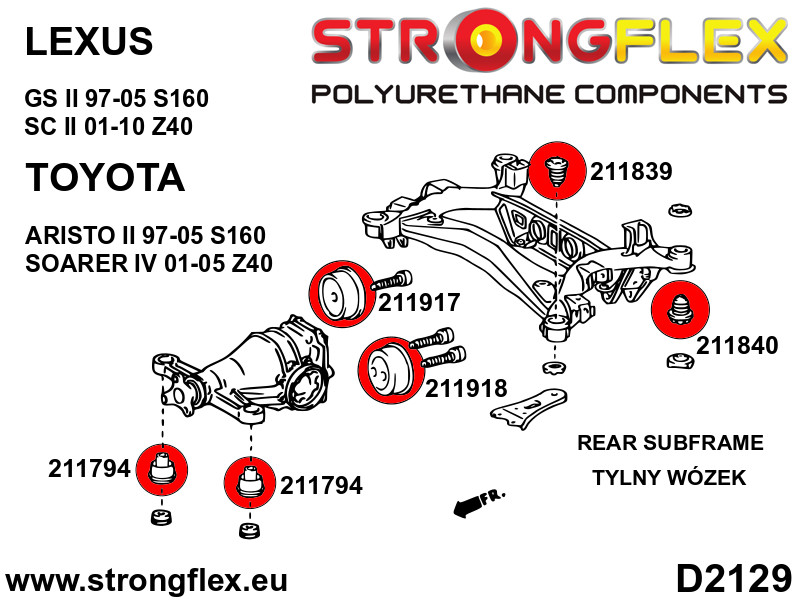

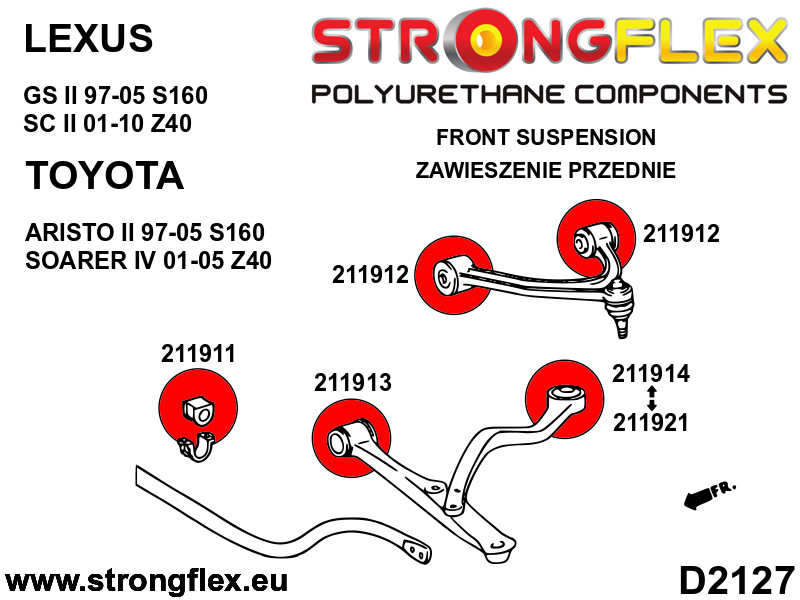

Diagrams:
Notes
- Front wishbone bush - rear:
211914 - outer diameter bush 65mm
211921 - outer diameter bush 60mm
- Rear wishbone bushing type:
211916 - width of the wishbone socket 35mm
212059 - width of the wishbone socket 29mm
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 35
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
