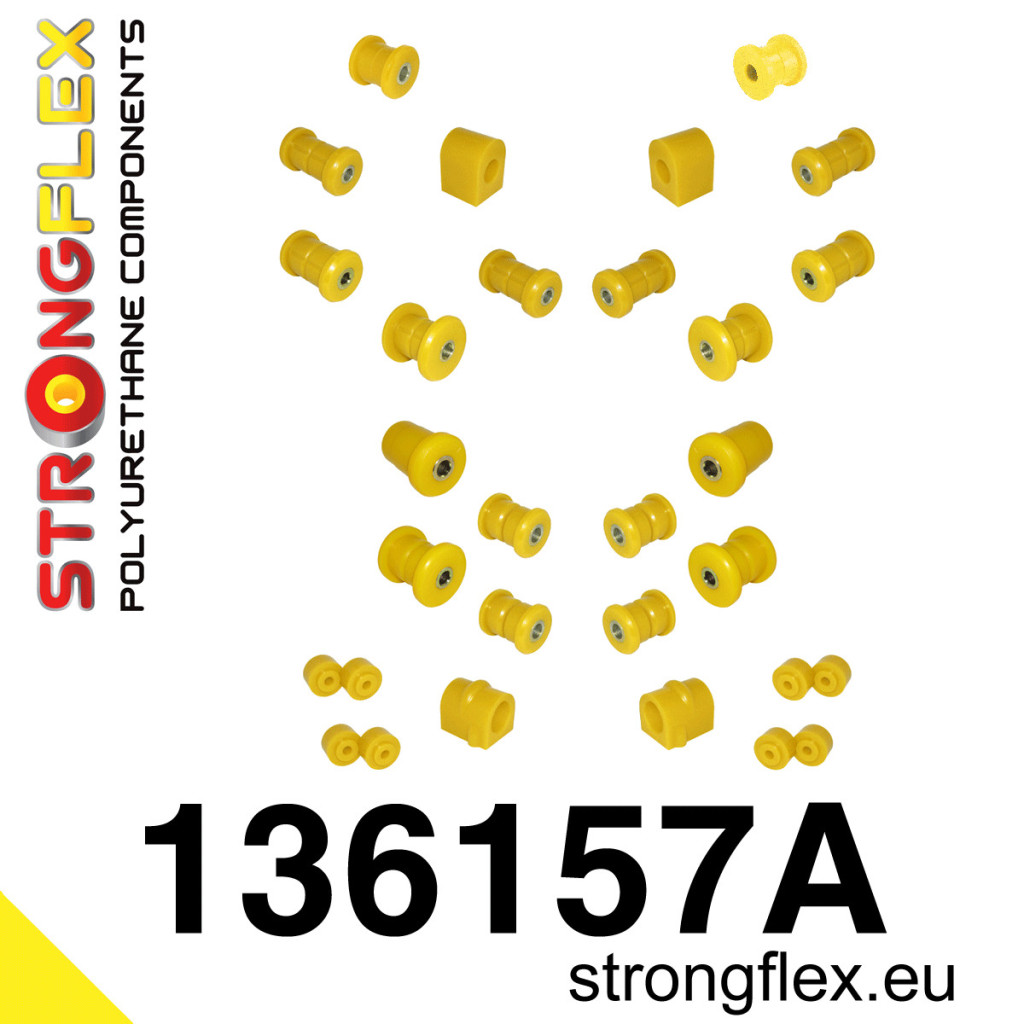

Reference: 136157A

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Opel / Vauxhall Ascona B (75-81)
• Opel / Vauxhall Manta B (75-88)

Include:

• 8x 131126A: Front eye bolt mounting bush SPORT
• 2x 131134A: Front anti roll bar bush SPORT
• 2x 131601A: Front lower wishbone front bush SPORT
• 2x 131602A: Front lower wishbone rear bush SPORT
• 2x 131603A: Front subframe rear mounting bush SPORT
• 4x 131604A: Front upper wishbone bush SPORT
• 4x 131605A: Rear centre prop mount & rear tie bar to axle bushes SPORT
• 2x 131606A: Rear tie bar to chassis bushes SPORT
• 2x 131607A: Rear anti roll bar bush SPORT
• 1x 131608A: Rear panhard rod mount - to the body SPORT
• 1x 131609A: Rear panhard rod mount - to the chassis SPORT

Diagrams:

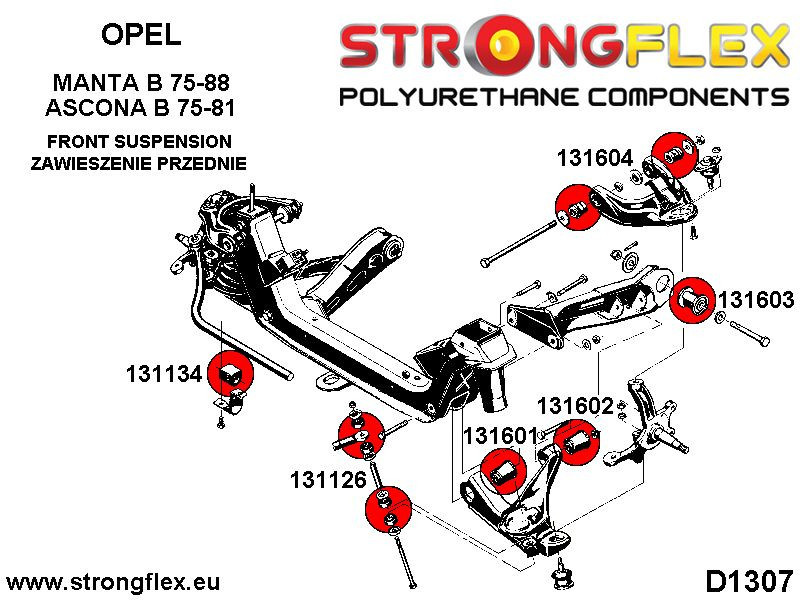

• D1307

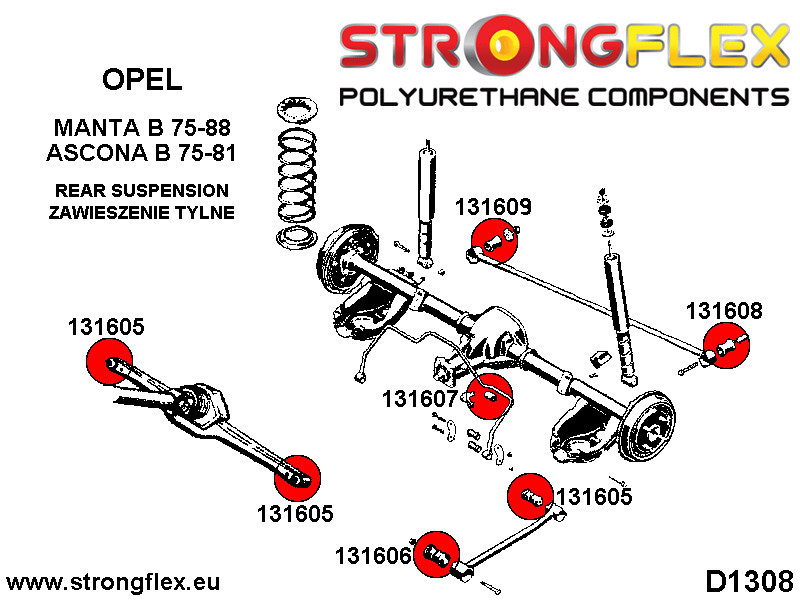

• D1308

Notes

• To install the polyurethane bushing 131604A, you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 26

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
