Reference: 116240A

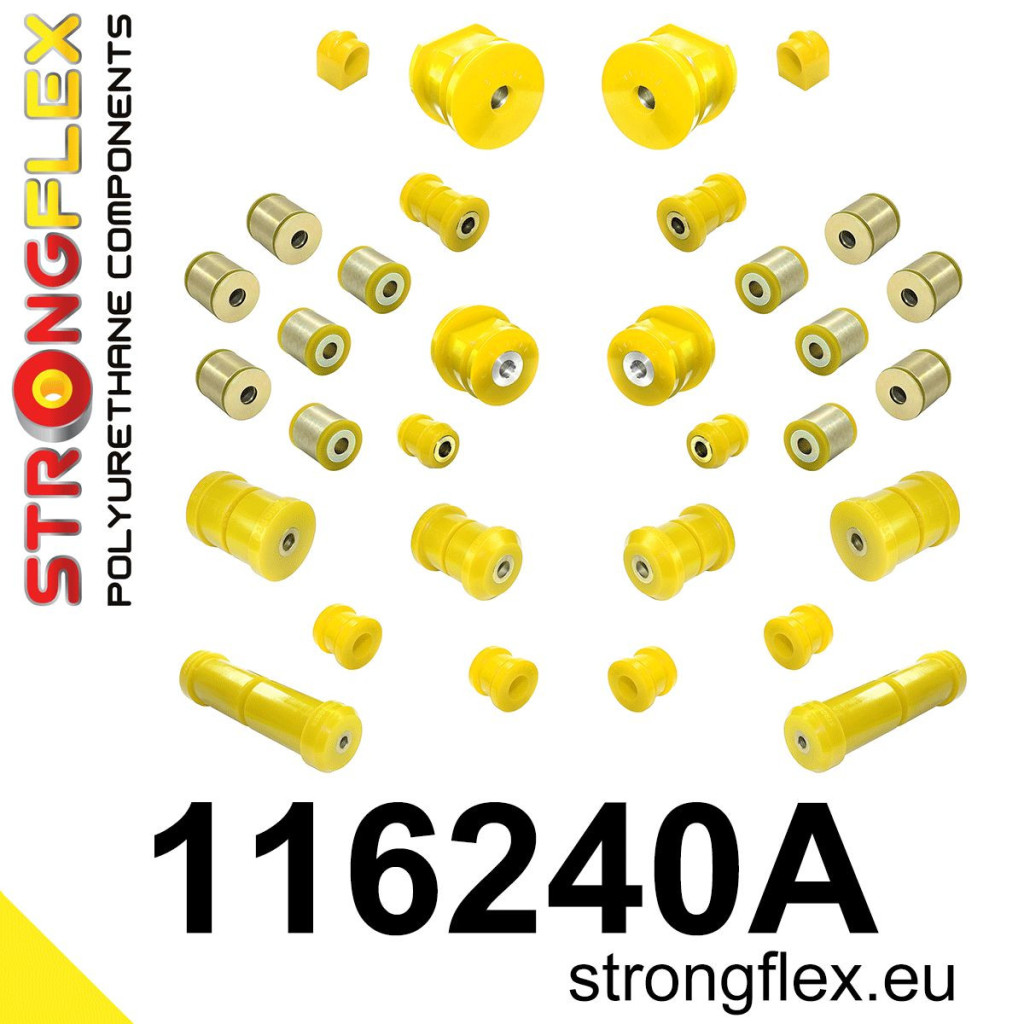

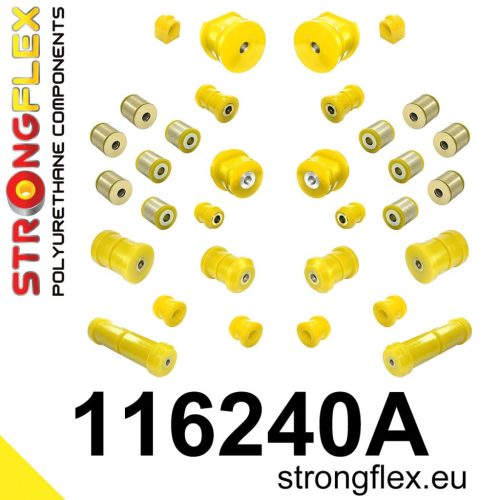

Product name: Full suspension bush kit SPORT

Fits to:

• Chrysler Crossfire (03-07)


• Mercedes C W202 (93-01)
• Mercedes CLK W208 (97-03)
• Mercedes SLK R170 (96-04)

Include:

• 2x 111814A: Front anti roll bar - inner bush SPORT
• 2x 111815A: Front anti roll bar - outer bush SPORT
• 2x 111857A: Front upper arm bush SPORT
• 2x 111858A: Front lower arm - front / rear bush SPORT
• 2x 111859A: Front lower arm - rear bush SPORT


• 2x 111817A: Rear toe adjuster inner bush SPORT
• 6x 111818A: Rear control arm - inner bush SPORT
• 6x 111819A: Rear control arm - outer bush SPORT
• 2x 111820A: Rear track control arm - inner bush 33mm SPORT
• 2x 111821A: Rear anti roll bar bush SPORT


• 2x 111822A: Rear subframe - front bush SPORT
• 2x 111823A: Rear subframe - rear bush SPORT

Diagrams:

• D1112

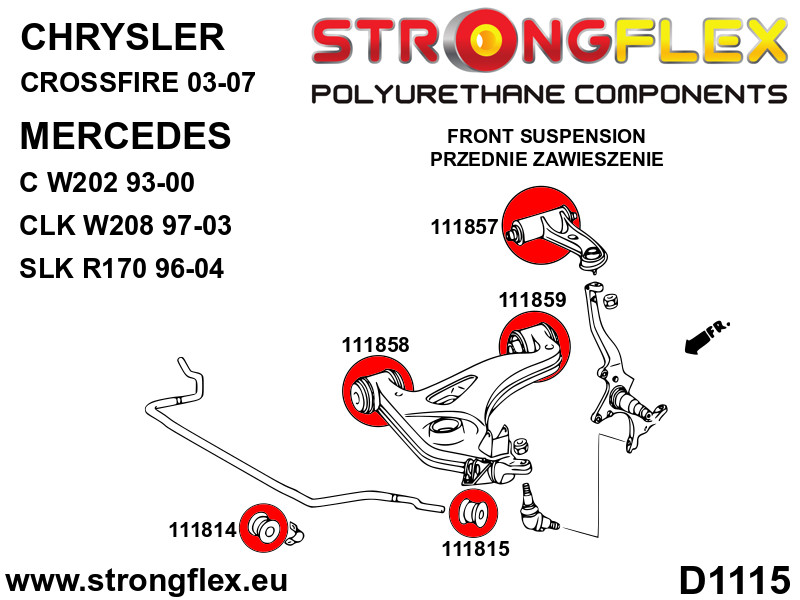

• D1115

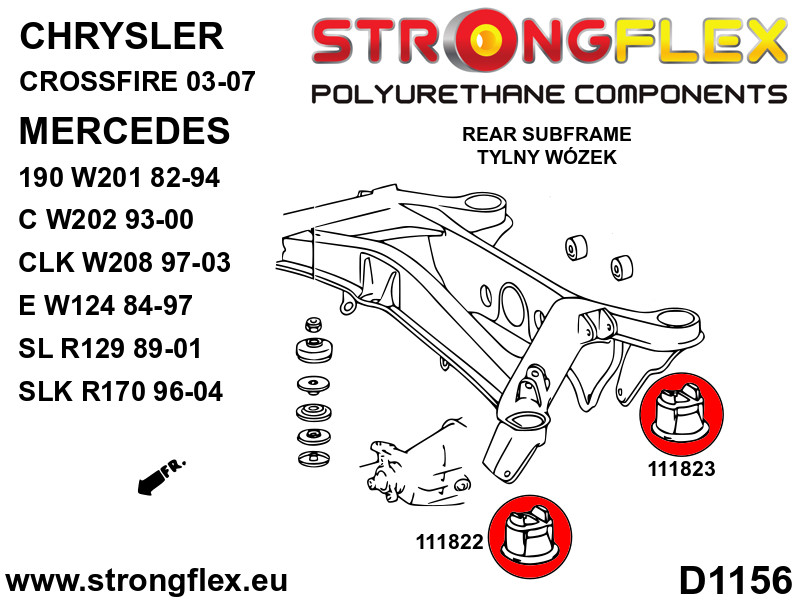

• D1156

Notes

• 111819 - During installation you should use the original 13mm reducer sleeve from an old wishbone.


• Choosing the diameter of the front anti roll bar bush 111814 and 111815, be sure to check out the inner and outer diameter of the anti roll bar.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 32

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
