116224B: Full suspension bush kit

Reference: 116224B

Product name: Full suspension bush kit

Fits to:

• Mercedes W201 (82-94) 190
• Mercedes E W124 (84-97) RWD
• Mercedes SL R129 (89-01)

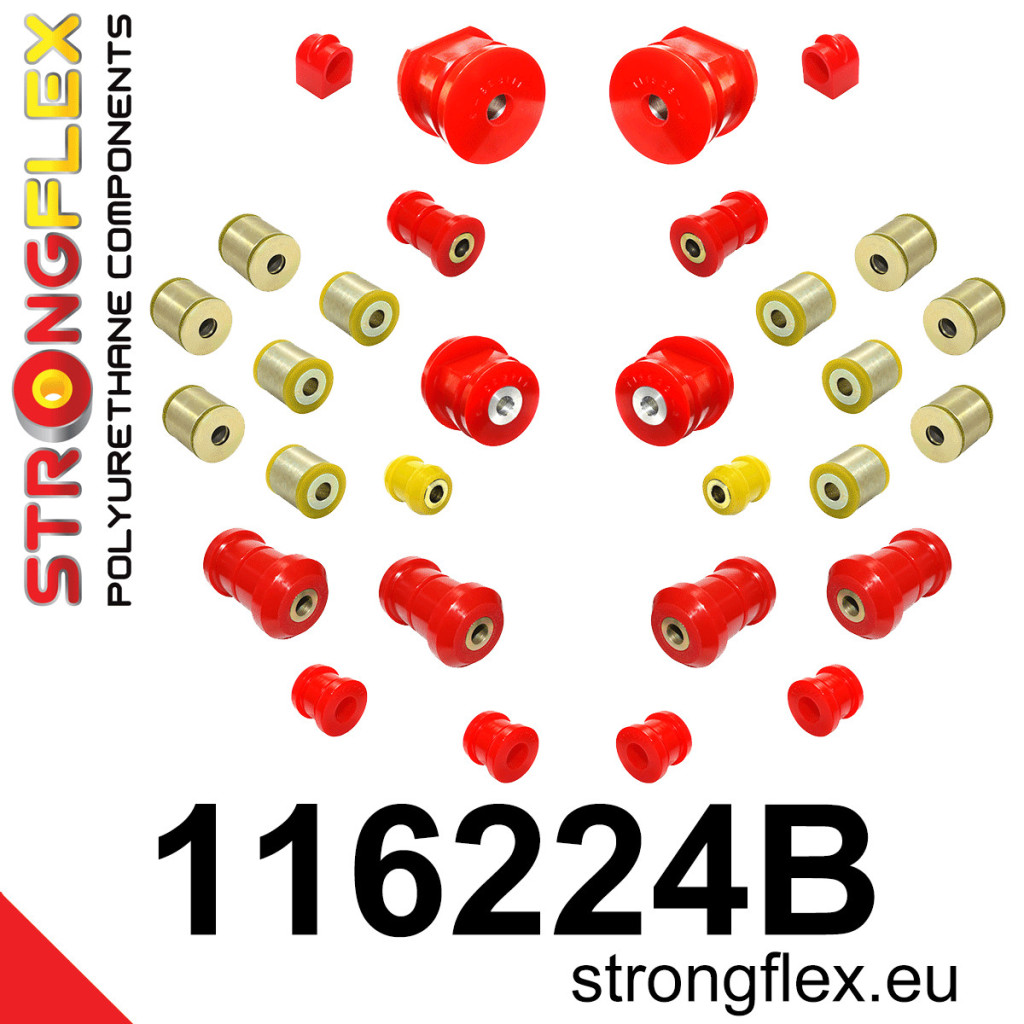

Include:

• 2x 111814B: Front anti roll bar - inner bush
• 2x 111815B: Front anti roll bar - outer bush
• 4x 111816B: Front lower arm bush


• 2x 111817A: Rear toe adjuster inner bush SPORT
• 6x 111818A: Rear control arm - inner bush SPORT
• 6x 111819A: Rear control arm - outer bush SPORT
• 2x 111820B: Rear track control arm - inner bush 33mm
• 2x 111821B: Rear anti roll bar bush


• 2x 111822B: Rear subframe - front bush
• 2x 111823B: Rear subframe - rear bush

Diagrams:

• D1111

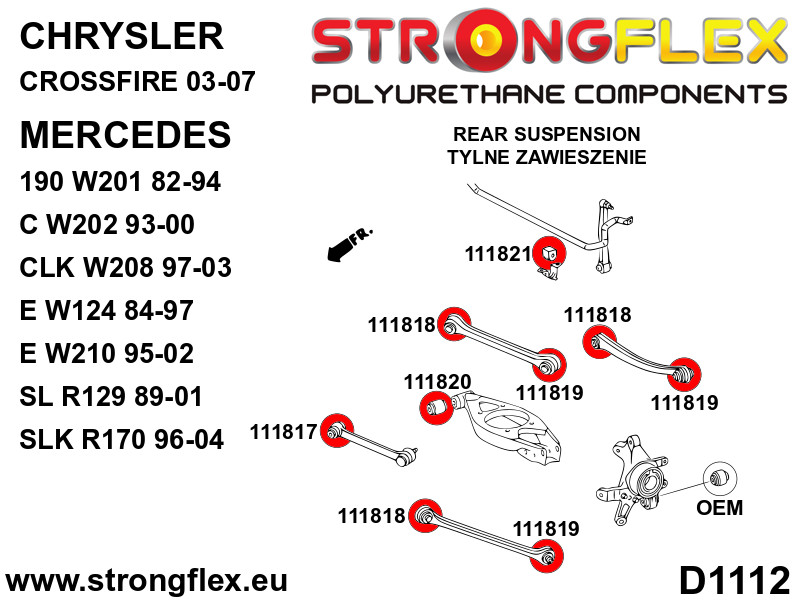

• D1112

Notes

• 111819 - During installation you should use the original 13mm reducer sleeve from an old wishbone.


• Choosing the diameter of the front anti roll bar bush 111814 and 111815, be sure to check out the inner and outer diameter of the anti roll bar.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 30

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
