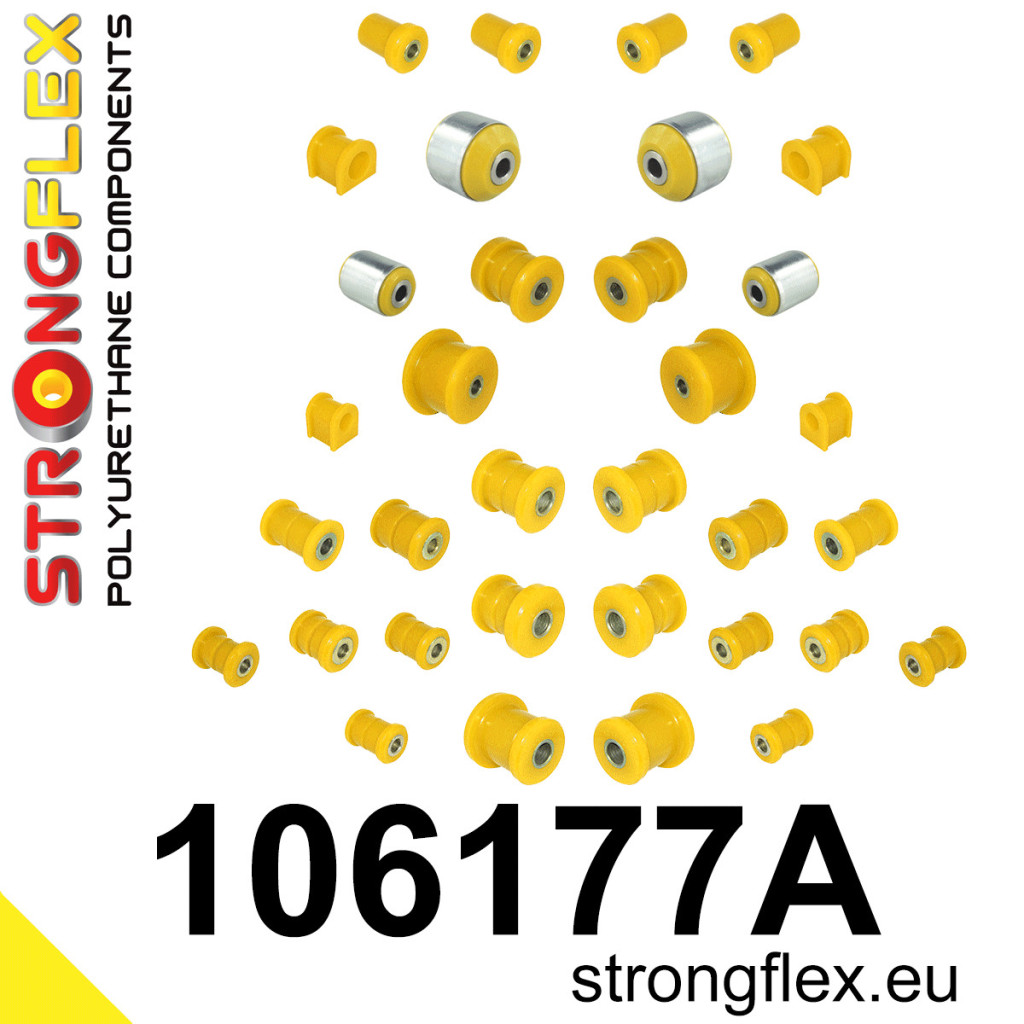

106177A: Full suspension bush kit SPORT

Reference: 106177A

Product name: Full suspension bush kit SPORT

Fits to:

• Mazda RX-8 (03-12) SE3P

Include:

• 2x 101670A: Front anti roll bar bush SPORT
• 2x 101671A: Front lower arm front bush SPORT
• 2x 101672A: Front lower arm rear bush SPORT
• 2x 101673A: Front shock mount bush SPORT
• 4x 101674A: Front upper arm bush SPORT
• 2x 101675A: Rear trailing arm front bush SPORT
• 2x 101676A: Rear trailing arm rear bush SPORT
• 2x 101677A: Rear upper - front arm bush SPORT
• 2x 101678A: Rear lower - front arm bush SPORT
• 2x 101679A: Rear upper - rear arm bush SPORT
• 2x 101680A: Rear lower - rear arm bush SPORT

• 2x 101681A: Rear anti roll bar bush 35mm SPORT
  or
• 2x 101706A: Rear anti roll bar bush 27mm SPORT

• 2x 101682A: Rear beam - front bush SPORT
• 2x 101683A: Rear beam - central bush SPORT
• 2x 101684A: Rear beam - rear bush SPORT
• 2x 101687A: Rear diff mount bush SPORT

Diagrams:

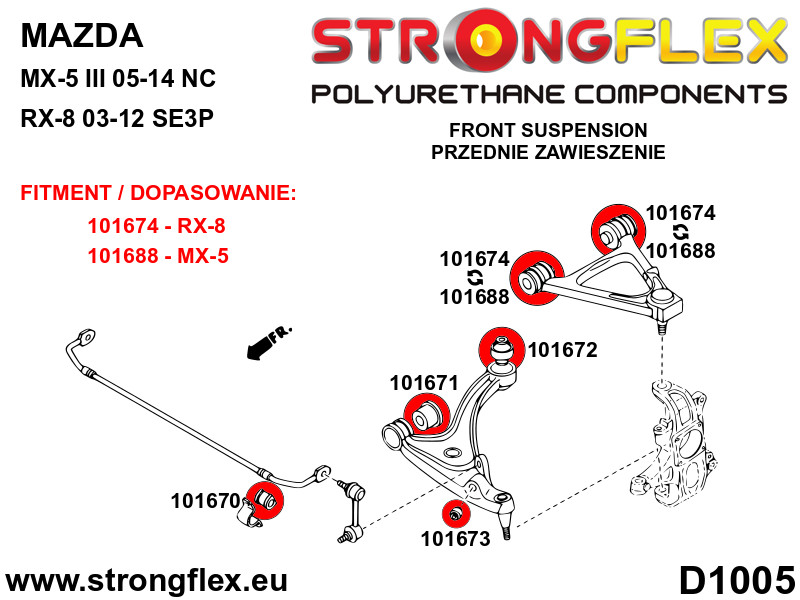

• D1005

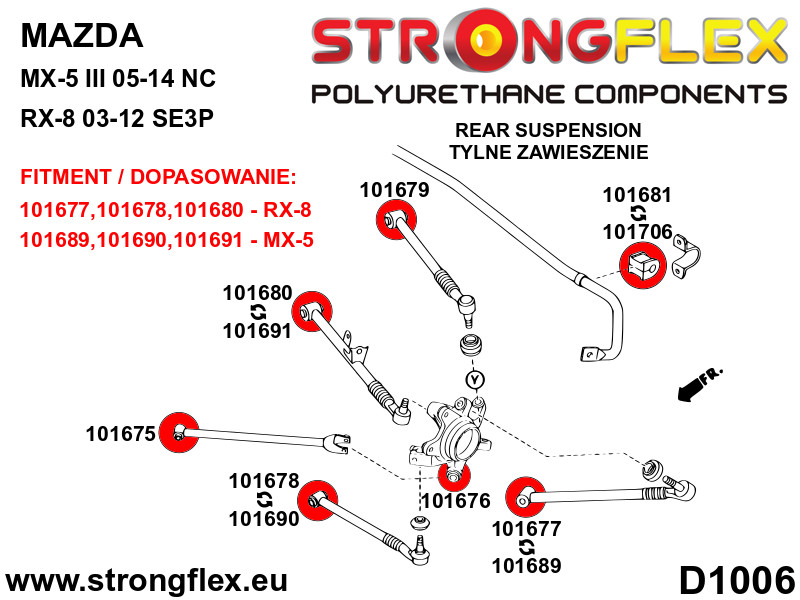

• D1006

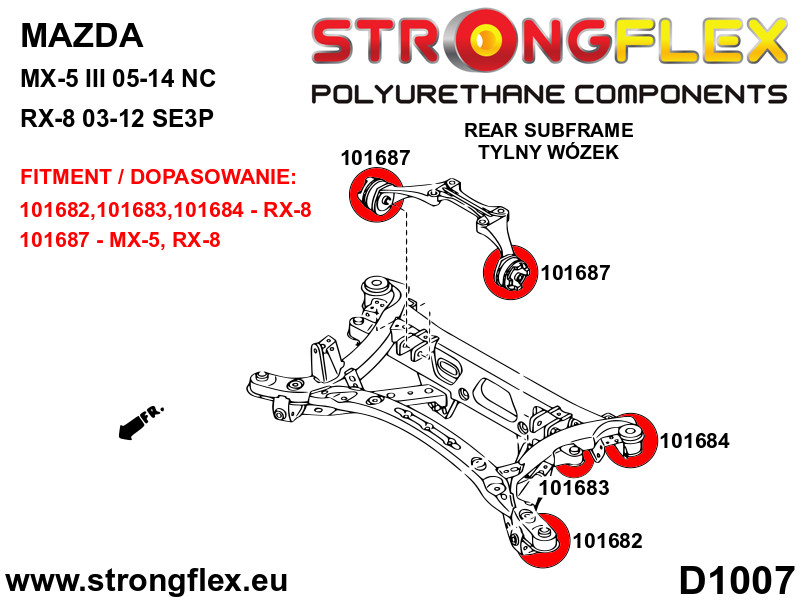

• D1007

Notes

• There are two heights of the rear anti roll bar bushing, 101681 35mm and 101706 27mm.
  Please check the height of the bushing before placing order.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 34

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
