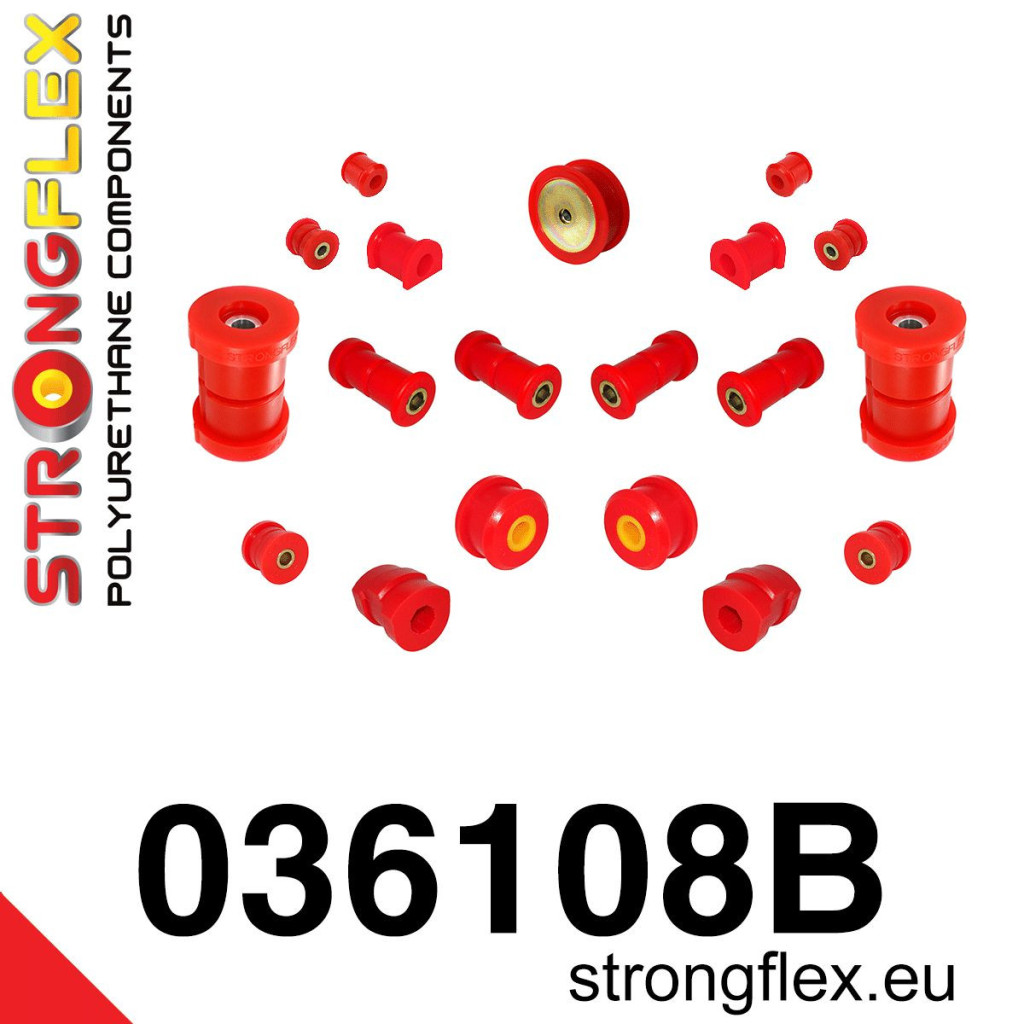

Reference: 036108B
Product name: Full suspension bush kit
Fits to:
- BMW 3 III (93-00) E36 Compact
Include:
- 2x 031195B: Front lower arm bush - centric 60mm
or - 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
or - 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
or - 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT
- 2x 031183B: Front anti roll bar bush
- 0/2x 031525B: Front anti roll bar link bush
- 2x 031415B: Rear beam mount bush
- 4x 031314B: Rear trailing arm bush
or - 4x 031860B: Rear trailing arm bush - eccentric
- 2x 031313B: Rear anti roll barbush

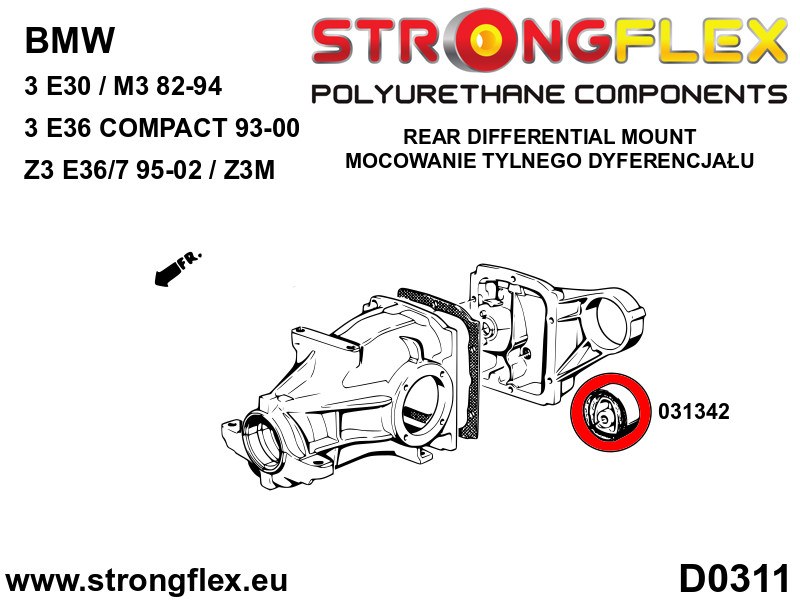

- 1x 031342B: Rear diff mounting bush
- 2x 031789B: Rear anti roll bar link to anti roll bar bush
- 2x 031790B: Rear anti roll bar link to arm bush
Diagrams:

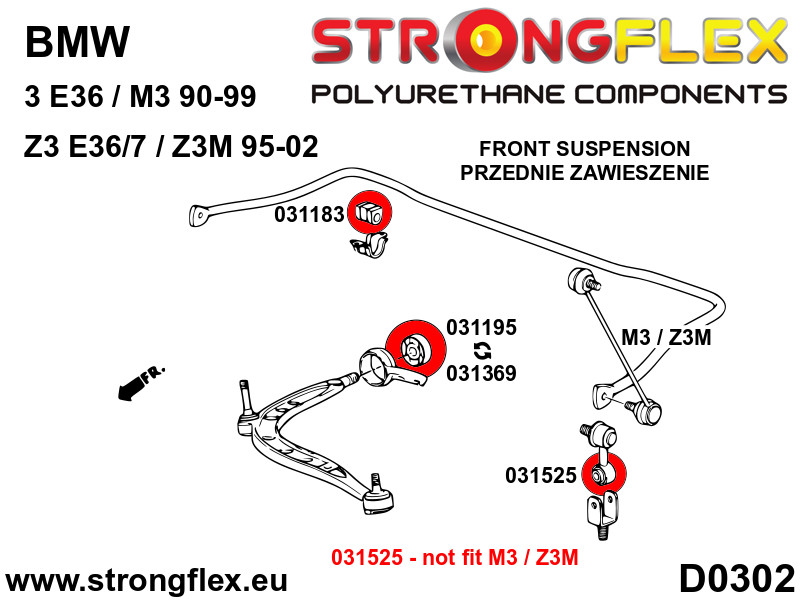

- D0302

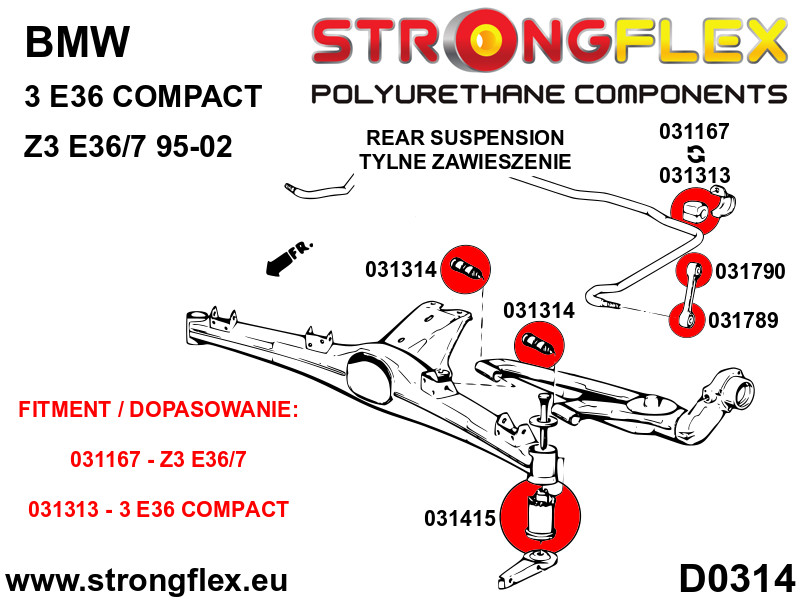

- D0314

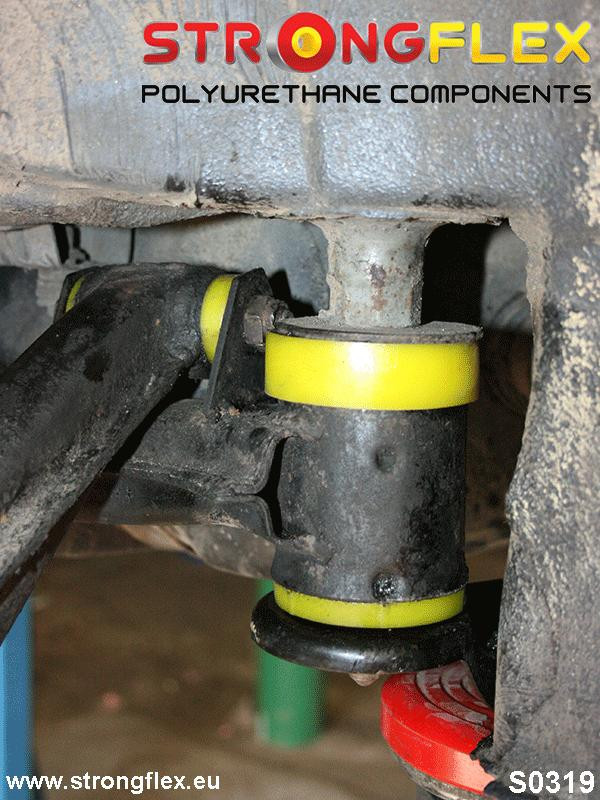

- S0319

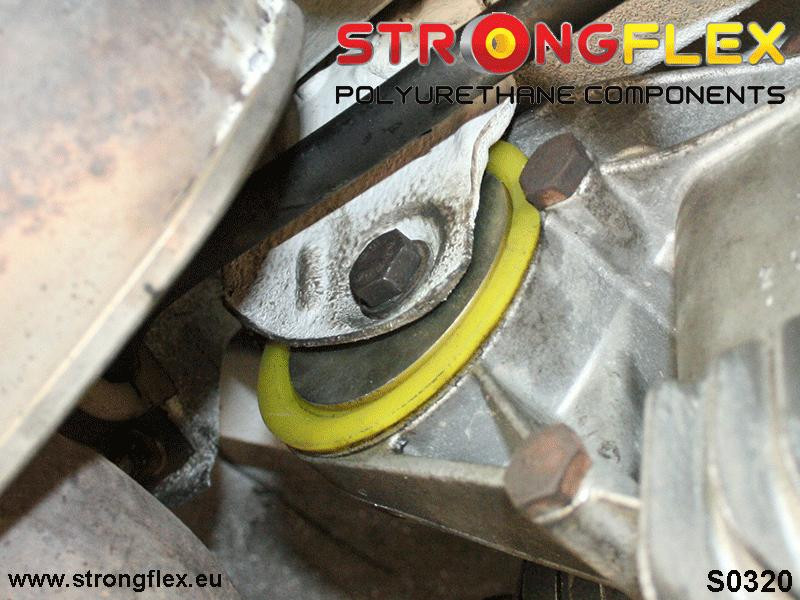

- S0320

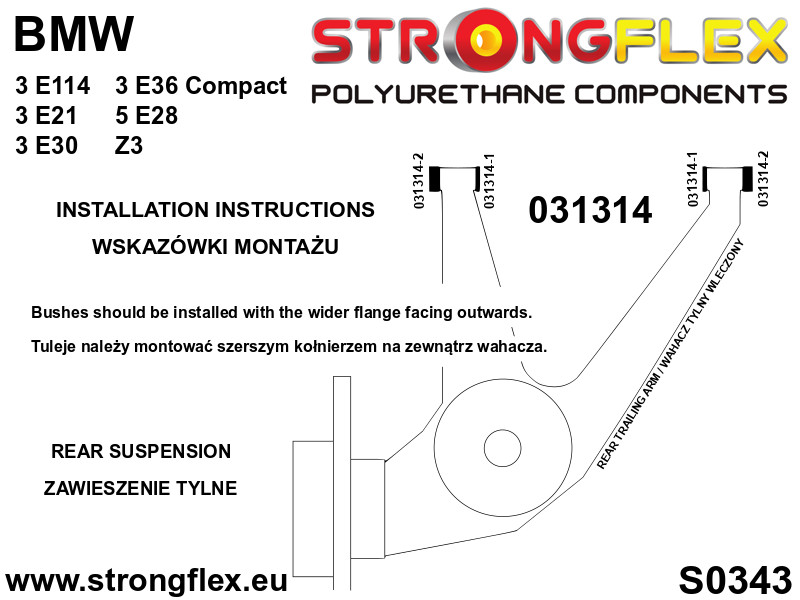

- S0343
Notes
- Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 and Z3M models.
- Front wishbone bush - rear:
031195 - centric 60mm
031369 - eccentric 60mm
031737 - centric 60mm E46 wishbone
031738 - eccentric 60mm E46 wishbone
- Rear Control Arm Bushing:
031314 - Standard centric bushings
031860 - Custom eccentric bushings
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 17/19
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
