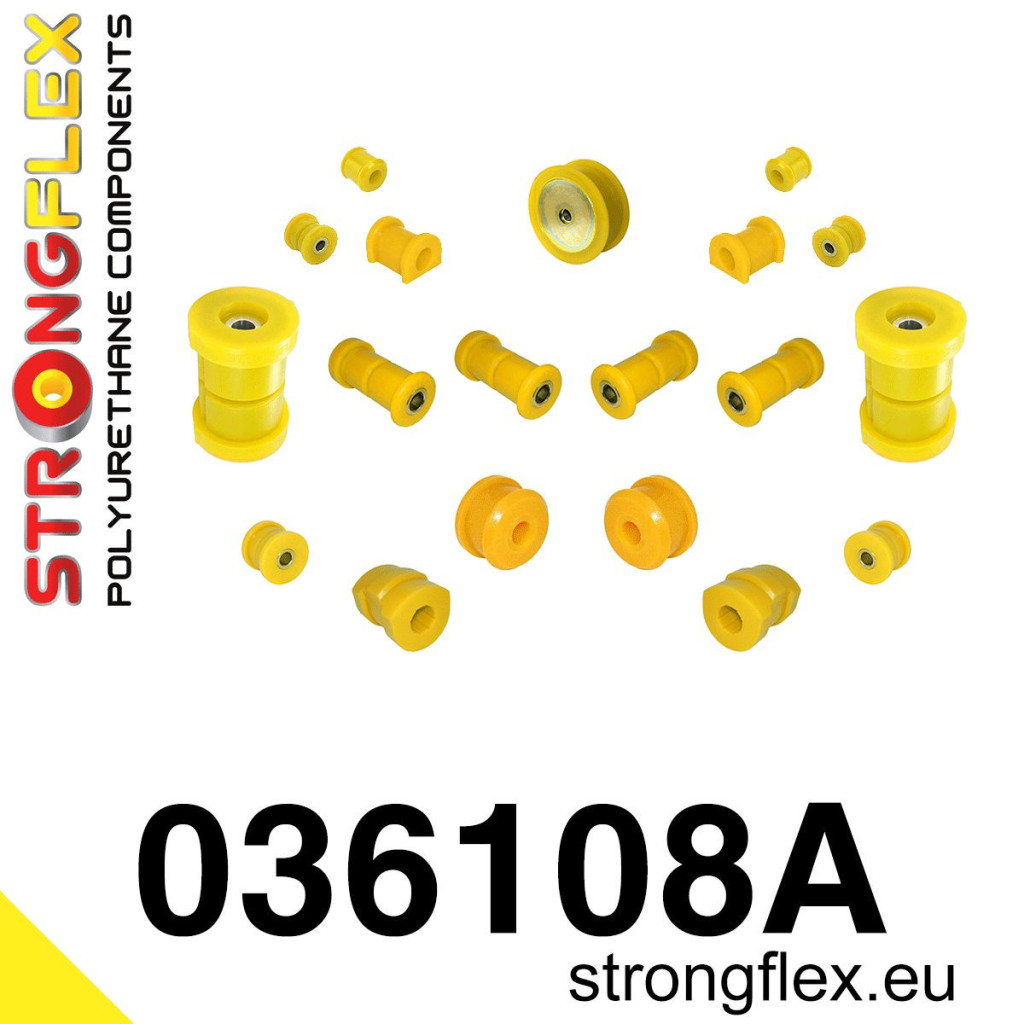

Reference: 036108A
Product name: Full suspension bush kit SPORT
Fits to:
- BMW 3 III (93-00) E36 Compact
Include:
- 2x 031195A: Front lower arm bush - centric 60mm SPORT
or - 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
or - 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
or - 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT
- 2x 031183A: Front anti roll bar bush SPORT
- 0/2x 031525A: Front anti roll bar link bush SPORT
- 2x 031415A: Rear beam mount bush SPORT
- 4x 031314A: Rear trailing arm bush SPORT
or - 4x 031860A: Rear trailing arm bush - eccentric SPORT
- 2x 031313A: Rear anti roll bar bush SPORT

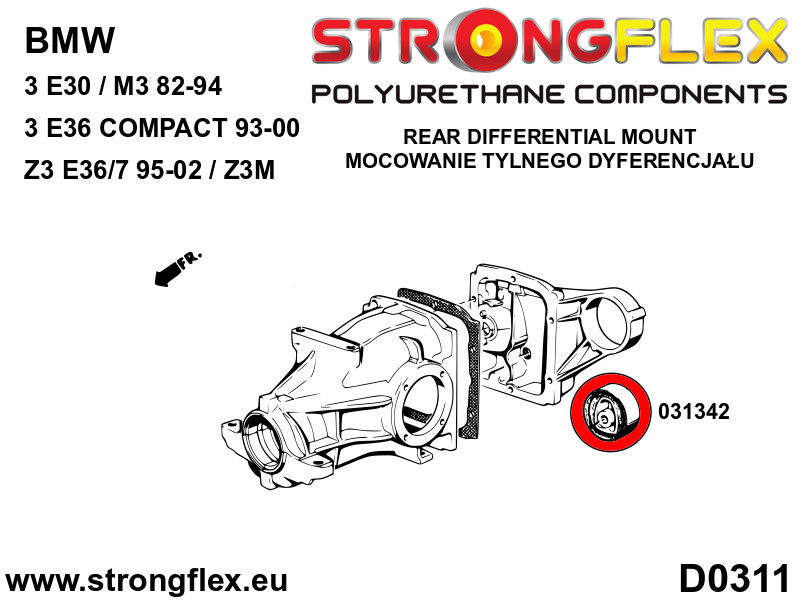

- 1x 031342A: Rear diff mounting bush SPORT
- 2x 031789A: Rear anti roll bar link to anti roll bar bush SPORT
- 2x 031790A: Rear anti roll bar link to arm bush SPORT
Diagrams:

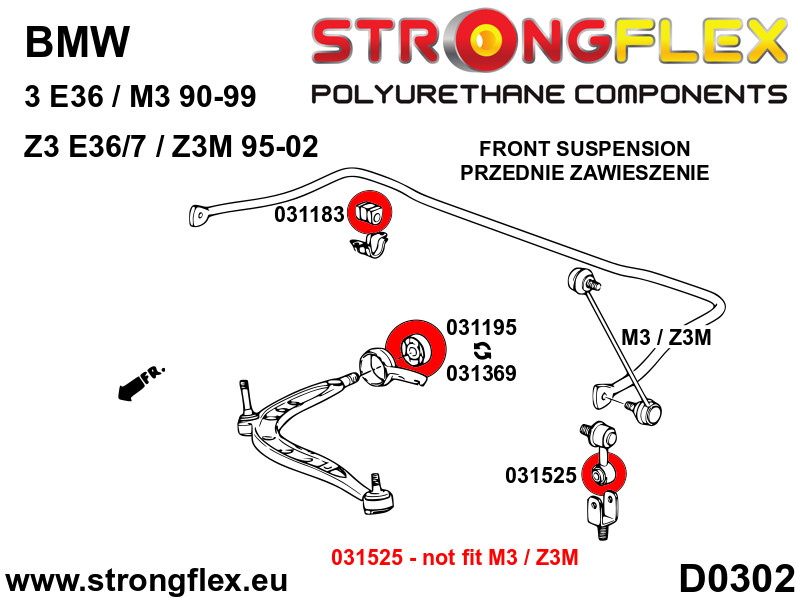

- D0302

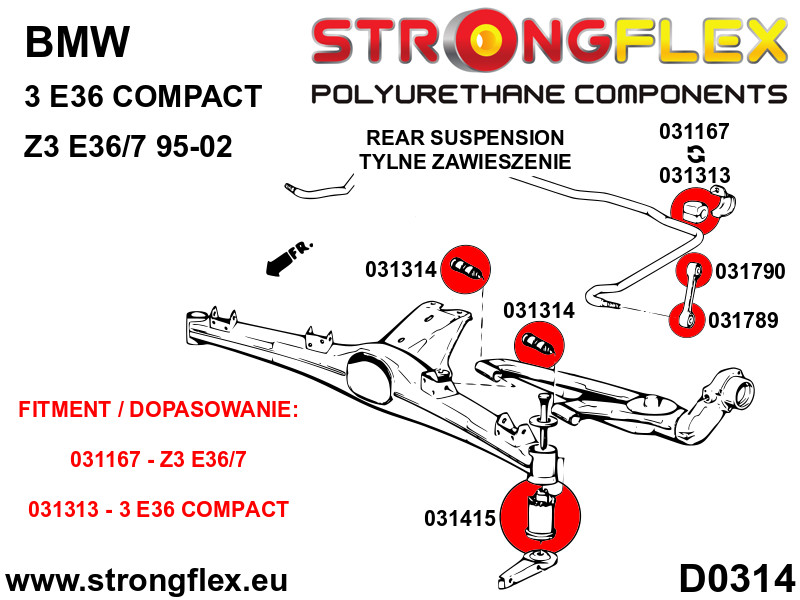

- D0314

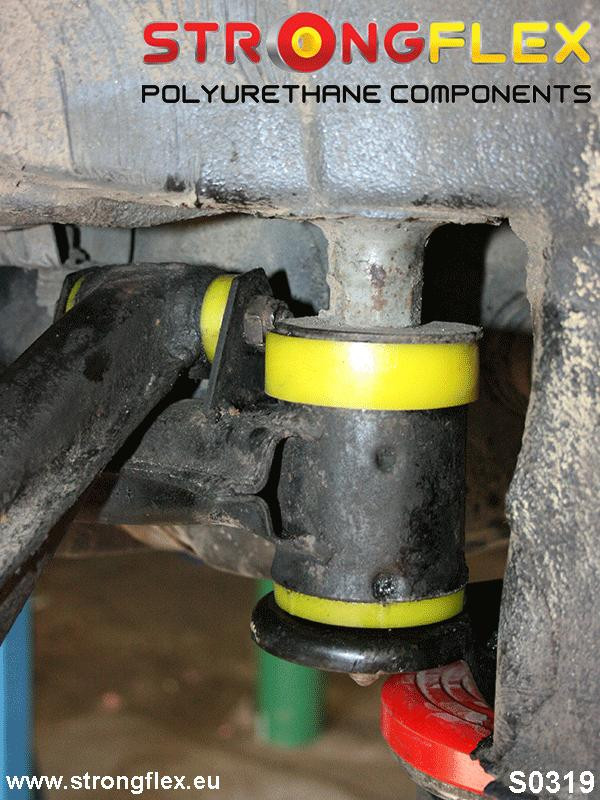

- S0319

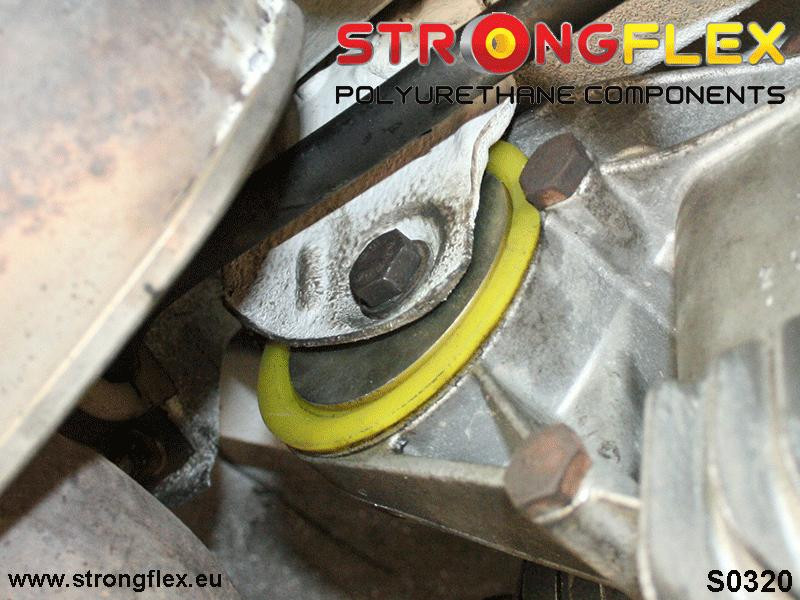

- S0320

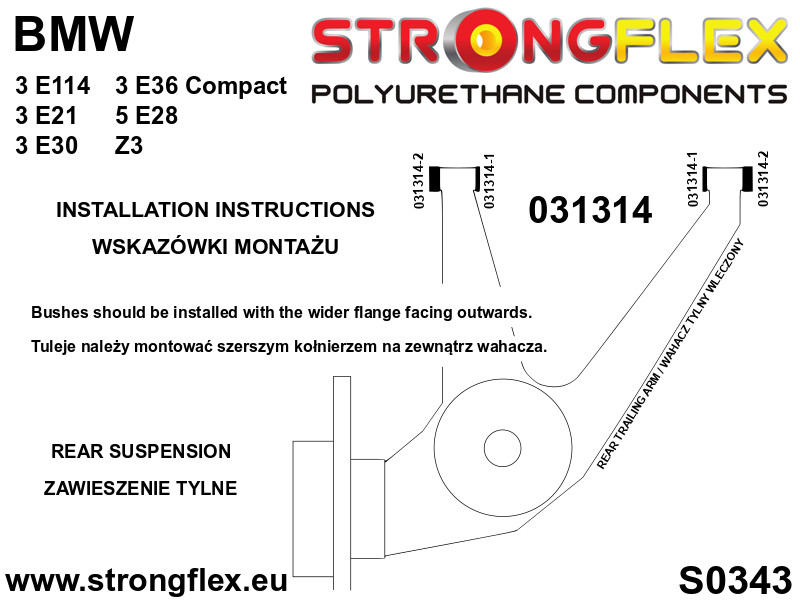

- S0343
Notes
- Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 and Z3M models.
- Front wishbone bush - rear:
031195 - centric 60mm
031369 - eccentric 60mm
031737 - centric 60mm E46 wishbone
031738 - eccentric 60mm E46 wishbone
- Rear Control Arm Bushing:
031314 - Standard centric bushings
031860 - Custom eccentric bushings
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 17/19
Hardness: 90Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
