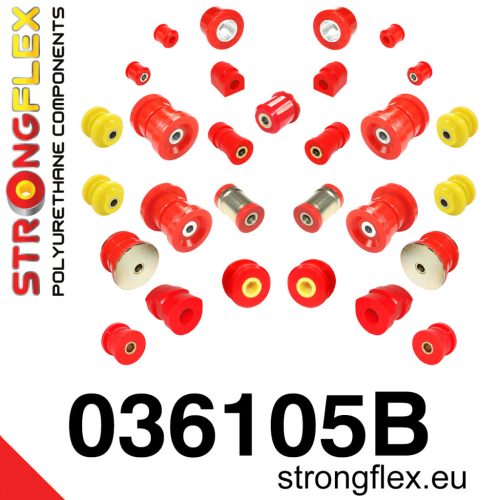

Reference: 036105B
Product name: Full suspension bush kit
Fits to:
- BMW 3 III (90-99) E36
- BMW 3 III (92-99) E36 M3
Include:
- 2x 031195B: Front lower arm bush - centric 60mm
or - 2x 031369A: Front lower arm bush - eccentric 60mm SPORT
or - 2x 031737A: Front lower arm bush - centric 60mm E46 wishbone SPORT
or - 2x 031738A: Front lower arm bush - eccentric 60mm E46 wishbone SPORT
- 2x 031183B: Front anti roll bar bush
- 0/2x 031525B: Front anti roll bar link bush
- 2x 031173B: Rear trailing arm front bush
- 2x 031174B: Rear control arm upper inner
- 4x 031175A: Rear arm - outer bush SPORT
- 2x 031176B: Rear control arm lower inner
- 2x 031167B: Anti roll bar bush front / rear
- 2x 031789B: Rear anti roll bar link to anti roll bar bush
- 2x 031790B: Rear anti roll bar link to arm bush
- 2x 031350B: Rear subframe - front bush
- 2x 031351B: Rear subframe - rear bush
- 1x 031750B: Rear differential front mount bush
or - 1x 031736B: Rear differential front mount bush M3 EVO
- 2x 031587B: Rear differential rear mount bush
Diagrams:

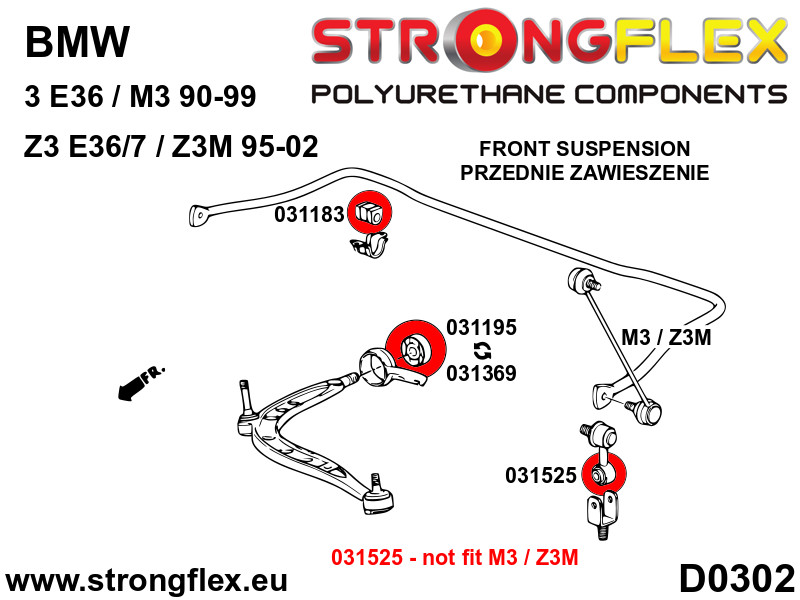

- D0302

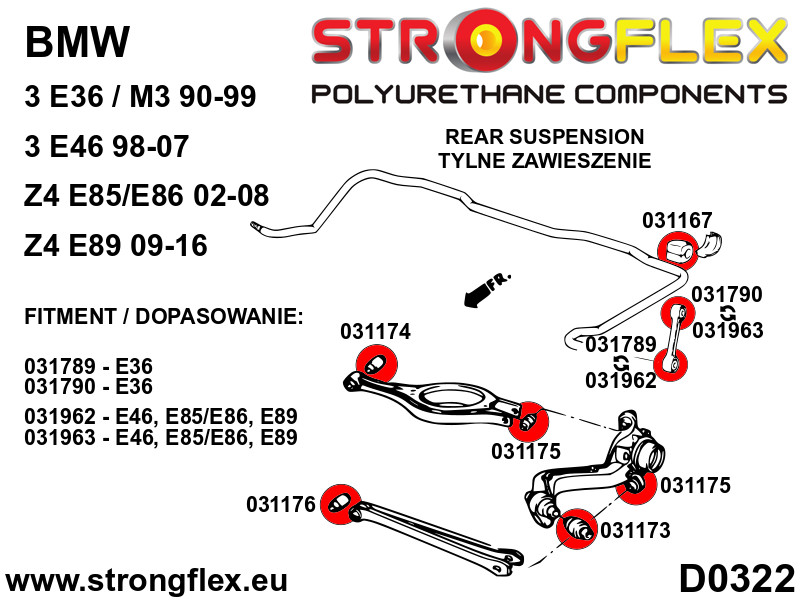

- D0322

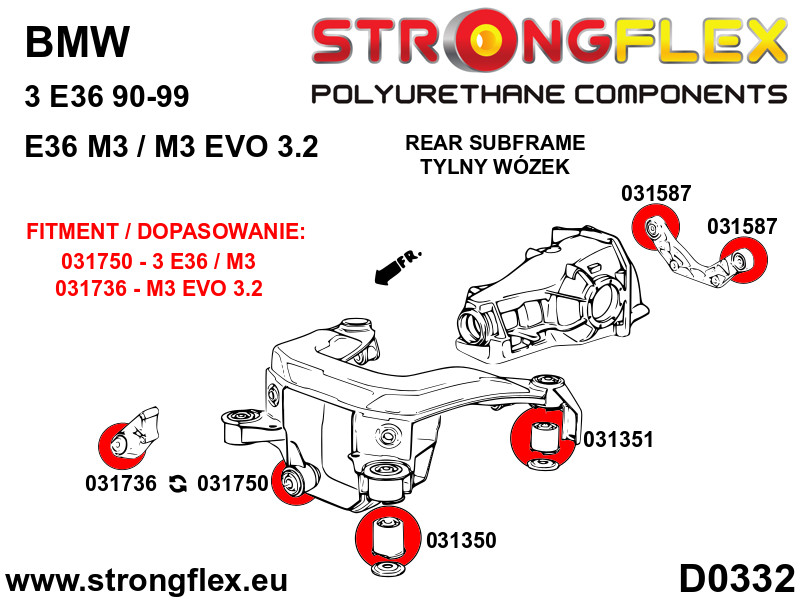

- D0332

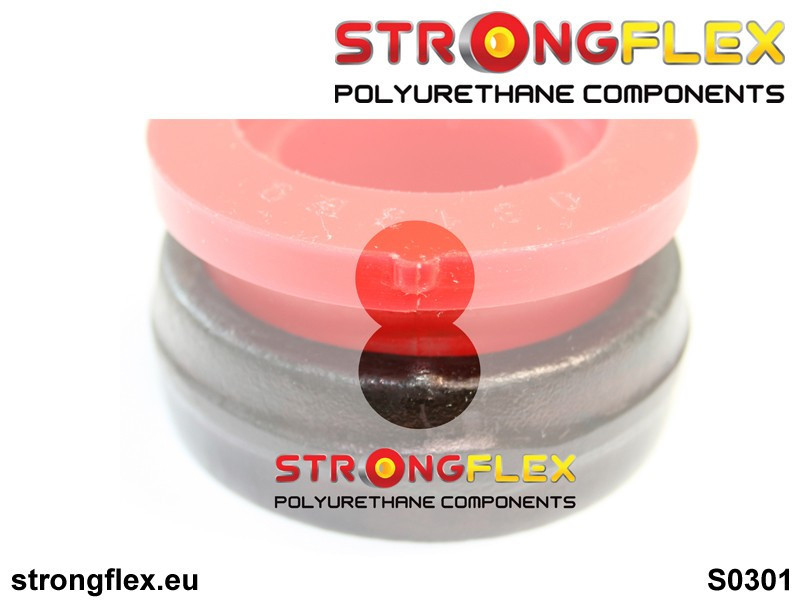

- S0301
- S0306
Notes
- Bushing 031525 only fits the link mounted to the wishbone. Does not fit the link connecting the stabilizer to the shock absorber. Does not fit E36 M3 and Z3M models.
- Front wishbone bush - rear:
031195 - centric 60mm
031369 - eccentric 60mm
031737 - centric 60mm E46 wishbone
031738 - eccentric 60mm E46 wishbone
- Rear differential bush - front:

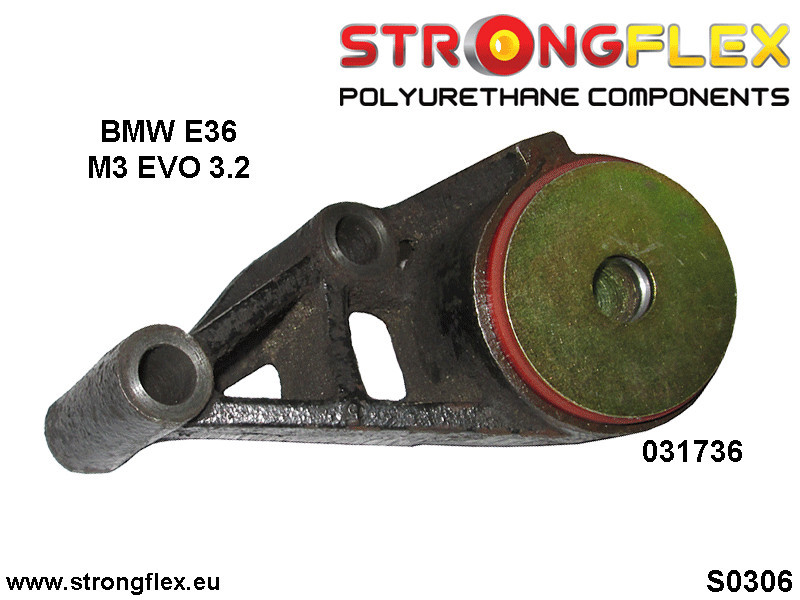

If you have an E36 M3 EVO 3.2 model where the differential is mounted on a separate bracket, choose bushes 031736. For other E36 models, bush 031750 fits. See the attached photo S0306.
Required/car: 1
Pcs / prod: 1
Pcs / KIT: 27/29
Hardness: 80Sha
Material: POLIURETHANE (PUR/PU)
To every product we add grease!
