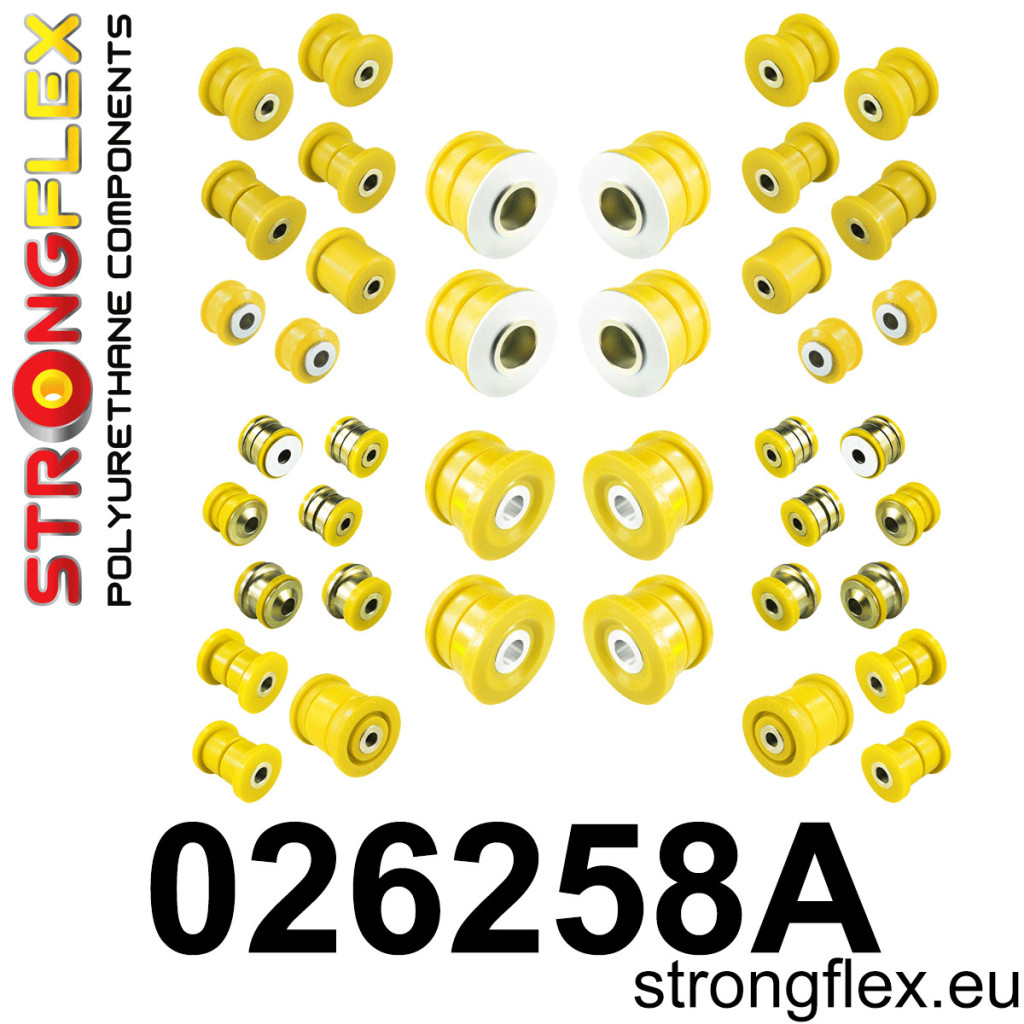

026258A: Full suspension polyurethane bush kit SPORT

Reference: 026258A

Product name: Full suspension polyurethane bush kit SPORT

Fits to:

• Audi Q7 / SQ7 4L (05-15)

• Porsche Cayenne I (02-10)

• Volkswagen Touareg I (02-10)

Include:

• 4x 022011A: Front upper arm bush SPORT
• 2x 022012A: Front lower wishbone bush – inside SPORT

• 2x 022013A: Front lower wishbone bush – outside SPORT
  or
• 2x 022014A: Front lower wishbone bush – outside SPORT

• 2x 022015A: Front lower wishbone bush – rear 60mm SPORT
  or
• 2x 022016A: Front lower wishbone bush – rear 72mm SPORT

• 4x 022018A: Front anti roll bar bush SPORT
• 4x 022019A: Front subframe bush SPORT
• 2x 022020A: Rear lower arm – front bush SPORT
• 2x 022021A: Rear lower arm – rear bush SPORT
• 2x 022022A: Rear steering knuckle bush SPORT
• 2x 022023A: Rear upper arm bush – inside SPORT
• 2x 022024A: Rear upper arm bush – outside SPORT
• 2x 022025A: Rear upper arm bush – inside SPORT
• 2x 022026A: Rear upper arm bush – outside SPORT
• 2x 022027A: Rear rod bush - inside SPORT
• 2x 022028A: Rear rod bush – outside SPORT
• 4x 022030A: Rear subframe bush SPORT
• 6x 022031A: Diff mount bush SPORT
• 2x 022032A: Steering rack bush SPORT

Diagrams:

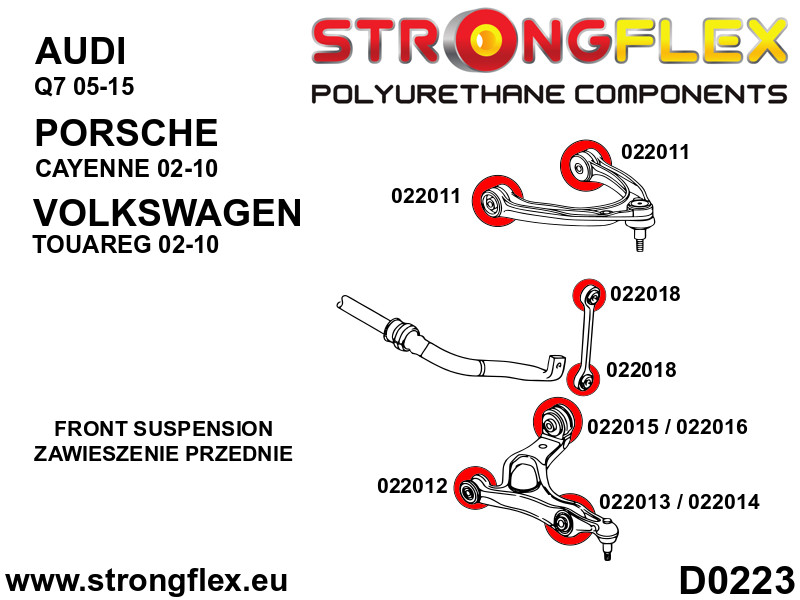

• D0223

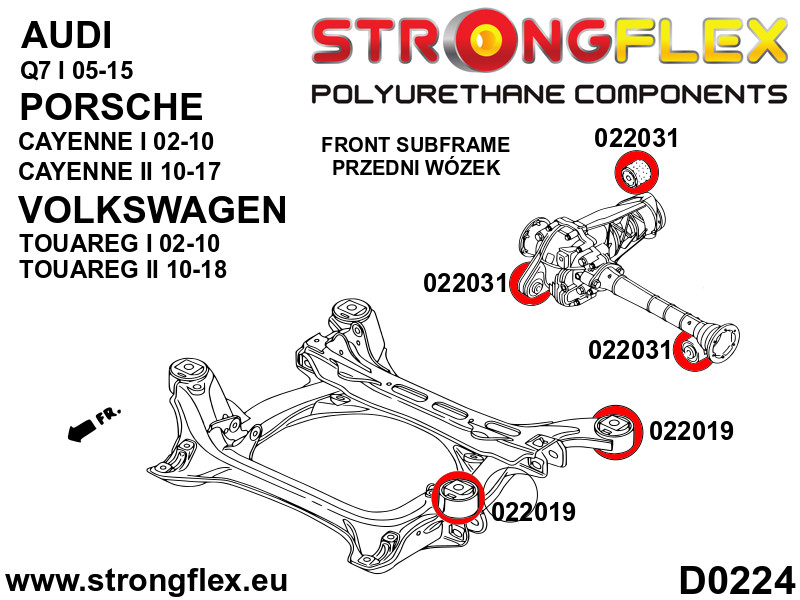

• D0224

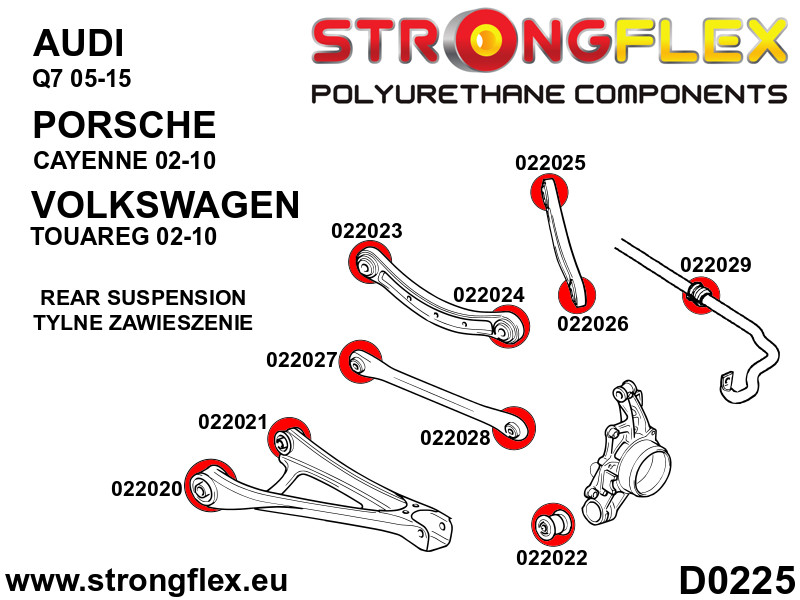

• D0225

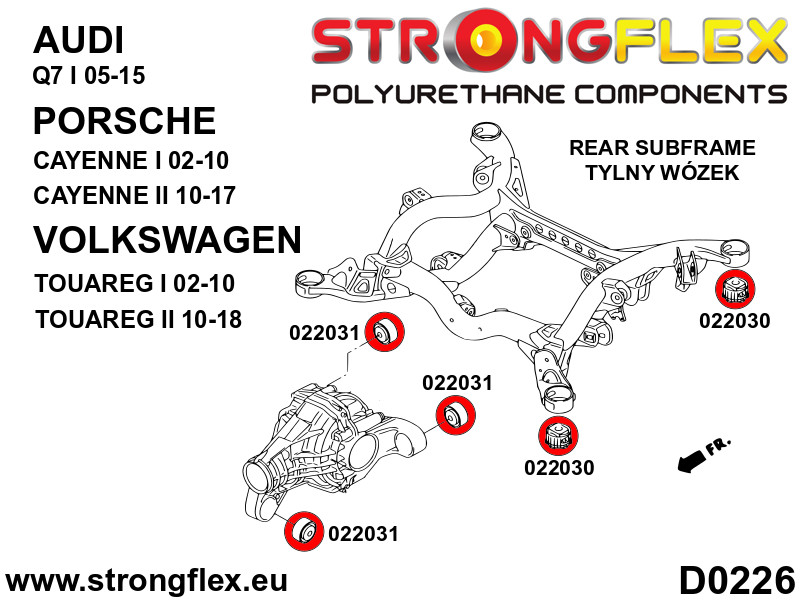

• D0226

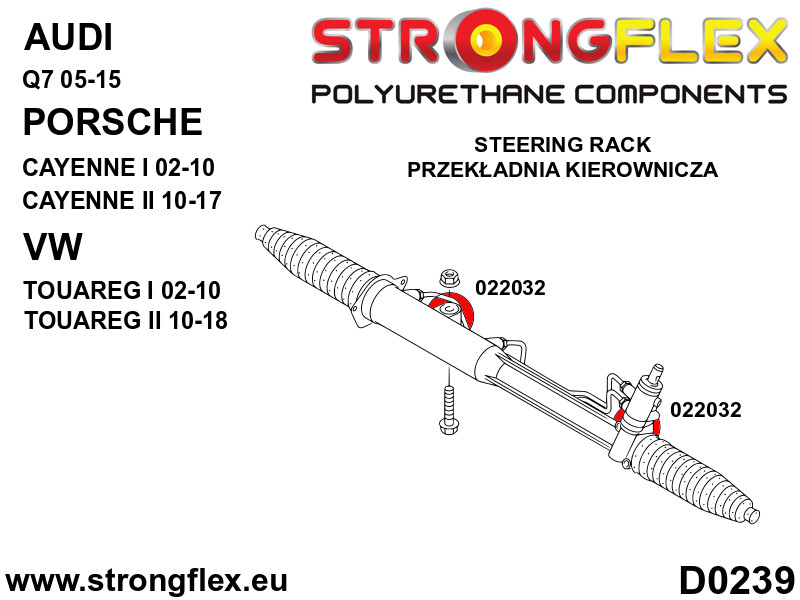

• D0239

Notes

• The set does not include the stabilizer bushing.

• Front Lower Control Arm Bushing - Outer:
  022013 - Steel Control Arm
  022014 - Aluminum Control Arm


• Front Lower Control Arm Bushing - Rear:
  022015 - Diameter 60mm
  022016 - Diameter 72mm

  Before purchasing, check the type of control arm and the diameter of the rear bushing.

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 48

Hardness: 90Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
